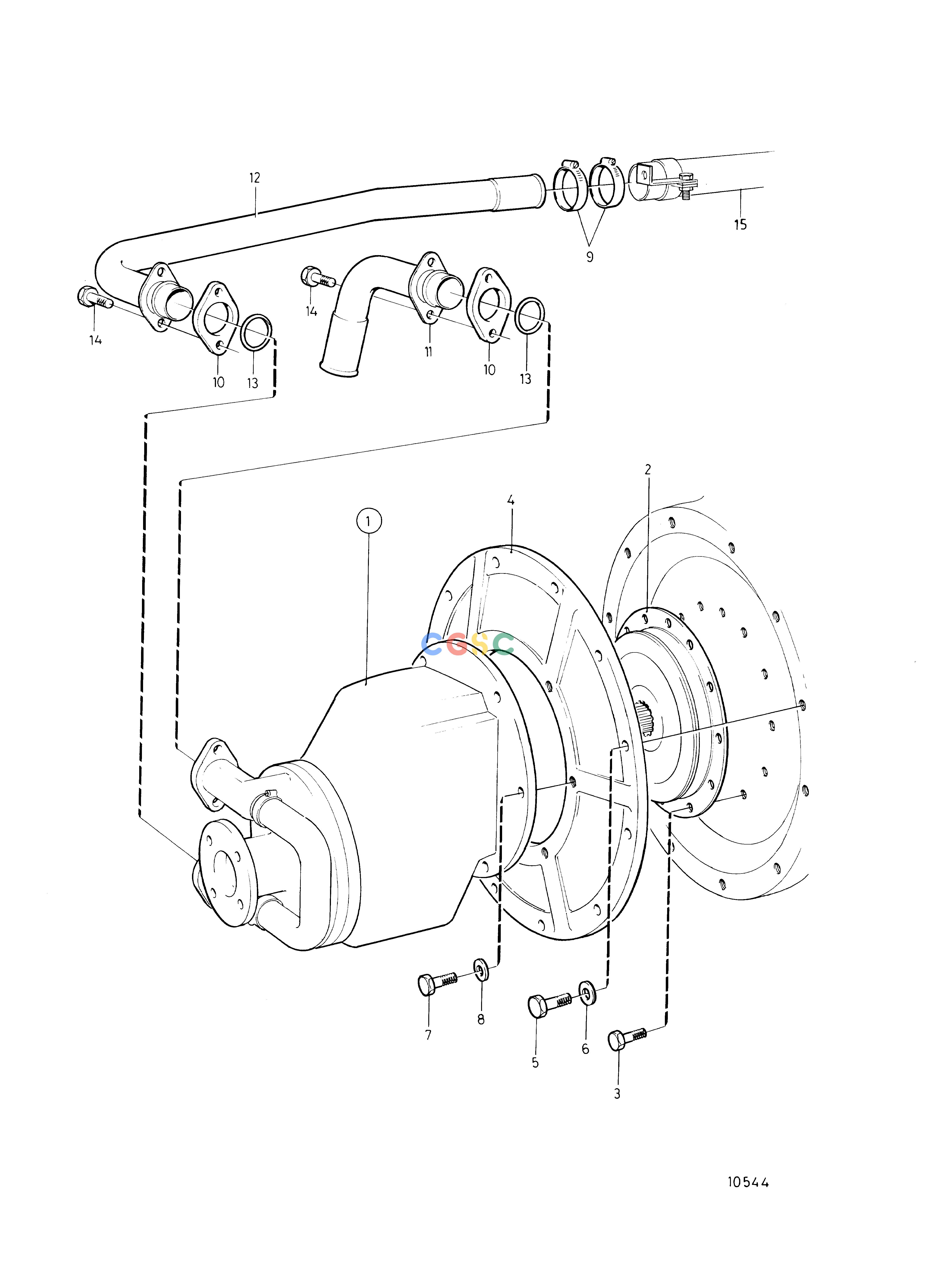

沃尔沃零件查询KAD42A; KAMD42A; HS1A; MS5BTransmissionsConnecting Components Reverse Gear MS5BEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
807 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
854906
|
[1] |
Transmission
|
|
| 1. |
|
|
|
See group 4B
|
| 1. |
854907
|
[1] |
Transmission
|
Ratio 2,40:1
|
| 2. |
854753
|
[1] |
Vibration damper
|
|
| 3. |
946173
|
[9] |
Flange screw
|
|
| 4. |
829489
|
[1] |
Cap
|
|
| 5. |
946752
|
[11] |
Flange screw
|
|
| 6. |
941908
|
[11] |
Spring washer
|
Early type
|
| 7. |
946752
|
[6] |
Flange screw
|
|
| 8. |
941908
|
[6] |
Spring washer
|
Early type
|
| 9. |
961669
|
[2] |
Hose clamp
|
|
| 10. |
854184
|
[2] |
Flange
|
|
| 11. |
854758
|
[1] |
Coolant pipe
|
|
| 12. |
854759
|
[1] |
Coolant pipe
|
|
| 13. |
925062
|
[2] |
O-ring
|
|
| 14. |
942001
|
[4] |
Hex. socket screw
|
|
| 15. |
860640
|
[1] |
Hose
|
Reverse gear-sea water pump
|
