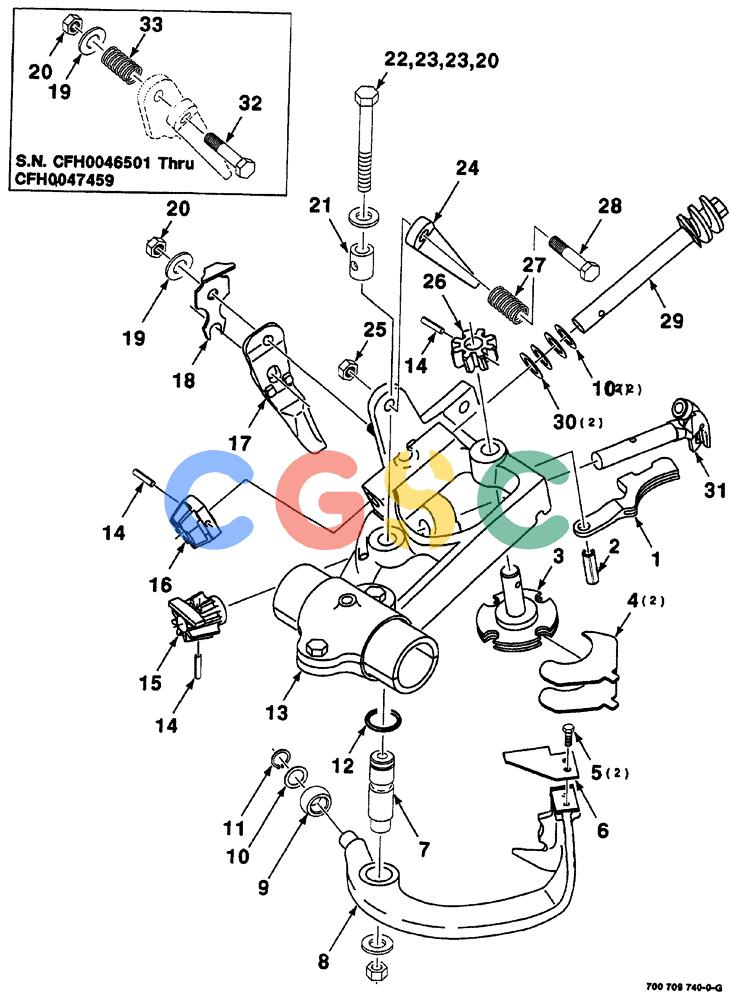

凯斯零件查询(8555) - CASE IH RECTANGULAR BALER (1/90-12/99) (06-08) - KNOTTER HEAD ASSEMBLY - TWINE (RASSPE), 700709740 KNOTTER HEAD ASSEMBLY COMPLETE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
669 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
700709740
|
[1] |
KNOTTER
|
CAS
HEAD ASSEMBLY, complete
|
| 1. |
700707903
|
[1] |
TWINE
|
CAS
HOLDER Superseded by part number: 700721692
|
| 2. |
700707904
|
[1] |
BOLT,Spcl
|
CAS
PIN spring
|
| 3. |
700710893
|
[1] |
DISC
|
CAS
ASSEMBLY twine Superseded by part number: 700721690
|
| 4. |
700710899
|
[2] |
DISC
|
CAS
KNOTTER cleaner
|
| 5. |
700707886
|
[2] |
BOLT,M4 x 10
|
CAS
M4 x 10
|
| 6. |
700707884
|
[1] |
KNIFE
|
CAS
knife Superseded by part number: 700721691
|
| 7. |
700710907
|
[1] |
PIVOT
|
CAS
|
| 8. |
700710909
|
[1] |
KNIFE
|
CAS
ARM ASSEMBLY
|
| 9. |
700707887
|
[1] |
ROLLER
|
CAS
spherical
|
| 10. |
7852593
|
[3] |
SHIM,15mm ID x 21mm OD x 1mm Thk
|
CAS
machinery, 5/8 x 20 gauge Superseded by part number: 84007145
|
| 11. |
700707888
|
[1] |
CIRCLIP
|
CAS
Superseded by part number: 9838808
|
| 12. |
700710903
|
[1] |
O-RING
|
CAS
|
| 13. |
700710900
|
[1] |
FRAME
|
CAS
knotter
|
| 14. |
700710910
|
[3] |
PIN
|
CAS
spirol
|
| 15. |
700710906
|
[1] |
PINION
|
CAS
|
| 16. |
700710904
|
[1] |
GEAR
|
CAS
|
| 17. |
700710894
|
[1] |
JAW
|
CAS
cam
|
| 18. |
700710895
|
[1] |
SPRING
|
CAS
|
| 19. |
496-21034
|
[2] |
WASHER,11/32" x 11/16" x 0.89", HDN
|
CAS
Superseded by part number: 86637953
|
| 20. |
829-1408
|
[3] |
NUT,Hex, M8 x 1.25, Cl 10.9
|
CAS
Superseded by part number: 87778059, 43362
|
| 21. |
700710901
|
[1] |
BUSHING
|
CAS
|
| 22. |
700710902
|
[1] |
BOLT
|
CAS
|
| 23. |
700710908
|
[2] |
SPACER
|
CAS
|
| 24. |
700710898
|
[1] |
LEVER
|
CAS
|
| 25. |
825-1410
|
[1] |
NUT,M10, Cl 8
|
CAS
Superseded by part number: 100016
|
| 26. |
700707897
|
[1] |
GEAR
|
CAS
PINION worm
|
| 27. |
700718642
|
[1] |
SPRING
|
CAS
compression
|
| 28. |
814-10055
|
[1] |
BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8
|
CAS
Superseded by part number: 73161469
|
| 29. |
700707900
|
[1] |
SHAFT
|
CAS
worm
|
| 30. |
7852163
|
[2] |
BUSHING
|
CAS
machinery bushing , 5/8 x 20 gauge
|
| 31. |
700707906
|
[1] |
HOOK
|
CAS
bill
|
| 32. |
700707892
|
[1] |
BOLT
|
CAS
|
| 33. |
700710896
|
[1] |
SPRING
|
CAS
compression Superseded by part number: 700718642, 100016, 73161469
|
