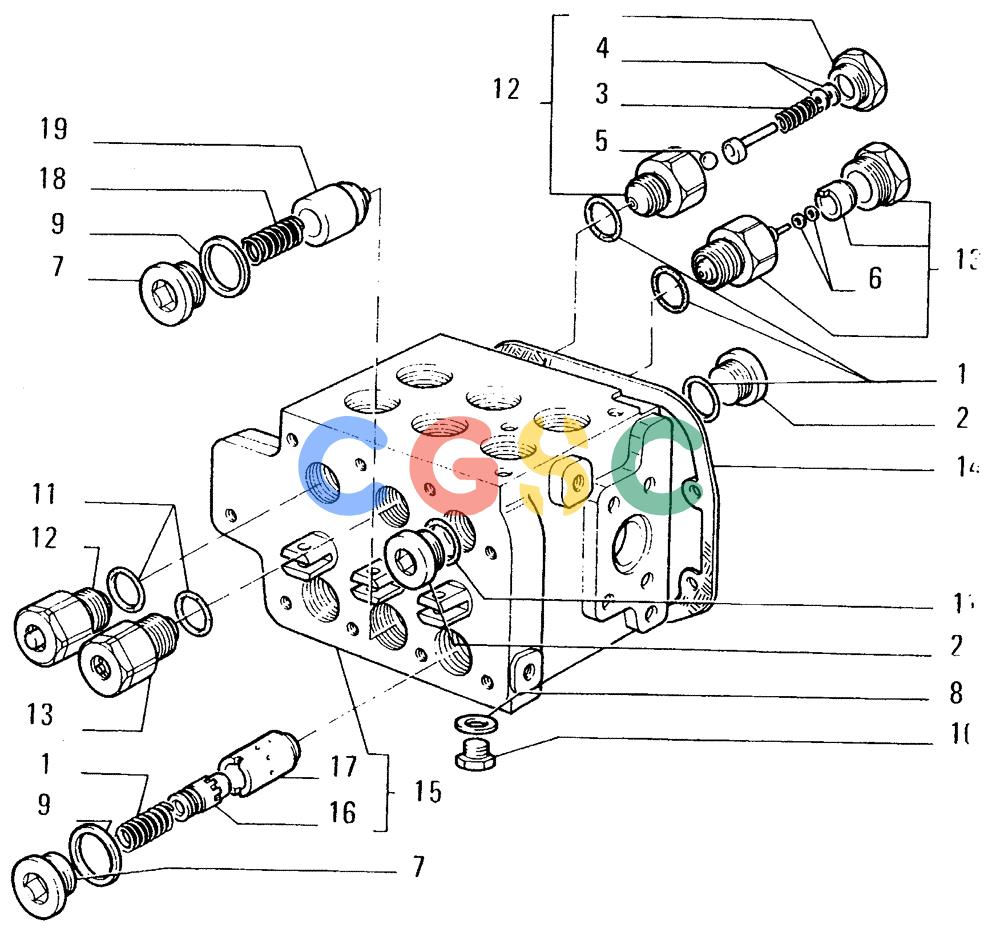

纽荷兰零件查询(FD14E) - CRAWLER DOZER (3.4360[003]) - EQUIPMENT CONTROL VALVE-COMPONENTS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
842 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 591107 | [1] | SPACER | MKTSPRING Superseded by part number: 75128817, 75128817, 80591107 |
| 2. | 8295995 | [2] | PLUG | LEC |
| 3. | 8280452 | [1] | SPRING | LEC |
| 4. | 8280454 | [1] | SHIM,0.2mm Thk | LEC |
| 4. | 8280455 | [1] | SHIM,0.5mm Thk | LEC |
| 4. | 8280456 | [1] | SHIM,1mm Thk | LEC |
| 5. | 20063470 | [1] | BALL | TTF7,938 Superseded by part number: 86642304 |
| 6. | 8280464 | [1] | SHIM,0.2mm Thk | LEC |
| 6. | 8280465 | [1] | SHIM,0.5mm Thk | LEC |
| 6. | 8280466 | [1] | SHIM,1mm Thk | LEC |
| 7. | 10278301 | [3] | PLUG,M28 x 1.5 x 11, Brass | BAS Superseded by part number: 10278311 |
| 8. | 10296160 | [3] | SEALING WASHER,M12.2 x 18 x 1, Copper | MKTGASKET 12,2x18 Superseded by part number: 4858607 |
| 9. | 10296260 | [3] | SEAL,28.4mm ID x 36mm OD x 1.5mm Thk | TTFWASHER, SEALING, M28.4 x 36 x 1.5 |
| 10. | 11903271 | [3] | PLUG | MKT12x1,25x8 Superseded by part number: 11903211 |
| 11. | 14457680 | [6] | O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro | BHB0-RING -118, 70 Duro, .862" ID x .103" Thk Superseded by part number: 14457681 |
| 12. | 79058636 | [2] | HYDRAULIC VALVE | LECRELIEF VALVE - ASSEMBLY |
| 13. | 79058637 | [2] | HYDRAULIC VALVE | LECVALVE - ASSEMBLY |
| 14. | 79072811 | [1] | SEAL | LECSEAL Superseded by part number: 79113980 |
| 15. | 79074913 | [1] | BODY | LEC- ASSEMBLY Superseded by part number: 79110012 |
| 16. | 79041704 | [1] | PLUNGER | LEC |
| 17. | 79045697 | [1] | BUSHING | LEC |
| 18. | 8295983 | [2] | SPRING | LEC |
| 19. | 8295982 | [2] | HYDRAULIC VALVE | LECVALVE |
