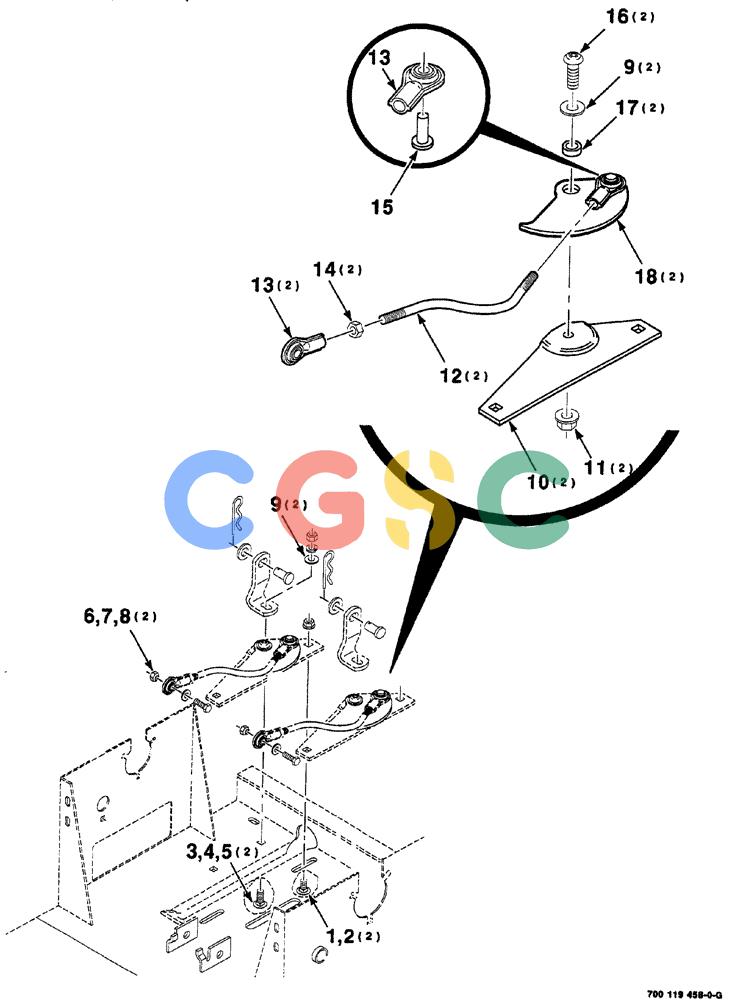

| 1. |
433-612
|
[2] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5
|
CAS
Superseded by part number: 280430
|
| 2. |
231-5146
|
[2] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 3. |
434-616
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 80280503
|
| 4. |
492-11038
|
[2] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 5. |
425-106
|
[2] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 6. |
413-516
|
[2] |
BOLT,Hex, 5/16" - 18 x 1", Gr 5
|
CAS
Superseded by part number: 9635884, 72187198
|
| 7. |
496-21034
|
[2] |
WASHER,11/32" x 11/16" x 0.89", HDN
|
CAS
Superseded by part number: 86637953
|
| 8. |
230-4115
|
[2] |
LOCK NUT,5/16"-18, GA
|
CAS
lock hex top, 5/16-18, GR/B Superseded by part number: 230-4145
|
| 9. |
496-11041
|
[4] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
hardened, plain, 3/8 Superseded by part number: 86632588
|
| 10. |
700119459
|
[2] |
MOUNTING PARTS
|
CAS
FINGER
|
| 11. |
232-5316
|
[2] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
lock hex flange top, 3/8-16, GR/G Superseded by part number: 86521609
|
| 12. |
700119462
|
[2] |
ROD
|
IH
ROD
|
| 13. |
700703692
|
[3] |
ADJUSTMENT ROD
|
L
END rod
|
| 14. |
425-115
|
[2] |
NUT,5/16"-24, G5
|
CAS
Superseded by part number: 86629539
|
| 15. |
700709157
|
[1] |
RIVET
|
CAS
flat, 5/16 x 3/4
|
| 16. |
7884414
|
[2] |
CAPSCREW,Button Hd, 3/8" - 16 x 1", Gr 8
|
CAS
cap hex socket head, 3/8-16
|
| 17. |
6553614
|
[2] |
SPACER
|
CAS
|
| 18. |
700120654
|
[2] |
FINGER
|
IH
ASSEMBLY twine, Includes: Ref. 13 and 15
|
