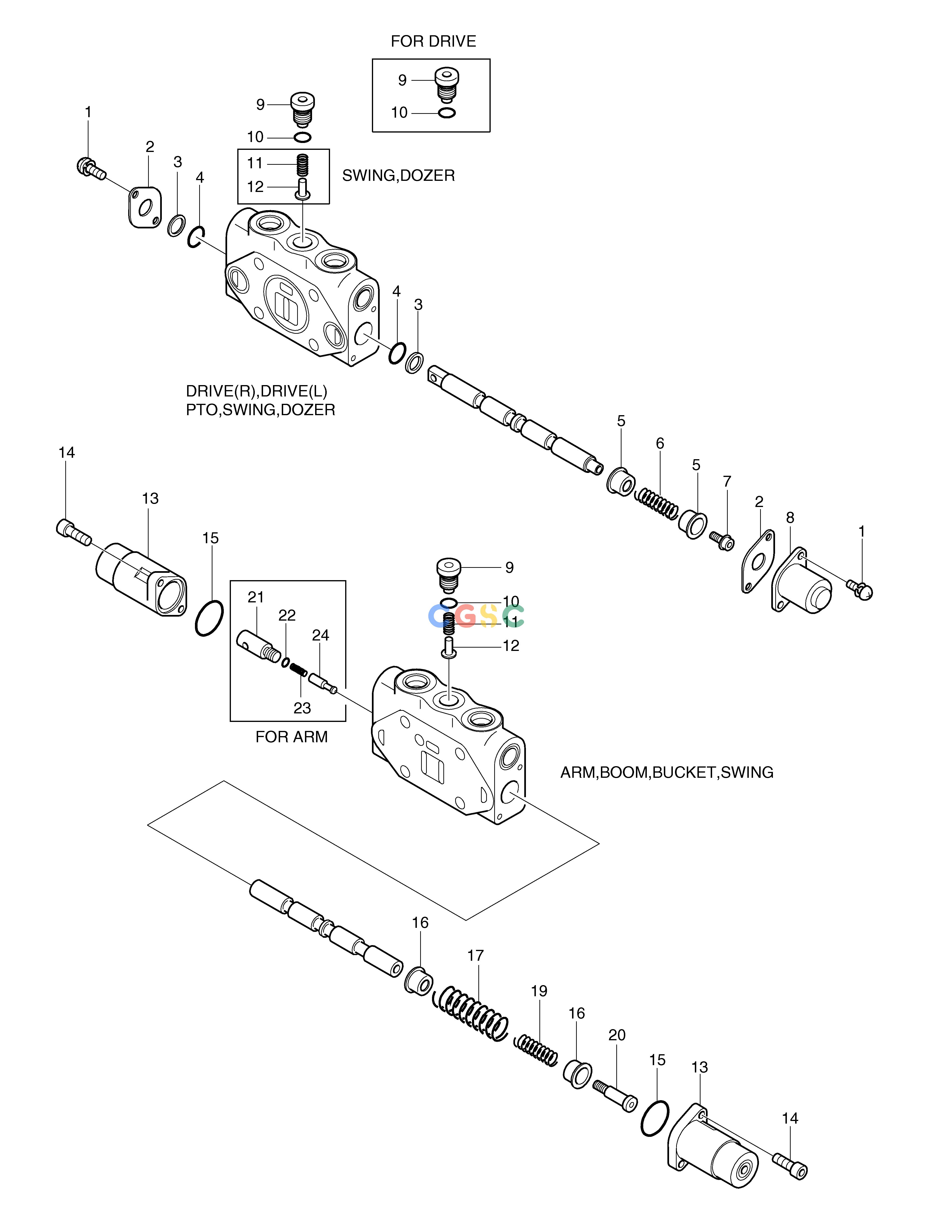

斗山零件查询CONTROL VALVE(2) SOLAR 030 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
624 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
82406-05012
|
[4] |
SCREW;PIN HEAD
|
|
| 10. |
86711-01010
|
[1] |
O-RING
|
|
| 11. |
05062-11800
|
[1] |
SPRING
|
|
| 12. |
05062-1170A
|
[1] |
PLUNGER
|
|
| 13. |
06277-1130B
|
[2] |
COVER
|
|
| 14. |
81446-05016
|
[4] |
BOLT;SOCKET HEAD
|
|
| 15. |
86781-00021
|
[2] |
O-RING
|
|
| 16. |
05062-11000
|
[2] |
HOLDER;SPRING
|
|
| 17. |
06200-1090A
|
[1] |
SPRING
|
|
| 19. |
06200-10500
|
[1] |
SPRING
|
|
| 2. |
05062-11200
|
[2] |
HOLDER;SEAL
|
|
| 20. |
06034-12300
|
[1] |
SPOOL;END
|
|
| 21. |
06188-10700
|
[1] |
SPOOL;END
|
|
| 22. |
86711-01006
|
[1] |
O-RING 1B P6
|
|
| 23. |
05295-10900
|
[1] |
SPRING
|
|
| 24. |
05267-1071A
|
[1] |
PISTON
|
|
| 3. |
05062-11400
|
[2] |
RING;BACK UP
|
|
| 4. |
86710-02012
|
[2] |
O-RING 1A P12
|
|
| 5. |
05062-11000
|
[2] |
HOLDER;SPRING
|
|
| 6. |
05709-11200
|
[1] |
SPRING
|
|
| 7. |
81900-00028
|
[1] |
BOLT;FLANGE
|
|
| 8. |
05062-16300
|
[1] |
COVER;SPRING
|
|
| 9. |
06277-13200
|
[1] |
PLUG
|
|
