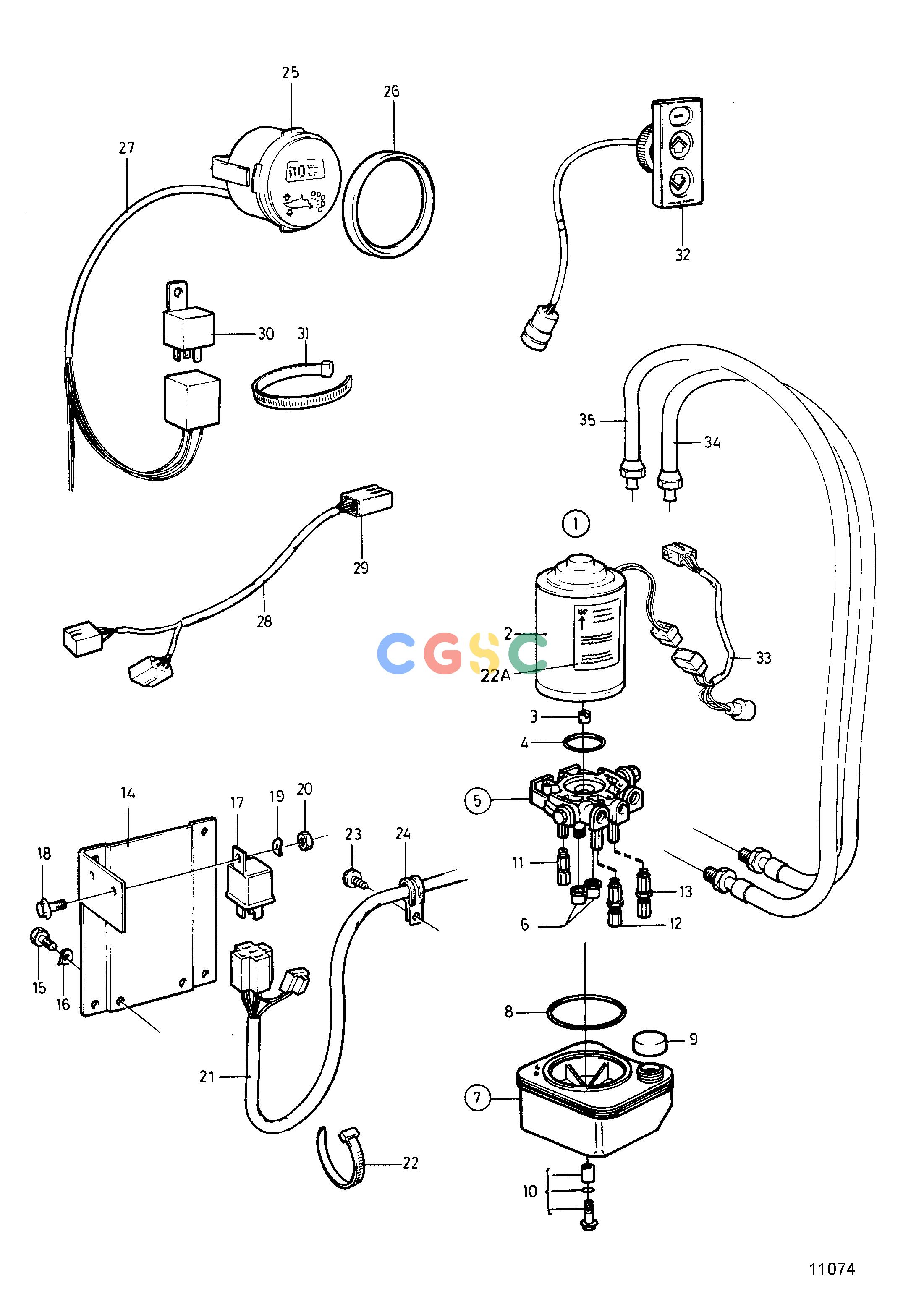

沃尔沃零件查询KAD42A; KAMD42A; HS1A; MS5BTransmissionsHydraulic Pump, Trim Instrument and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
958 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
872449
|
[1] |
Hydraulic pump
|
|
| 2. |
854525
|
[1] |
Electric motor
|
|
| 3. |
854526
|
[1] |
Clutch
|
|
| 4. |
854527
|
[1] |
O-ring
|
|
| 5. |
854528
|
[1] |
Valve housing
|
|
| 6. |
854530
|
[2] |
Filter
|
|
| 7. |
854531
|
[1] |
Reservoir
|
|
| 8. |
854532
|
[1] |
O-ring
|
|
| 9. |
854533
|
[1] |
Cover
|
|
| 10. |
854534
|
[1] |
Small parts kit
|
|
| 11. |
854535
|
[1] |
Hydraulic pump
|
|
| 12. |
854536
|
[1] |
High-pressure unit
|
|
| 13. |
854537
|
[1] |
Pressure box
|
|
| 14. |
854438
|
[1] |
Bracket
|
|
| 15. |
970945
|
[2] |
Hexagon screw
|
|
| 16. |
941908
|
[2] |
Spring washer
|
|
| 17. |
854357
|
[2] |
Relay
|
|
| 18. |
948663
|
[2] |
Flange screw
|
|
| 19. |
941905
|
[2] |
Spring washer
|
|
| 20. |
955780
|
[2] |
Hexagon nut
|
|
| 21. |
|
|
|
See group 3
|
| 22. |
948210
|
[1] |
Cable tie
|
|
| 22A. |
853097
|
[1] |
Sign
|
|
| 23. |
952630
|
[4] |
Clamp
|
|
| 24. |
955138
|
[4] |
Cross recessed screw
|
|
| 25. |
872498
|
[1] |
Trimmer
|
|
| 26. |
858643
|
[1] |
Front ring
|
|
| 27. |
856821
|
[1] |
Cable kit
|
|
| 28. |
853066
|
[1] |
Cable block
|
For dual station.
|
| 29. |
|
|
|
See group 3
|
| 30. |
872300
|
[2] |
Relay
|
12V 30A
|
| 31. |
949666
|
[1] |
Cable tie
|
|
| 32. |
853846
|
[1] |
Control panel
|
|
| 33. |
853032
|
[1] |
Cable block
|
|
| 33. |
948294
|
[1] |
Housing
|
9-pol
|
| 33. |
965822
|
[1] |
Cable terminal
|
3,5X1X2,5
|
| 33. |
853498
|
[1] |
Anode kit
|
3-pol
|
| 33. |
853521
|
[1] |
Cable terminal
|
For 853498
|
| 34. |
854700
|
[1] |
Hydraulic hose
|
|
| 35. |
854701
|
[1] |
Hydraulic hose
|
|
