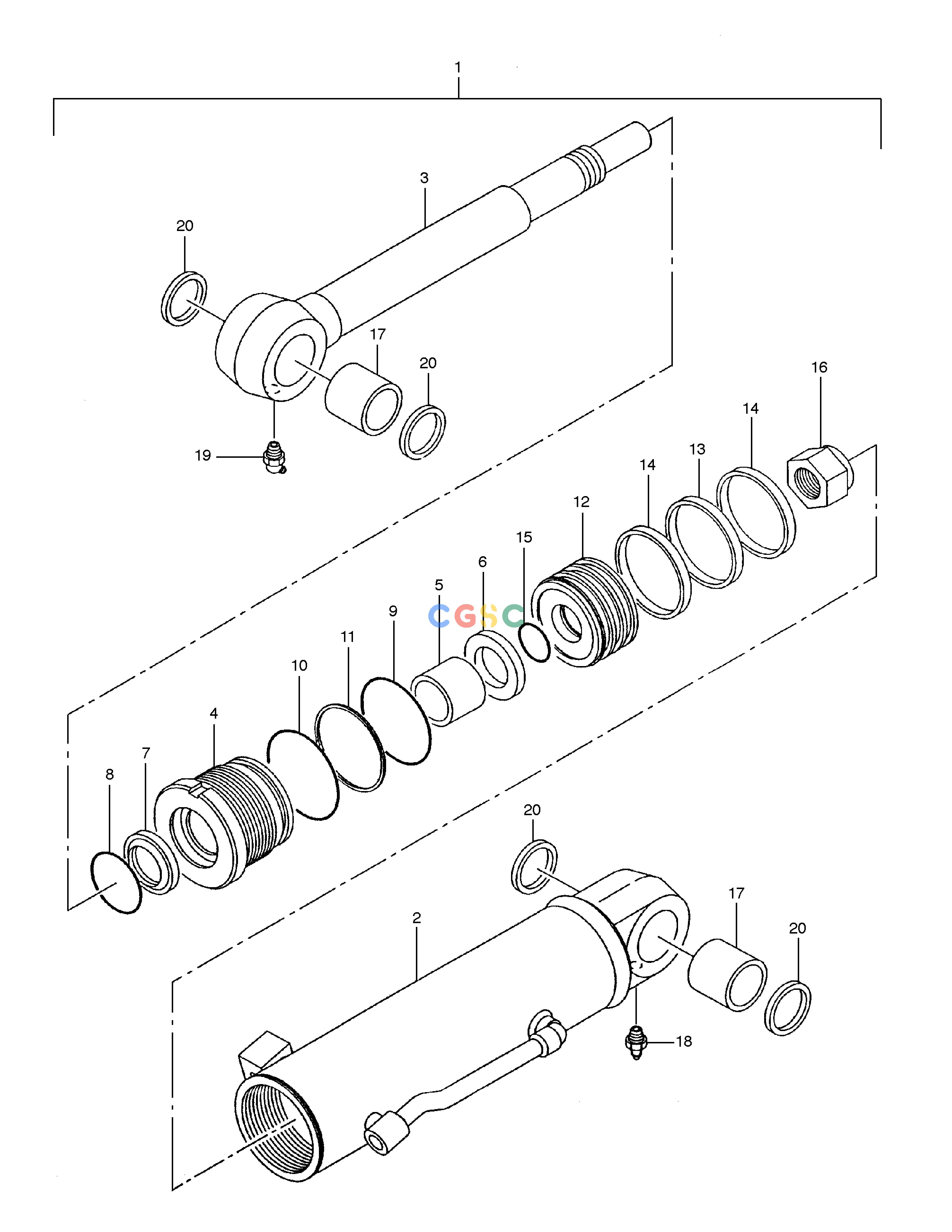

斗山零件查询DOZER CYLINDER SOLAR 030 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
306 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2440-9218KT
|
[1] |
SEAL KIT;DOZER CYL.
|
|
| 1. |
2440-9218
|
[1] |
CYLINDER ASS'Y
|
2440-9301A
|
| 10. |
74011AG75X
|
[1] |
O-RING
|
|
| 11. |
7407T3G70X
|
[1] |
RING;BACK UP
|
|
| 12. |
K5170401
|
[1] |
PISTON
|
|
| 13. |
K5170011
|
[1] |
PACKING;PISTON
|
|
| 14. |
K4970403
|
[2] |
RING;WEAR
|
|
| 15. |
K5020406
|
[1] |
O-RING
|
|
| 16. |
K0220009
|
[1] |
NUT;NYLON
|
|
| 17. |
K4890601
|
[2] |
BUSH
|
|
| 18. |
7575APT180
|
[1] |
NIPPLE;GREASE
|
|
| 19. |
7575BPT180
|
[1] |
NIPPLE;GREASE
|
|
| 2. |
K7710010
|
[1] |
CYLINDER TUBE ASS'Y
|
|
| 20. |
K4890801
|
[4] |
SEAL;DUST
|
|
| 3. |
K7710020
|
[1] |
PISTON ROD ASS'Y
|
|
| 4. |
K7710301
|
[1] |
ROD COVER
|
|
| 5. |
K4890302
|
[1] |
BUSH;ROD
|
|
| 6. |
8BBH204010
|
[1] |
PACKING;ROD
|
|
| 7. |
K3570204
|
[1] |
SEAL;DUST
|
|
| 8. |
K3570210
|
[1] |
RING;SNAP
|
|
| 9. |
74011BG70X
|
[1] |
O-RING
|
|
