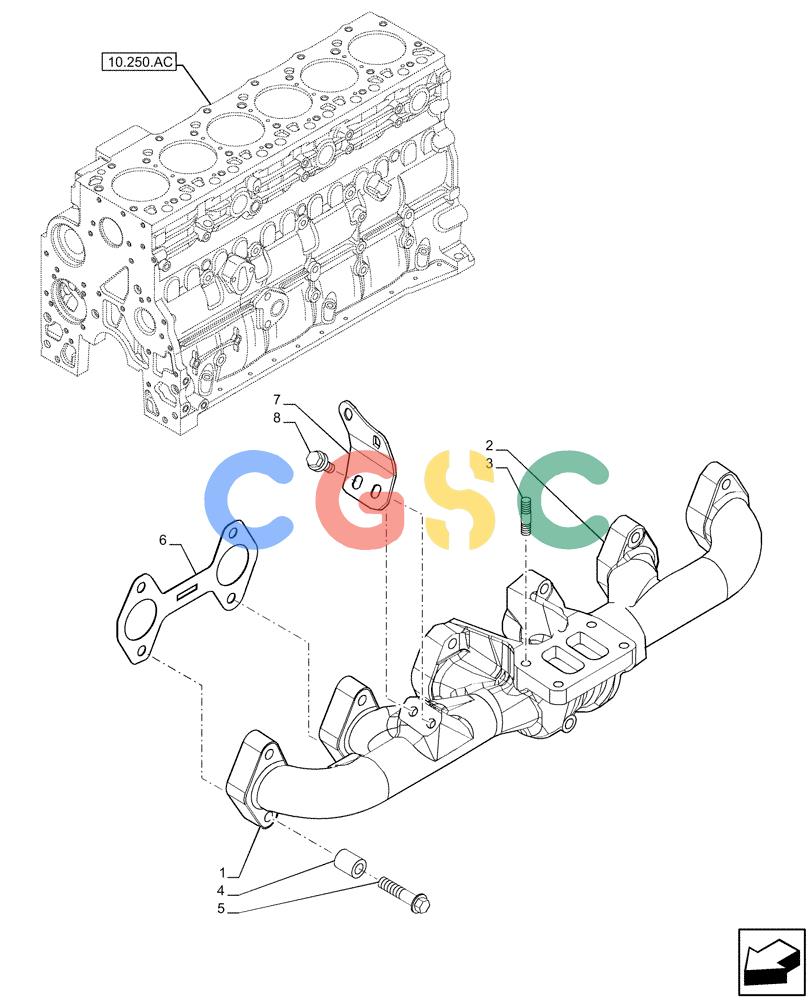

神钢零件查询(F4HFE613D B006) - ENGINE 5801925168 47748447 TC 5.90 TIER 4B & TC5.90 hillside TIER 4B (1/12-) (10.254.AC) - EXHAUST MANIFOLD WITH BRACKET Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
389 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5801504745 | [1] | EXHAUST MANIFOLD | EXHAUST MANIFOLD |
| 3. | 4899085 | [4] | STUD,M10 x 1.5 x 42mm | TOR |
| 4. | 504088350 | [12] | SPACER | TOR |
| 5. | 2852744 | [12] | SCREW,Flng, M10 x 1.5 x 65mm | TOR |
| 5. | 504085705 | [12] | SCREW | SM Superseded by part number: 2852744 |
| 6. | 2853800 | [3] | MANIFOLD GASKET,1.4mm Thk | TOR |
| 6. | 504088350 | [3] | SPACER | TOR |
| 8. | 58016919 | [4] | | |
