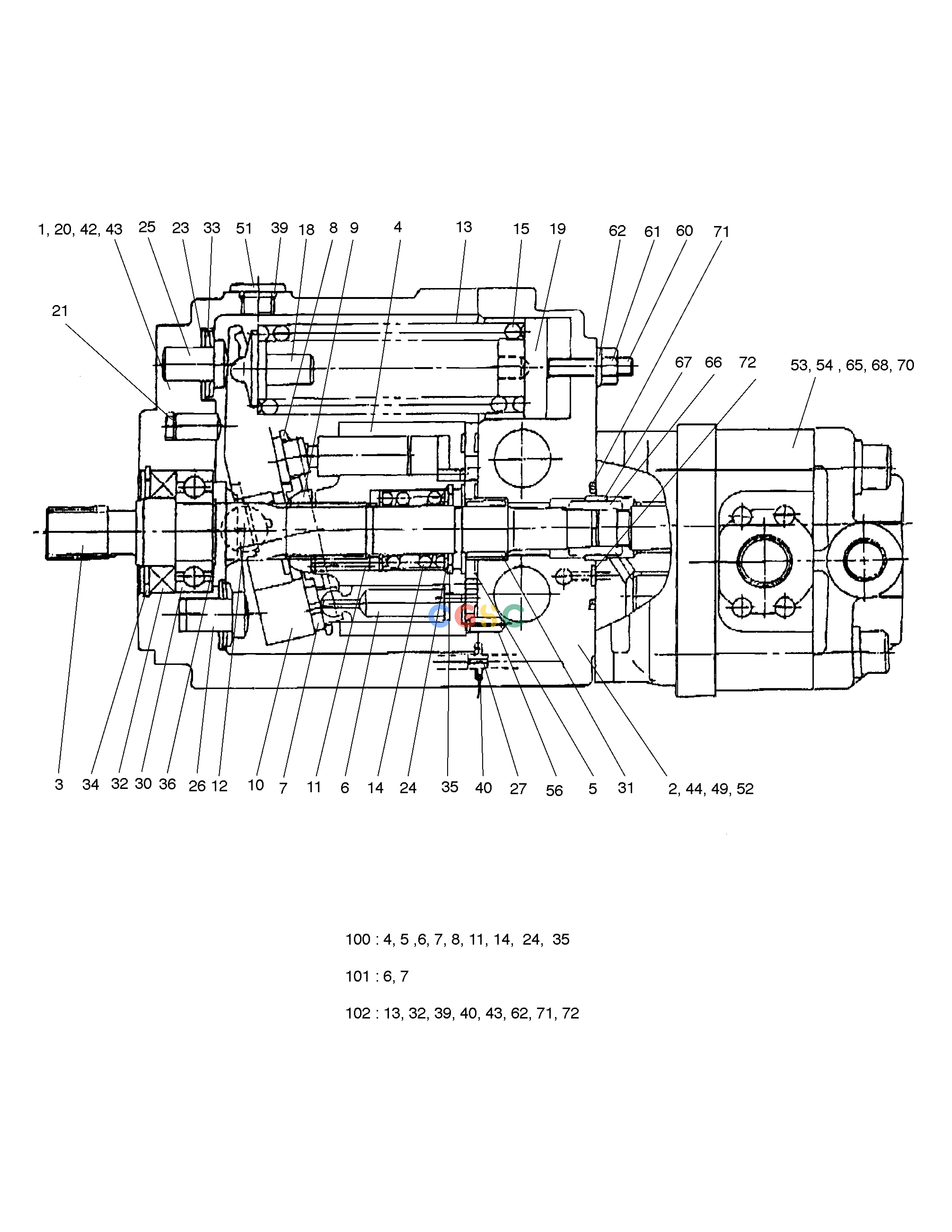

斗山零件查询MAIN PUMP SOLAR 030 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
470 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2401-9216
|
[1] |
PUMP ASS'Y
|
|
| 1. |
FZD-4197-1-01
|
[1] |
BODY S
|
|
| 10. |
FZD-4224-1-10
|
[1] |
PLATE;SWASH
|
|
| 100. |
PDBC-101100
|
[1] |
BARREL CYLINDER KIT
|
|
| 101. |
FZS-2210-3-36-1
|
[1] |
PISTON KIT
|
|
| 102. |
PDBS-101410
|
[1] |
SEAL KIT
|
|
| 11. |
PS35-102000
|
[3] |
BEARING;NEEDLE
|
|
| 12. |
AL203-3/4
|
[2] |
PIN
|
|
| 13. |
FZS-2232-13-2
|
[1] |
PACKING
|
|
| 14. |
FZS-2210-14-36
|
[1] |
SPRING
|
|
| 15. |
FZD-4357-1-15
|
[1] |
SPRING T1
|
|
| 18. |
FZS-2232-45-7G
|
[1] |
HOLDER;SPRING
|
|
| 19. |
FZD-4020-19
|
[1] |
GUIDE;SPRING
|
|
| 2. |
FZD-4274-1-02
|
[1] |
BODY H
|
|
| 20. |
PS13-101000
|
[1] |
PIN
|
|
| 21. |
FZD-4197-1-21-10
|
[1] |
ROD G
|
|
| 23. |
FZS-2232-29
|
[2] |
WASHER
|
|
| 24. |
FZS-2620-22
|
[2] |
RETAINER
|
|
| 25. |
FZS-2232-16-24P1
|
[1] |
STOPPER PIN A
|
|
| 26. |
FZS-2232-16-20P1
|
[1] |
STOPPER PIN B
|
|
| 27. |
FZD-4197-1-27
|
[1] |
PIN
|
|
| 3. |
FZS-2232-03-7G-2
|
[1] |
SHAFT
|
|
| 30. |
#6205
|
[1] |
BEARING
|
|
| 31. |
TA2020Z
|
[1] |
BEARING;NEEDLE
|
|
| 32. |
SCJY305210V
|
[1] |
SEAL;OIL
|
|
| 33. |
SCD-H-14
|
[4] |
WASHER;CONCAL SPRING
|
|
| 34. |
RH-52
|
[1] |
RING;SNAP
|
|
| 35. |
RH-35
|
[1] |
RING;SNAP
|
|
| 36. |
RA-25
|
[1] |
RING;SNAP
|
|
| 39. |
RO-P11-90
|
[1] |
O-RING
|
|
| 4. |
FZS-2070-04-38
|
[1] |
BARREL;CYLINDER
|
|
| 40. |
RO-P12-90
|
[2] |
O-RING
|
|
| 42. |
GPF-1/4
|
[1] |
PLUG
|
|
| 43. |
RO-P11-90
|
[1] |
O-RING
|
|
| 44. |
TH-10X50
|
[5] |
BOLT;SOCKET HEAD
|
|
| 49. |
TPUA-1/16
|
[5] |
PLUG
|
|
| 5. |
FZS-2070-05-38
|
[1] |
PLATE;VALVE
|
|
| 51. |
GPF-1/4
|
[1] |
PLUG
|
|
| 52. |
WS-B-10
|
[5] |
WASHER;SPRING
|
|
| 53. |
GPF-1/2
|
[1] |
PLUG
|
|
| 54. |
RO-P18-90
|
[1] |
O-RING
|
|
| 56. |
PPS-W-6X16
|
[1] |
PIN;SPRING
|
|
| 6. |
FZS-2210-06-36
|
[10] |
PISTON
|
|
| 60. |
THS-A-8X40
|
[1] |
SCREW;SOCKET HEAD
|
|
| 61. |
NH-A-8
|
[1] |
NUT
|
|
| 62. |
WD8X16X2.0
|
[1] |
WASHER;SEAL
|
|
| 65. |
705-41-06310
|
[1] |
GEAR PUMP
|
|
| 66. |
FZD-4019-1-66-25
|
[1] |
COUPLING
|
|
| 67. |
FZS-2036-73-1
|
[1] |
COLLAR
|
|
| 68. |
TB-8X20
|
[2] |
BOLT
|
|
| 7. |
FZS-2210-07-36
|
[10] |
SHOE
|
|
| 70. |
WG-A-B
|
[2] |
WASHER
|
|
| 71. |
RO-G55-90
|
[1] |
O-RING
|
|
| 72. |
RO-P8-90
|
[1] |
O-RING
|
|
| 8. |
FZS-2210-08-36
|
[1] |
HOLDER;SHOE
|
|
| 9. |
PS67-102001
|
[1] |
HOLDER;BARREL
|
|
