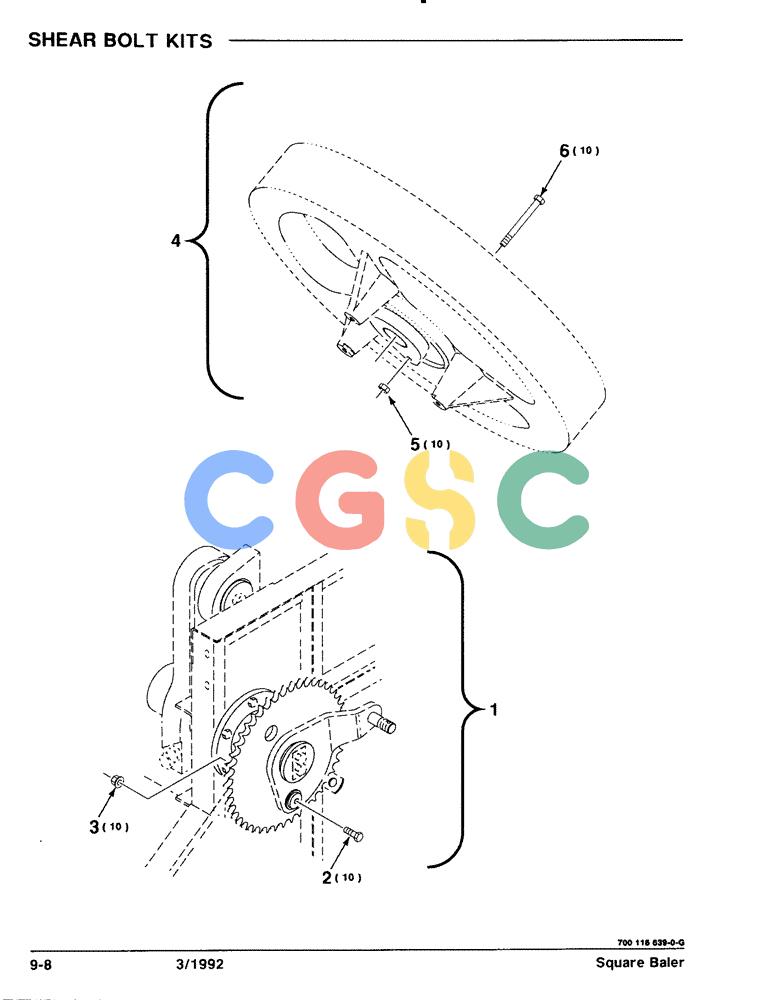

凯斯零件查询(8570) - CASE IH MID-SIZE RECTANGULAR BALER (1/91-12/96) (9-08) - SHEAR BOLT KITS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
159 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700114059
|
[1] |
KIT
|
CAS
SACK OF BOLTS (Includes Items 2 & 3) ( replaced 700116639 )
|
| 2. |
7773070
|
[10] |
BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8
|
HFI
1/2-13 x 2-3/4 C GRD 8 Superseded by part number: 86520614
|
| 3. |
704742
|
[10] |
ROD
|
NNA
1/2-13 HFTLN GR/G Superseded by part number: 231-5348, 231-5348, 86516877
|
| 4. |
700116639
|
[1] |
KIT, SHEARBOLT, PAK
|
CAS
SACK OF BOLTS (Includes Items 4 & 6) ( replaced 700114059)
|
| 5. |
704734
|
[10] |
FLANGE NUT,Flg, 3/8"-16
|
IH
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 6. |
7701899
|
[10] |
BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5
|
CAS
3/8-16 X 2-1/2 C Superseded by part number: 87936
|
