纽荷兰零件查询(FD14E) - CRAWLER DOZER (92.350[001]) - TRACK ROLLER GUARD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
528 次

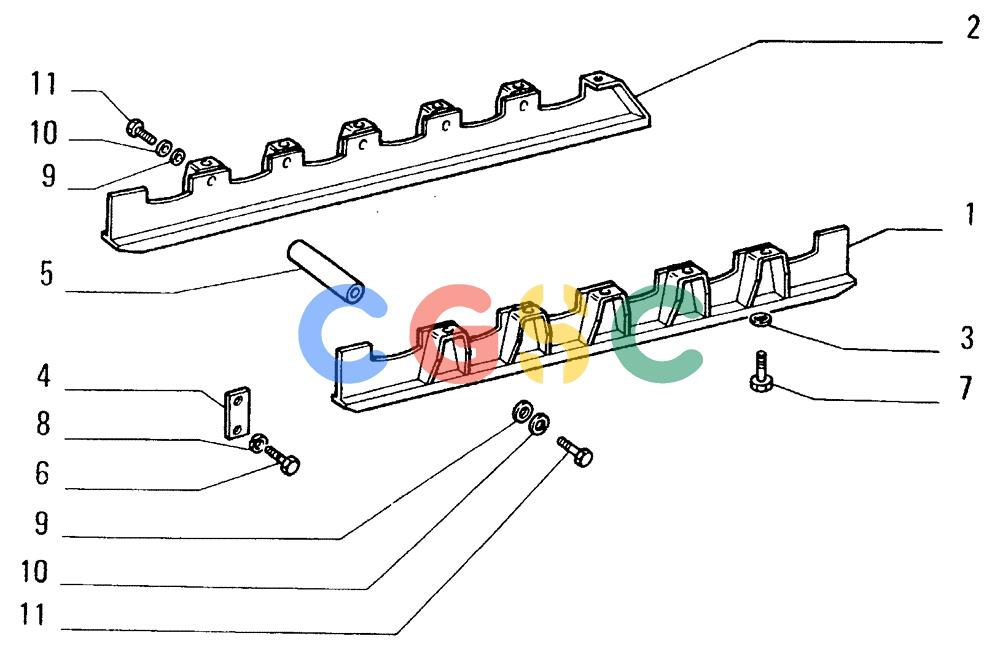

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79068300 | [2] | GUARD | LEC- OUTER |
| 2. | 79068302 | [1] | GUARD | LEC- INNER RIGHT |
| 2. | 79068304 | [1] | GUARD | LEC- INNER LEFT |
| 3. | 79005240 | [22] | WASHER,16.8mm ID x 36mm OD x 8mm Thk | LEC |
| 4. | 76006423 | [6] | PLATE | LEC |
| 5. | 76004368 | [10] | SPACER | LECSTUD |
| 6. | 11390531 | [12] | BOLT,Hex, M16 x 1.5 x 40, 10.9, Full Thd | LEC Superseded by part number: 11390534 |
| 7. | 15840531 | [22] | BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd | LEC |
| 8. | 10572179 | [12] | LOCK WASHER,M16 | TTFLOCKWASHER, 16.2 x 3.5 Superseded by part number: 10517274 |
| 9. | 10520421 | [20] | WASHER,21mm ID x 35mm OD x 4mm Thk | TTF20,4x35 Superseded by part number: 17096014 |
| 10. | 10572379 | [20] | WASHER,M20.2 x 33.6 x 6 Thk, HT | LECLOCKWASHER 20,2x4 Superseded by part number: 9847025 |
| 11. | 11408631 | [20] | BOLT,Hex, M20 x 1.5 x 45, 10.9, Full Thd | LEC Superseded by part number: 514-1211 |
