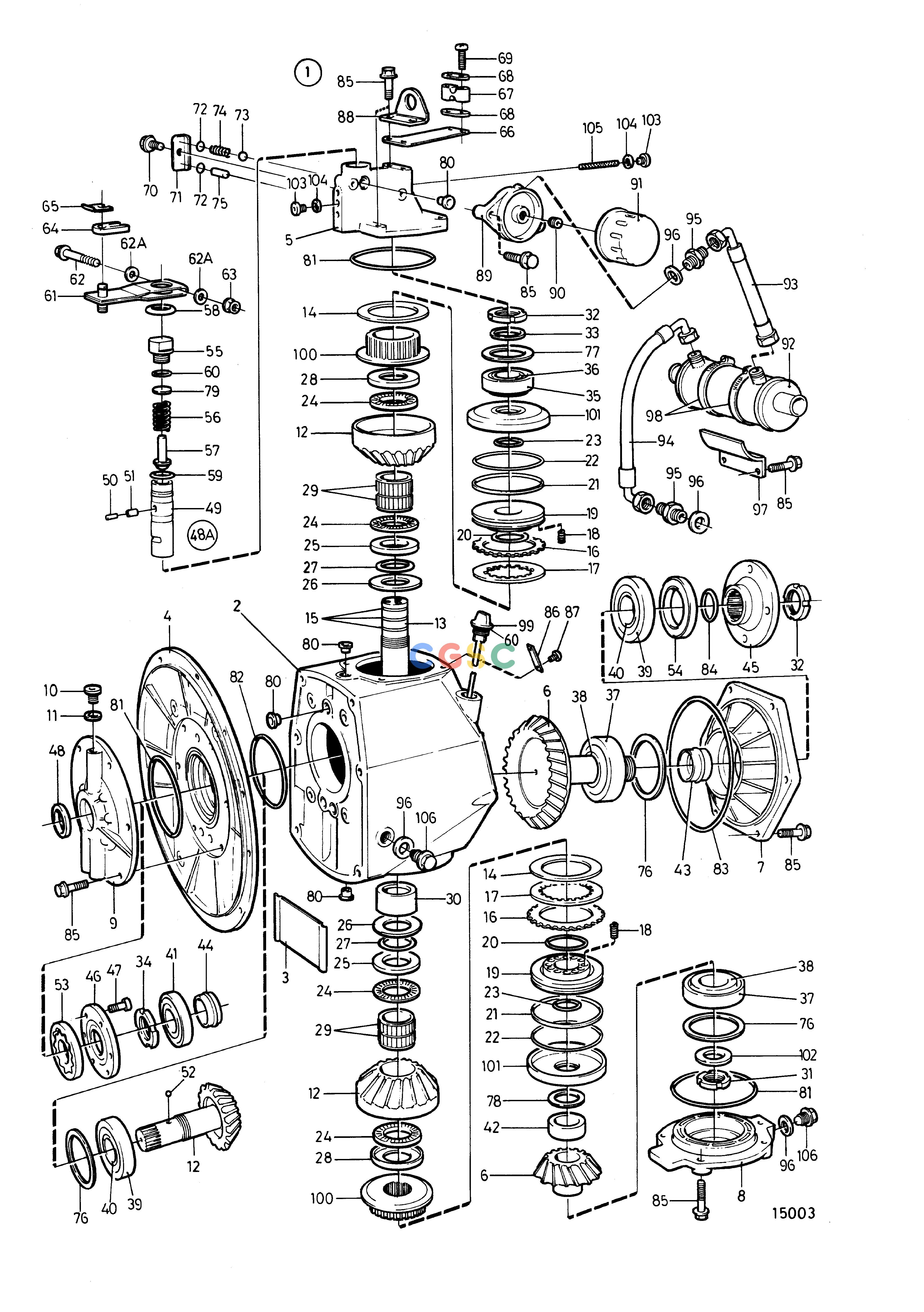

沃尔沃零件查询KAD42A; KAMD42A; HS1A; MS5BTransmissionsReverse Gear HS1A: 873172EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
785 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
873172
|
[1] |
Transmission
|
Ratio 2,62:1
|
| 1. |
3803508
|
[1] |
Lower gear, exch
|
Ratio 2,62:1
|
| 2. |
872500
|
[1] |
Gear housing
|
|
| 3. |
872574
|
[1] |
Shield
|
|
| 4. |
872501
|
[1] |
Cap
|
|
| 5. |
872725
|
[1] |
Valve housing
|
|
| 6. |
872534
|
[1] |
Drive gear set
|
Ratio 2,62:1
|
| 7. |
872505
|
[1] |
Bearing housing
|
|
| 8. |
872506
|
[1] |
Bearing housing
|
|
| 9. |
872502
|
[1] |
Housing
|
|
| 10. |
945065
|
[3] |
Plug
|
|
| 11. |
969011
|
[3] |
Gasket
|
|
| 12. |
872507
|
[1] |
Drive gear set
|
|
| 13. |
872515
|
[1] |
Shaft
|
|
| 14. |
|
|
|
Included in disc kit 876591., See group 10A
|
| 15. |
|
|
|
Included in kit 876589., See group 10A
|
| 16. |
|
|
|
Included in disc kit 876591., See group 10A
|
| 17. |
|
|
|
Included in disc kit 876591., See group 10A
|
| 18. |
872580
|
[26] |
Spring
|
|
| 19. |
872518
|
[2] |
Piston
|
|
| 20. |
977891
|
[2] |
O-ring
|
Included in kit 876589., See group 10A
|
| 21. |
|
|
|
Included in kit 876589., See group 10A
|
| 22. |
|
|
|
Included in kit 876589., See group 10A
|
| 23. |
872522
|
[2] |
Lock ring
|
|
| 24. |
184175
|
[4] |
Needle roller assemb
|
|
| 25. |
184239
|
[2] |
Raceway washer
|
|
| 26. |
872581
|
[2] |
Spring washer
|
|
| 27. |
956000
|
[2] |
O-ring
|
|
| 28. |
872570
|
[2] |
Thrust washer
|
|
| 29. |
184798
|
[4] |
Needle roller assemb
|
|
| 30. |
872587
|
[1] |
Roller bearing
|
|
| 31. |
969072
|
[1] |
Round nut
|
|
| 32. |
969073
|
[2] |
Round nut
|
|
| 33. |
872520
|
[1] |
Washer
|
|
| 34. |
969074
|
[1] |
Round nut
|
|
| 35. |
181304
|
[1] |
Cup
|
|
| 36. |
181303
|
[1] |
Inner ring
|
|
| 37. |
183403
|
[2] |
Cup
|
|
| 38. |
183649
|
[2] |
Inner ring
|
|
| 39. |
181036
|
[2] |
Cup
|
|
| 40. |
184797
|
[2] |
Inner ring
|
|
| 41. |
183232
|
[1] |
Roller bearing
|
|
| 42. |
872521
|
[1] |
Spacer sleeve
|
|
| 43. |
872568
|
[1] |
Pretensioning sleeve
|
|
| 44. |
872569
|
[1] |
Pretensioning sleeve
|
|
| 45. |
872523
|
[1] |
Flange
|
|
| 46. |
872503
|
[1] |
Cover
|
|
| 47. |
942001
|
[6] |
Hex. socket screw
|
|
| 48. |
6842273
|
[1] |
Lip seal
|
|
| 49. |
|
|
|
|
| 50. |
|
|
|
|
| 51. |
|
|
|
|
| 52. |
192601
|
[1] |
Ball
|
|
| 53. |
872582
|
[1] |
Pump element
|
|
| 54. |
872701
|
[1] |
Sealing ring
|
|
| 55. |
872525
|
[1] |
Housing
|
|
| 56. |
872585
|
[1] |
Spring
|
|
| 57. |
471085
|
[1] |
Valve cone
|
|
| 58. |
872567
|
[1] |
Cap
|
|
| 59. |
977890
|
[1] |
O-ring
|
|
| 60. |
925058
|
[2] |
O-ring
|
|
| 61. |
872526
|
[1] |
Intermediate lever
|
|
| 62. |
955252
|
[1] |
Hexagon screw
|
|
| 62A. |
940090
|
[2] |
Washer
|
|
| 63. |
963104
|
[1] |
Lock nut
|
|
| 64. |
872075
|
[1] |
Anchorage
|
|
| 65. |
968631
|
[1] |
E-circlip
|
|
| 66. |
872528
|
[1] |
Bracket
|
|
| 67. |
872074
|
[1] |
Retainer
|
|
| 68. |
872076
|
[2] |
Washer
|
|
| 69. |
956083
|
[2] |
Cross recessed screw
|
|
| 70. |
965175
|
[1] |
Flange screw
|
|
| 71. |
872529
|
[1] |
Cap
|
|
| 72. |
955983
|
[2] |
O-ring
|
|
| 73. |
183801
|
[1] |
Ball
|
|
| 74. |
872586
|
[1] |
Spring
|
|
| 75. |
184796
|
[1] |
Needle roller
|
|
| 76. |
977913
|
[1] |
Shim
|
TH=0,10mm
|
| 76. |
977914
|
[1] |
Shim
|
TH=0.15mm
|
| 76. |
977915
|
[1] |
Shim
|
TH=0.35mm
|
| 77. |
977910
|
[1] |
Shim
|
TH=0,10mm
|
| 77. |
977911
|
[1] |
Shim
|
TH=0.15mm
|
| 77. |
977912
|
[1] |
Shim
|
TH=0.35mm
|
| 78. |
978912
|
[1] |
Shim
|
TH=0,30mm
|
| 78. |
978913
|
[1] |
Shim
|
TH=0.40mm
|
| 78. |
978914
|
[1] |
Shim
|
TH=0.45mm
|
| 78. |
978915
|
[1] |
Shim
|
TH=0.50mm
|
| 78. |
978916
|
[1] |
Shim
|
TH=0,55mm
|
| 78. |
977909
|
[1] |
Shim
|
TH=0.35mm
|
| 79. |
978917
|
[1] |
Shim
|
TH=0.50mm
|
| 80. |
422413
|
[11] |
Sealing ring
|
|
| 81. |
925263
|
[3] |
O-ring
|
|
| 82. |
925260
|
[1] |
O-ring
|
|
| 83. |
948866
|
[1] |
O-ring
|
|
| 84. |
925065
|
[1] |
O-ring
|
|
| 85. |
947760
|
[28] |
Flange screw
|
|
| 86. |
|
|
|
|
| 87. |
950885
|
[2] |
Drive screw
|
|
| 88. |
|
|
|
|
| 89. |
872605
|
[1] |
Bracket
|
|
| 90. |
840274
|
[1] |
Nipple
|
|
| 91. |
834337
|
[1] |
Oil filter
|
|
| 92. |
872626
|
[1] |
Oil cooler
|
|
| 93. |
872637
|
[1] |
Hose
|
|
| 94. |
872638
|
[1] |
Hose
|
|
| 95. |
192639
|
[2] |
Nipple
|
|
| 96. |
947624
|
[4] |
Gasket
|
|
| 97. |
872615
|
[1] |
Bracket
|
|
| 98. |
961674
|
[2] |
Hose clamp
|
|
| 99. |
872538
|
[1] |
Dipstick
|
|
| 100. |
872608
|
[2] |
Hub
|
|
| 101. |
872611
|
[2] |
Cylinder
|
|
| 102. |
978906
|
[1] |
Support washer
|
|
| 103. |
977917
|
[3] |
Plug
|
|
| 104. |
947620
|
[3] |
Gasket
|
|
| 105. |
872577
|
[1] |
Oil strainer
|
|
| 106. |
1381498
|
[2] |
Plug
|
|
| 106. |
876588
|
[1] |
Gasket kit
|
See group 10A
|
