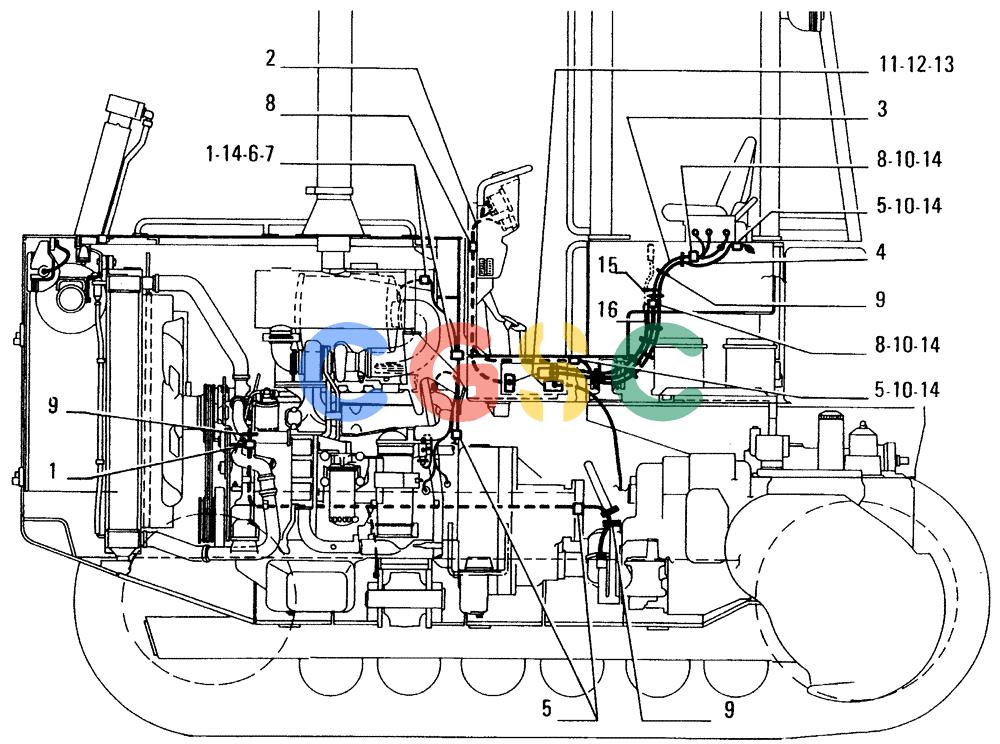

纽荷兰零件查询(FD14E) - CRAWLER DOZER (6.7110[002]) - ELECTIC WIRING-ELECTRICAL SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
757 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 10450290 | [3] | CLAMP,12mm, Coat, 9mm Bolt Hole, P Type | LECCLIP 74x9 Superseded by part number: 86625036 |
| 2. | 76018743 | [1] | ELECTRIC CABLE | LECCABLE D2744' |
| 2. | 79093173 | [1] | ELECTRIC CABLE | LECCABLE C2744 Superseded by part number: 76018743 |
| 3. | 79093174 | [1] | ELECTRIC CABLE | LECCABLE C2708 Superseded by part number: 79097472 |
| 3. | 79097472 | [1] | ELECTRIC CABLE | LECCABLE D2708 |
| 4. | 79093175 | [1] | ELECTRIC CABLE | LECCABLE |
| 5. | 1 0450490 | [5] | CLIP 16x9 | |
| 6. | 16043231 | [2] | SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd | LECSCREW 8x1.25x16 |
| 7. | 16100821 | [2] | NUT,M8, Cl 10 | LEC Superseded by part number: 43362 |
| 8. | 10450990 | [2] | CLAMP,26mm, Coat, 9mm Bolt Hole, P Type | LECCLIP Superseded by part number: 86637977 |
| 9. | 4982514 | [13] | CABLE TIE | LECCLAMP Superseded by part number: 87615202 |
| 10. | 16043031 | [5] | BOLT,Hex, M8 x 12mm, Cl 10.9, Full Thd | LEC Superseded by part number: 43231 |
| 11. | 79073087 | [3] | CONSOLE | LECBRACKET |
| 12. | 10615479 | [6] | LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk | LECWASHER, LOCK, Ext Tooth, M6, Serr Superseded by part number: |
| 13. | 14432231 | [6] | HEX SOC SCREW,M6 x 22mm, Cl 10.9, Full Thd | BAS |
| 14. | 10615679 | [8] | LOCK WASHER,Ext Tooth, M8 | BHBWASHER Superseded by part number: 10615671 |
| 16. | 76018744 | [1] | ELECTRIC CABLE | LECCABLE D2744 |
