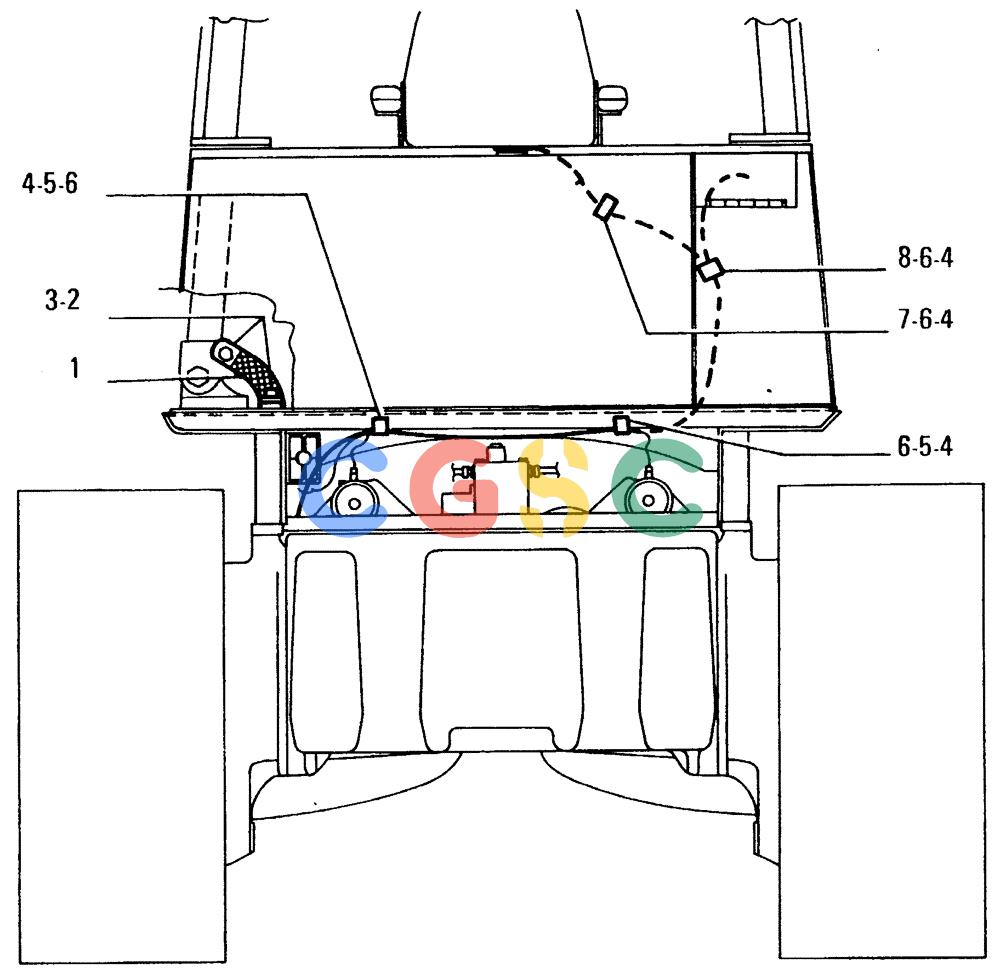

纽荷兰零件查询(FD14E) - CRAWLER DOZER (6.7110[005]) - ELECTRIC WIRING-ELECTRICAL SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
527 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79019383 | [1] | GROUND CABLE | LECCABLE Superseded by part number: 79020354 |
| 2. | 10979331 | [2] | BOLT,Hex, M10 x 14mm, Cl 10.9, Full Thd | LECM10 x 14, 10.9, Full Thd Superseded by part number: 87547661 |
| 3. | 14496631 | [2] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 4. | 10615679 | [4] | LOCK WASHER,Ext Tooth, M8 | BHBWASHER Superseded by part number: 10615671 |
| 5. | 10450790 | [2] | RETAINER COLLAR,22mm, Coat, 9mm Bolt Hole, P Type | LECCLIP 22x9 Superseded by part number: 10450990 |
| 6. | 16043031 | [4] | BOLT,Hex, M8 x 12mm, Cl 10.9, Full Thd | LEC Superseded by part number: 43231 |
| 7. | 10450090 | [1] | CLAMP,8mm, Coat, 9mm Bolt Hole, P Type | IMO8 x 9 |
| 8. | 10450490 | [1] | CLAMP,16mm, Coat, 9mm Bolt Hole, P Type | LEC9mm hole dia M16, 5/16" Bolt Superseded by part number: |
