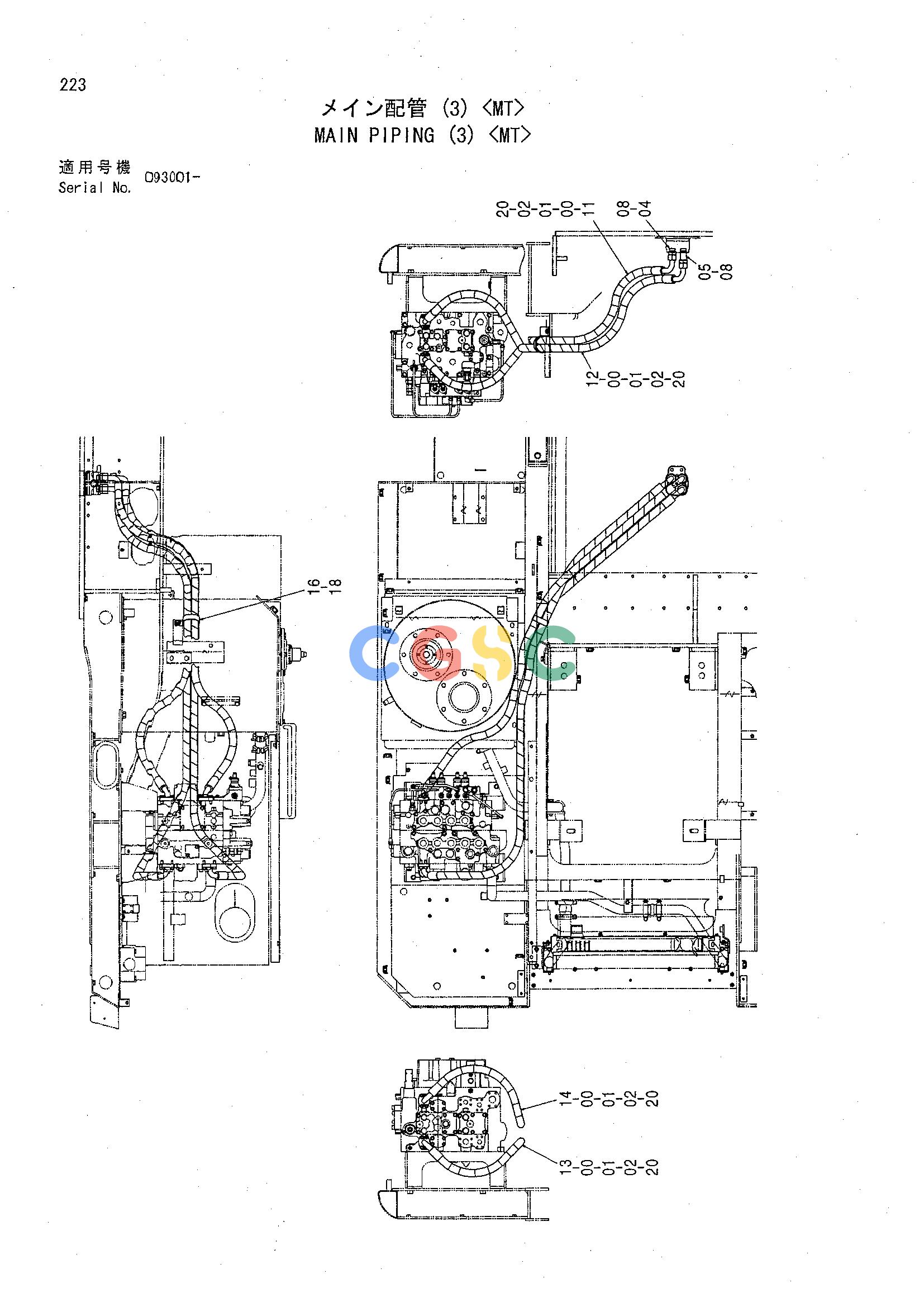

日立零件查询（CHR70）MAIN PIPING (3) <MT> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
764 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 986910 | [8] | FLANGE;SPLIT | |
| 01. | 971489 | [4] | O-RING | |
| 02. | J781030 | [16] | BOLT;SOCKET | |
| 04. | 4189619 | [2] | ADAPTER;S | |
| 04A. | 4506424 | [1] | O-RING | |
| 05. | 4189539 | [2] | ADAPTER;S | |
| 05A. | 4506424 | [1] | O-RING | |
| 08. | 4187308 | [4] | O-RING | |
| 11. | 4439193 | [1] | HOSE (A1) | |
| 12. | 4439194 | [1] | HOSE (B1) | |
| 13. | 4439196 | [1] | HOSE (A8) | |
| 14. | 4439197 | [1] | HOSE (B8) | |
| 16. | 4204136 | [1] | CLIP | |
| 18. | J011030 | [1] | BOLT;SEMS | |
| 18. | J271030 | [1] | BOLT;SEMS | TJ901030 |
| 18. | J271030 | [1] | BOLT;SEMS | TJ222010 |
| 20. | 4327294 | [18] | PROTECTOR | |
