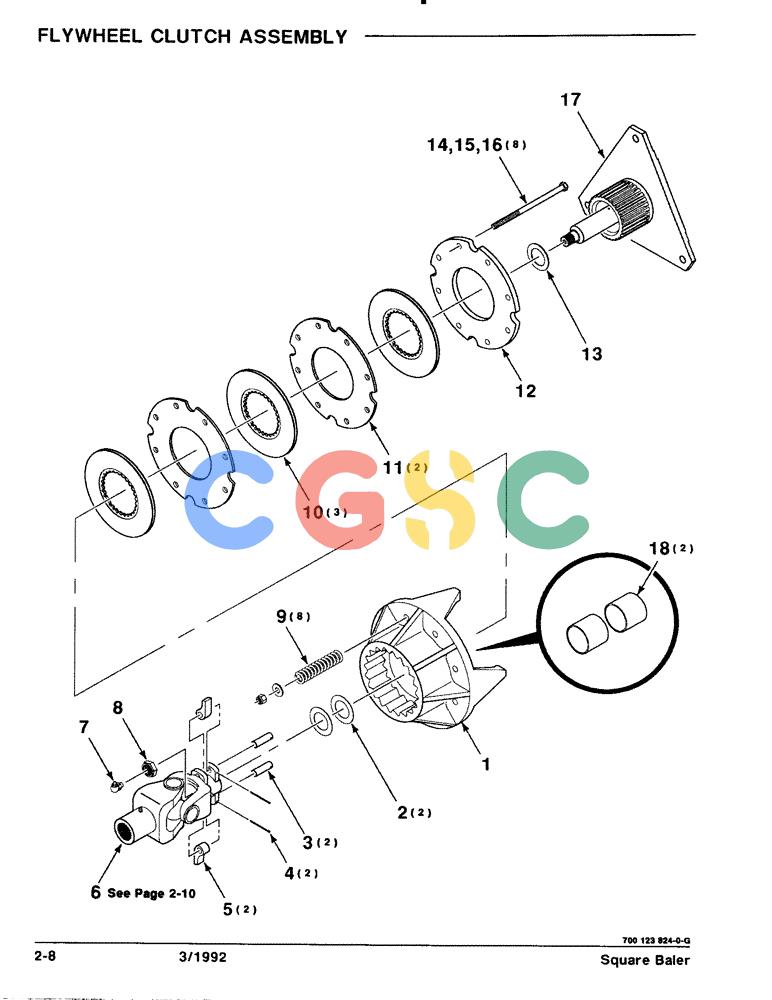

凯斯零件查询(8570) - CASE IH MID-SIZE RECTANGULAR BALER (1/91-12/96) (2-08) - FLYWHEEL CLUTCH ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
611 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700113034
|
[1] |
CLUTCH HOUSING
|
CAS
HOUSING - CLUTCH (Includer Item 18) Superseded by part number: 700164637
|
| 2. |
6522932
|
[2] |
SHIM
|
CAS
- CLUTCH
|
| 3. |
6522916
|
[2] |
PIN
|
CAS
- PAWL
|
| 4. |
62133
|
[2] |
PIN
|
CAS
1/8 X 1-3/4 COTTER PIN Superseded by part number: 87673
|
| 5. |
700123827
|
[2] |
PAWL
|
CAS
- CLUTCH
|
| 6. |
700710705
|
[1] |
JOINT
|
CAS
U - JOINT ASSEMBLY Superseded by part number: 700113036, 700113037, 700716904, 87020817
|
| 7. |
77115
|
[1] |
FITTING
|
CAS
1/8-27 X 90 DEGREE ZERK Superseded by part number: 80717
|
| 8. |
74476
|
[1] |
NUT
|
HFI
3/4-16 LHSN Superseded by part number: 131-73
|
| 9. |
858019
|
[8] |
SPRING
|
IH
- COMPRESSION
|
| 10. |
700108820
|
[3] |
DISC
|
CAS
ASSEMBLY - FRICTION
|
| 11. |
700112903
|
[2] |
CLUTCH PLATE,106mm ID x 220mm OD x 5mm Thk
|
CAS
PLATE - CLUTCH
|
| 12. |
6522866
|
[1] |
CLUTCH PLATE
|
CAS
PLATE - CLUTCH
|
| 13. |
NLS
|
[1] |
NO LONGER SERVICED
|
BAS
1-3/8 X 14 GAUGE NRMB
|
| 14. |
700707998
|
[8] |
SCREW,Hex, 3/8" - 16 x 7", Gr 5
|
CAS
3/8-16 X 7 B - SPECIAL
|
| 15. |
700709603
|
[8] |
WASHER,3/8"
|
CAS
3/8 WIDE PLAIN WASHER Superseded by part number: 80702
|
| 16. |
74781
|
[8] |
NUT
|
CAS
3/8-16 LHSN Superseded by part number: 231-1406, 231-1406, NS
|
| 17. |
700123825
|
[1] |
PLATE
|
CAS
PILOT WA - CLUTCH
|
| 18. |
7852114
|
[2] |
BUSHING,34.9mm ID x 38.1mm OD x 33.27mm L
|
CAS
- BRONZE
|
