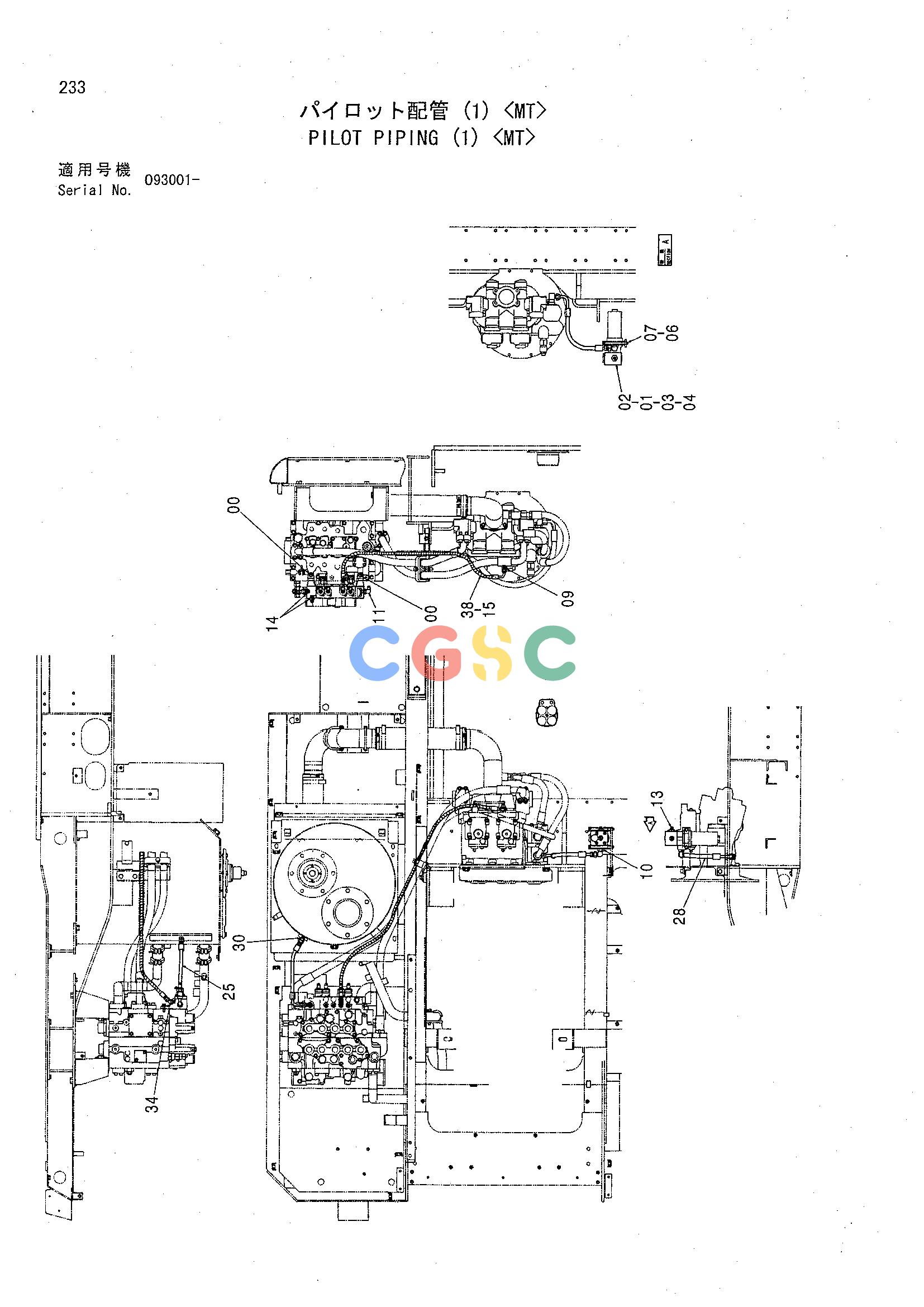

日立零件查询（CHR70）PILOT PIPING (1) <MT> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
204 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | J781030 | [2] | BOLT;SOCKET | |
| 01. | 4506416 | [1] | O-RING | |
| 02. | 4351142 | [1] | VALVE;RELIEF | |
| 03. | 4330227 | [1] | FILTER;OIL | |
| 03A. | 4370435 | [1] | ELEMENT;FILTER | |
| 03B. | 4191301 | [1] | ELEMENT;FILTER | |
| 03C. | A811060 | [1] | O-RING | |
| 04. | J780865 | [4] | BOLT;SOCKET | |
| 06. | A590910 | [2] | WASHER;SPRING | |
| 07. | J901004 | [2] | BOLT | |
| 09. | 4200465 | [1] | ADAPTER;S | |
| 09A. | 957366 | [1] | O-RING | |
| 10. | A852344 | [1] | ELBOW;S | |
| 10A. | 4506418 | [1] | O-RING | |
| 11. | 4154671 | [1] | ELBOW;S | |
| 11A. | 4509180 | [1] | O-RING | |
| 13. | 4200469 | [1] | ADAPTER;S | |
| 13A. | 4506418 | [1] | O-RING | |
| 14. | 4200466 | [2] | ADAPTER;S | |
| 14A. | 4509180 | [1] | O-RING | |
| 15. | 4440087 | [1] | HOSE | |
| 25. | 4440086 | [1] | HOSE (DS) | |
| 28. | 4217384 | [1] | HOSE | |
| 30. | 4200466 | [1] | ADAPTER;S | |
| 30A. | 4509180 | [1] | O-RING | |
| 34. | A852222 | [1] | ELBOW;S | |
| 34A. | 957366 | [1] | O-RING | |
| 38. | 4327293 | [3] | PROTECTOR | |
