纽荷兰零件查询(FD14E) - CRAWLER DOZER (6.7820[001]) - TRADE MARKS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
222 次

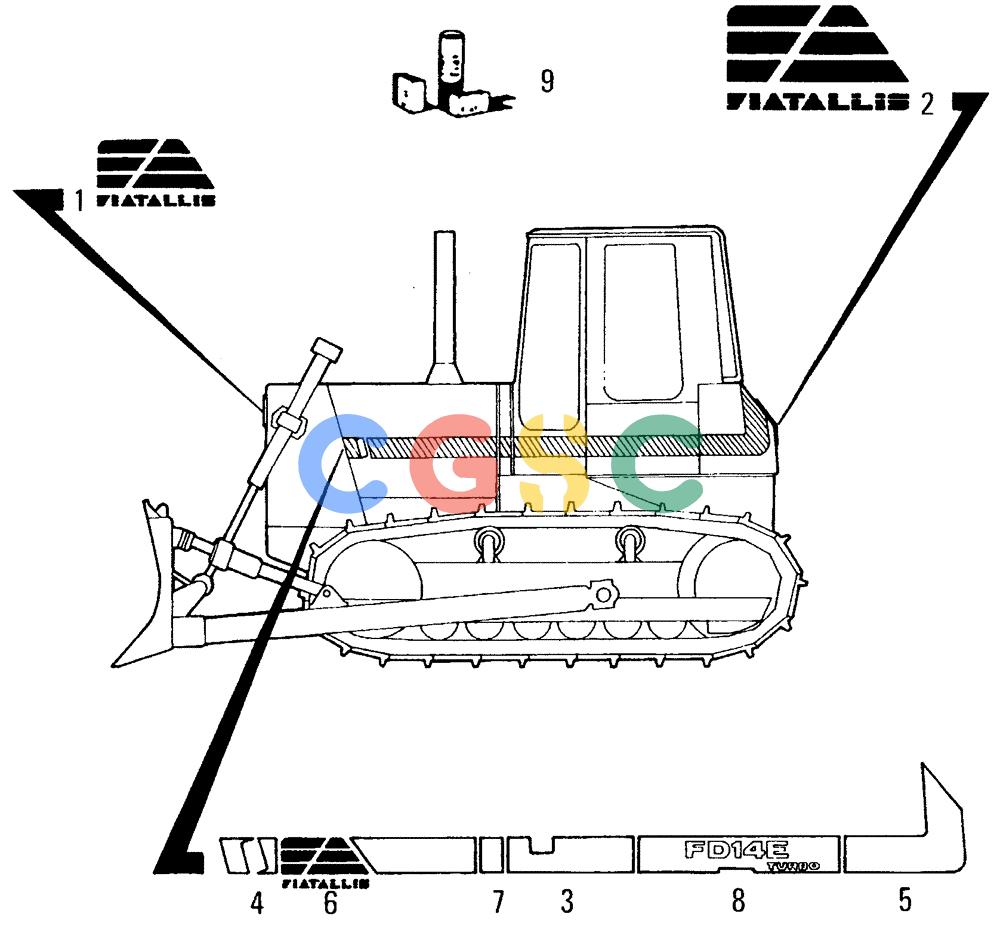

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79041020 | [1] | MAKERS BADGE | LECTRADE MARK |
| 2. | 79071570 | [1] | MAKERS BADGE | LECTRADE MARK |
| 3. | 79089993 | [1] | DECAL | LEC- SIDE LEFT |
| 3. | 79089994 | [1] | DECAL | LEC- SIDE RIGHT |
| 4. | 79089996 | [1] | DECAL | LEC- SIDE FRONT RIGHT |
| 4. | 79092771 | [1] | DECAL | LEC- SIDE FRONT LEFT |
| 5. | 79089997 | [1] | DECAL | LEC- SIDE LEFT |
| 5. | 79089998 | [1] | DECAL | LEC- SIDE RIGHT |
| 6. | 79092270 | [1] | DATA PLAQUE | LECDECAL |
| 6. | 79092271 | [1] | DECAL | LEC |
| 7. | 79092772 | [2] | DECAL | LEC |
| 8. | 79093748 | [2] | MAKERS BADGE | LECTRADE MARK |
| 9. | 79092272 | [1] | DECAL KIT | LECKIT SEE PAGE 32 Superseded by part number: 79093748, 79092772, 79089998, 79089993, 79092771, 79092271, 79089994, 79071570, 79089996, 79112925, 79092270, 79089997 |
