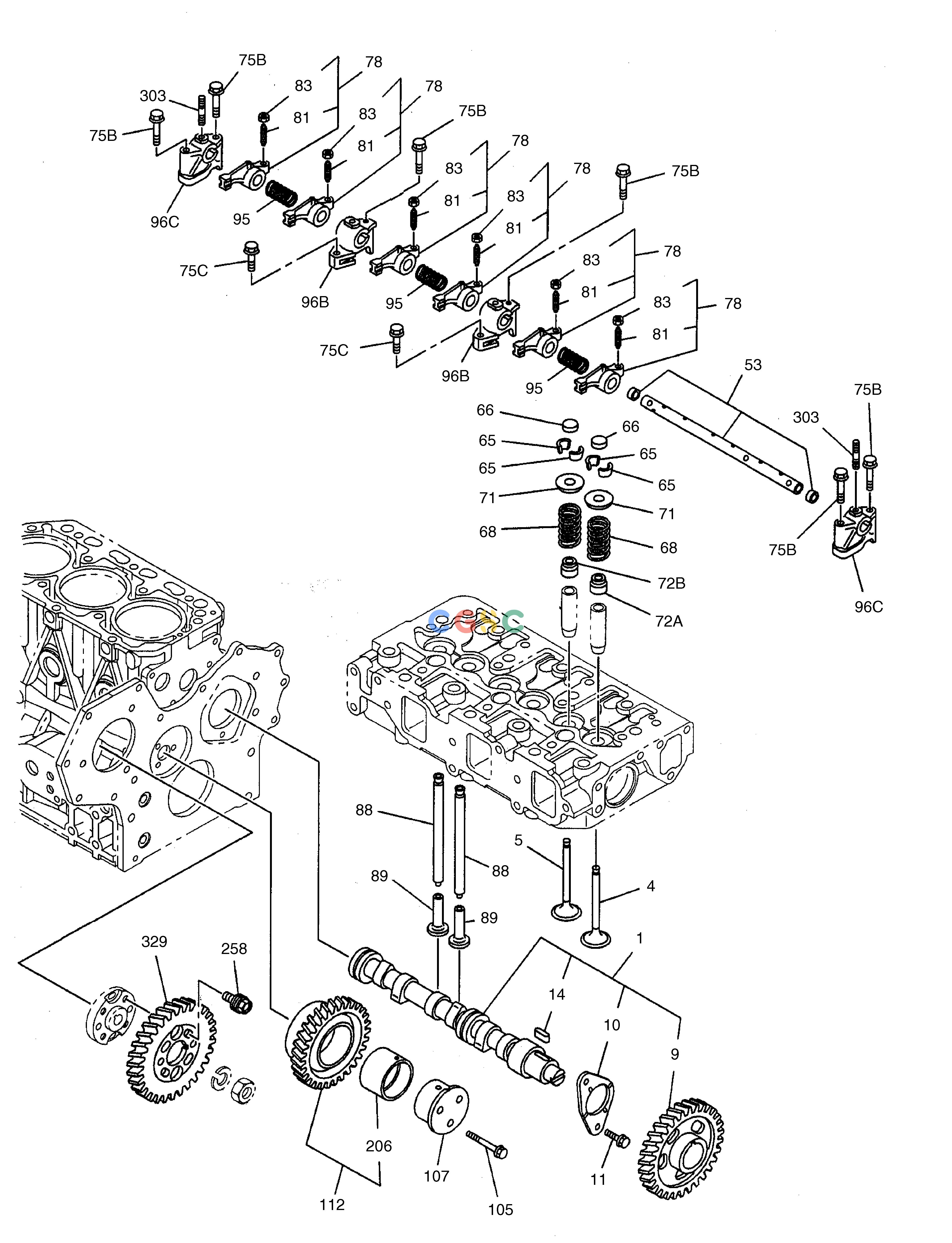

斗山零件查询CAMSHAFT AND VALVE SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
328 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
586400-1830
|
[1] |
CAMSHAFT ASS'Y
|
|
| 10. |
586400-1870
|
[1] |
PLATE
|
|
| 105. |
586400-3250
|
[3] |
BOLT
|
|
| 107. |
586400-0680
|
[1] |
SHAFT
|
|
| 11. |
586400-3180
|
[2] |
BOLT
|
|
| 112. |
586400-0700
|
[1] |
GEAR;IDLE
|
|
| 14. |
586400-2950
|
[1] |
KEY
|
|
| 206. |
586400-0690
|
[1] |
BUSHING
|
|
| 258. |
586400-2030
|
[4] |
BOLT
|
|
| 303. |
586400-0650
|
[3] |
BOLT;STUD
|
|
| 329. |
586400-0710
|
[1] |
GEAR;INJECTION PUMP
|
|
| 4. |
586401-3980
|
[3] |
VALVE;INLET
|
|
| 5. |
586401-3990
|
[3] |
VALVE;EXHAUST
|
|
| 53. |
586400-1350
|
[1] |
SHAFT;ROCKET ARM
|
|
| 65. |
586400-3440
|
[12] |
COLLAR;SPLIT
|
|
| 66. |
586400-1940
|
[6] |
CAP
|
|
| 68. |
586400-2760
|
[6] |
SPRING;VALVE
|
|
| 71. |
586400-2770
|
[6] |
SEAT;SPRING
|
|
| 72A. |
586400-1010
|
[3] |
SEAL;VALVE GUIDE INLET
|
|
| 72B. |
586400-1200
|
[3] |
SEAL;VALVE GUIDE EXHAUST
|
|
| 75B. |
586400-3270
|
[6] |
BOLT M8X50
|
|
| 75C. |
586400-3220
|
[2] |
BOLT
|
|
| 78. |
586400-1380
|
[6] |
ARM;ROCKER
|
|
| 81. |
586400-1920
|
[6] |
SCREW
|
|
| 83. |
586400-1950
|
[6] |
NUT
|
|
| 88. |
586400-2000
|
[6] |
ROD;PUSH
|
|
| 89. |
586400-1990
|
[6] |
TAPPET;VALVE
|
|
| 9. |
586400-1980
|
[1] |
GEAR;CAM SHAFT
|
|
| 95. |
586400-1930
|
[3] |
SPRING
|
|
| 96B. |
586400-0640
|
[2] |
BRACKET;ROCKER ARM SHAFT
|
|
| 96C. |
586400-0630
|
[2] |
BRACKET;ROCKER ARM SHAFT
|
|
