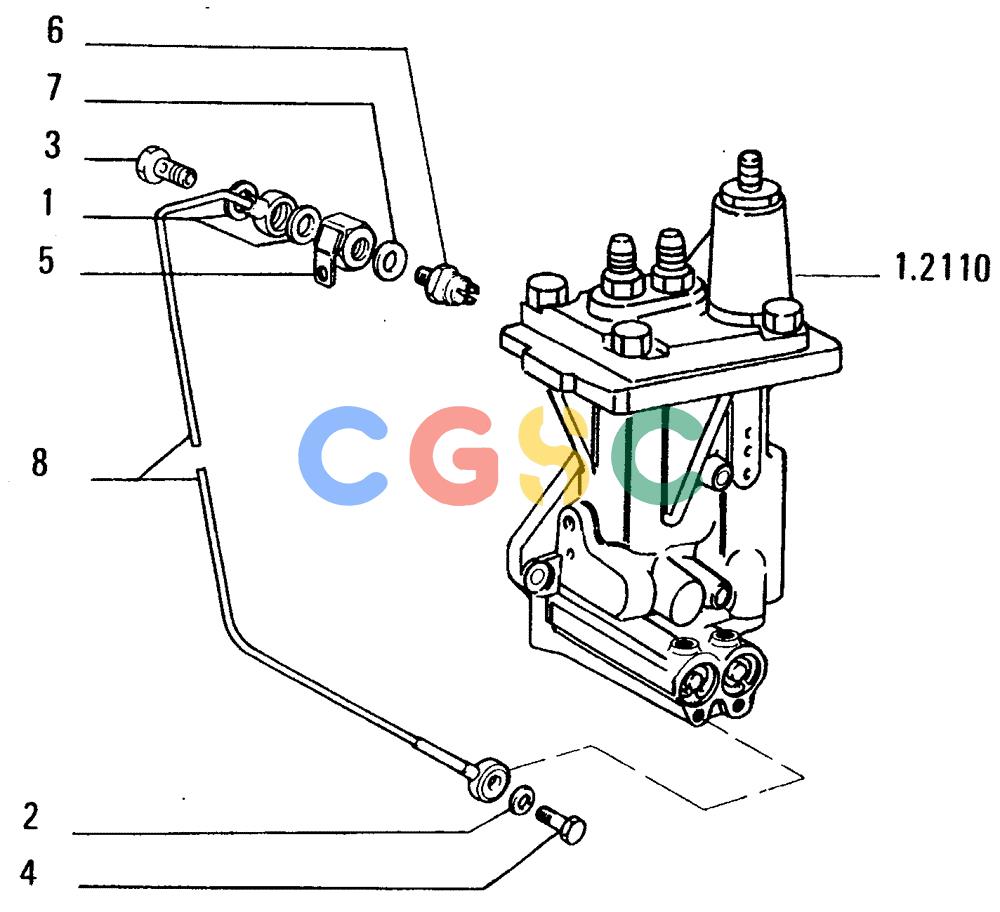

纽荷兰零件查询(FD14E) - CRAWLER DOZER (96.7135[001]) - BACK-UP ALARM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
756 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 10260060 | [2] | SEALING WASHER,8.2mm ID x 14mm OD x 1mm Thk | TTFWASHER, SEALING, , Copper M8.2 x 14 x 1 |
| 2. | 4858606 | [2] | SEAL,10.2mm ID x 16mm OD x 1mm Thk | TTFGASKET 10,2x14 |
| 3. | 11903714 | [1] | BANJO BOLT,M8 x 1.25 x 16mm | LECBOLT, BANJO, M8 x 1.25 x 16 Superseded by part number: 11903711 |
| 4. | 11903814 | [1] | BANJO BOLT,M10 x 1.25 x 19mm | LECFITTING 10x1,25x19 Superseded by part number: 4864080 |
| 5. | 76002365 | [1] | SUPPORT | LEC |
| 6. | 79012600 | [1] | PRESSURE SWITCH | LECSWITCH Superseded by part number: 84182607 |
| 7. | 79086323 | [1] | SEAL,12.7mm ID x 18mm OD x 1.5mm Thk | LECSEAL |
| 8. | 79087201 | [1] | RIGID TUBE,2.5 mm ID, 4 mm OD, 500 mm Length | LECTUBE |
