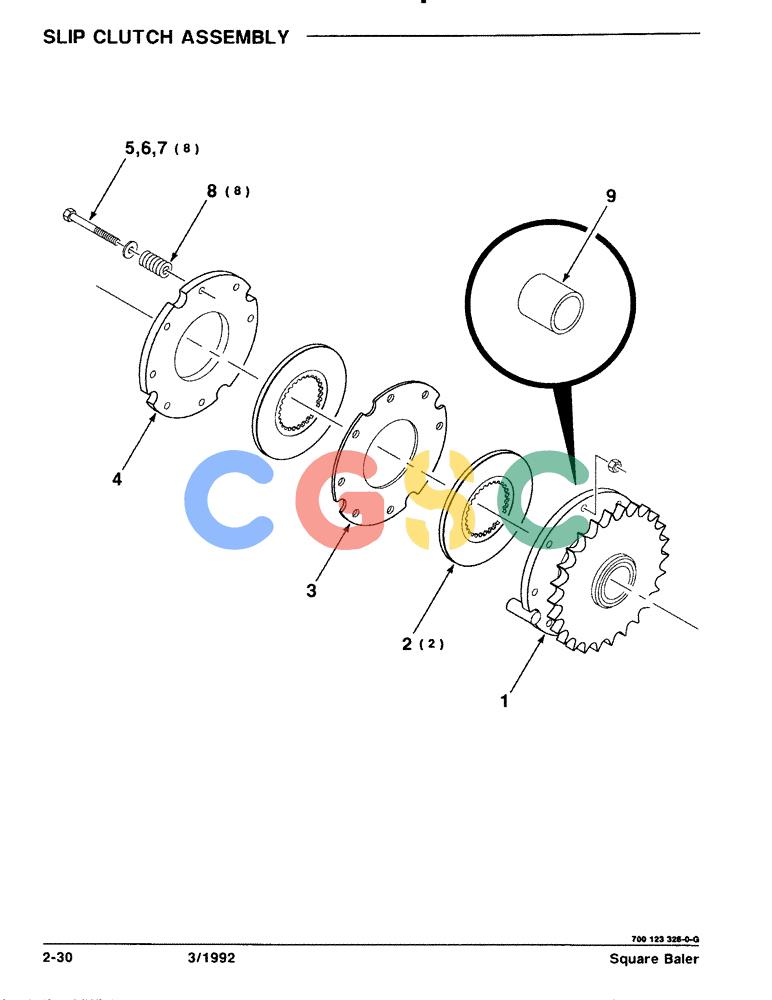

凯斯零件查询(8570) - CASE IH MID-SIZE RECTANGULAR BALER (1/91-12/96) (2-30) - SLIP CLUTCH ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
935 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700123327
|
[1] |
SPROCKET ASSY.
|
CAS
SPROCKET WA (Includes Item 9)
|
| 2. |
700108820
|
[2] |
DISC
|
CAS
ASSEMBLY - FRICTION
|
| 3. |
700112903
|
[1] |
CLUTCH PLATE,106mm ID x 220mm OD x 5mm Thk
|
CAS
PLATE - CLUTCH
|
| 4. |
6522866
|
[1] |
CLUTCH PLATE
|
CAS
PLATE - CLUTCH
|
| 5. |
7772767
|
[8] |
SCREW,Hex, 3/8" - 16 x 3 1/2", Gr 5
|
CAS
3/8-16 X 3-1/2 C Superseded by part number: 88959
|
| 6. |
700709603
|
[8] |
WASHER,3/8"
|
CAS
3/8 WIDE PLAIN WASHER Superseded by part number: 80702
|
| 7. |
74781
|
[8] |
NUT
|
CAS
3/8-16 LHSN Superseded by part number: 231-1406, 231-1406, NS
|
| 8. |
58107
|
[8] |
SPRING
|
IH
- COMPRESSION
|
| 9. |
6565030
|
[1] |
BUSHING,50.98mm ID x 62.63mm OD x 63.69mm L
|
CAS
- BRONZE
|
