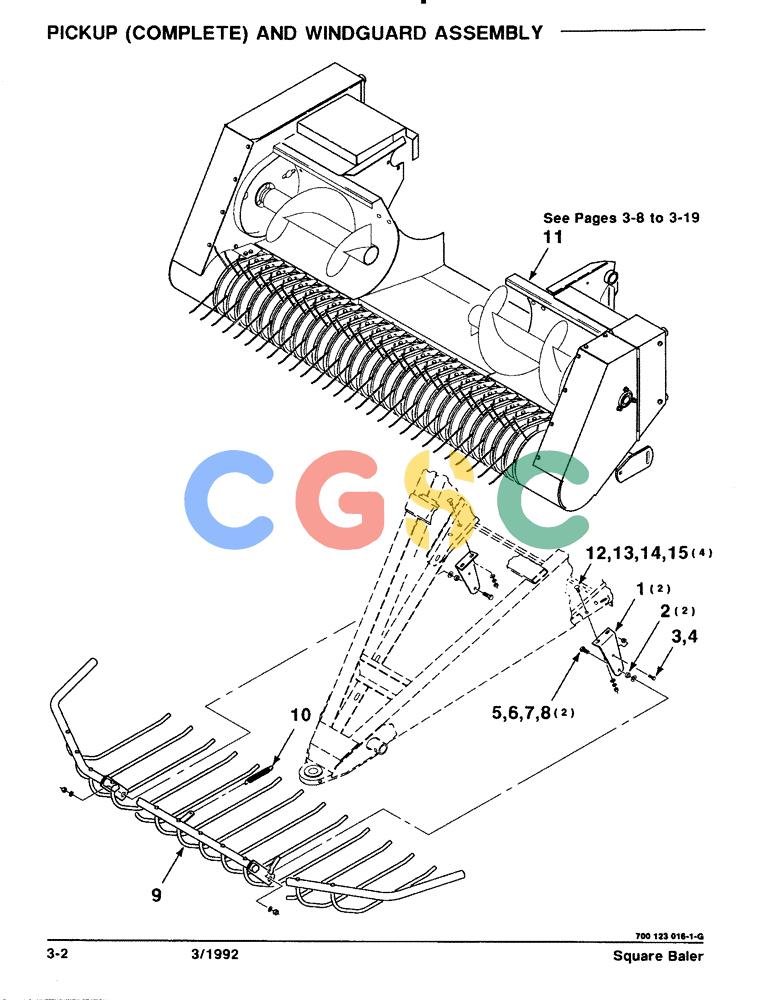

凯斯零件查询(8570) - CASE IH MID-SIZE RECTANGULAR BALER (1/91-12/96) (3-02) - PICKUP, COMPLETE AND WINDGUARD ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
209 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700123787
|
[2] |
SUPPORT
|
CAS
|
| 2. |
700708272
|
[2] |
BUSHING
|
CAS
SPACER
|
| 3. |
703199
|
[1] |
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
|
CAS
3/8-16 X 3/4 C
|
| 4. |
7704141
|
[1] |
EXTENSION
|
NNA
3/8-16 HTLN GR/B Superseded by part number: 231-4116
|
| 5. |
701235
|
[2] |
BOLT,1/2" - 13 x 1 1/2", Gr 5
|
CAS
1/2-13 X 1-1/2 C
|
| 6. |
705541
|
[2] |
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
|
CAS
1/2 HARDENED PLAIN WASHER
|
| 7. |
80679
|
[2] |
LOCK WASHER,1/20.507 CST ZND
|
NH
WASHER, LOCK, 1/2"
|
| 8. |
86516876
|
[2] |
1/2-13 H
|
COVER
|
| 9. |
700123777
|
[1] |
GUARD
|
CAS
WINDGUARD WA
|
| 10. |
758441
|
[1] |
SPRING
|
IH
- EXTENSION
|
| 11. |
700123742
|
[1] |
SENDER UNIT
|
HFI
PICKUP ASSEMBLY
|
| 12. |
700054
|
[4] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
|
CAS
3/8-16 X 1-1/4 RHSNB Superseded by part number: 86508773
|
| 13. |
705533
|
[4] |
WASHER
|
NNA
3/8 HARDENED PLAIN WASHER Superseded by part number: 496-11041, 496-11041, 80702
|
| 14. |
705038
|
[4] |
CONTROL VALVE
|
CAS
3/8" Superseded by part number: 492-11038
|
| 15. |
704023
|
[4] |
NUT,3/8"-16, G5
|
CAS
3/8-16 H Superseded by part number: 280136
|
