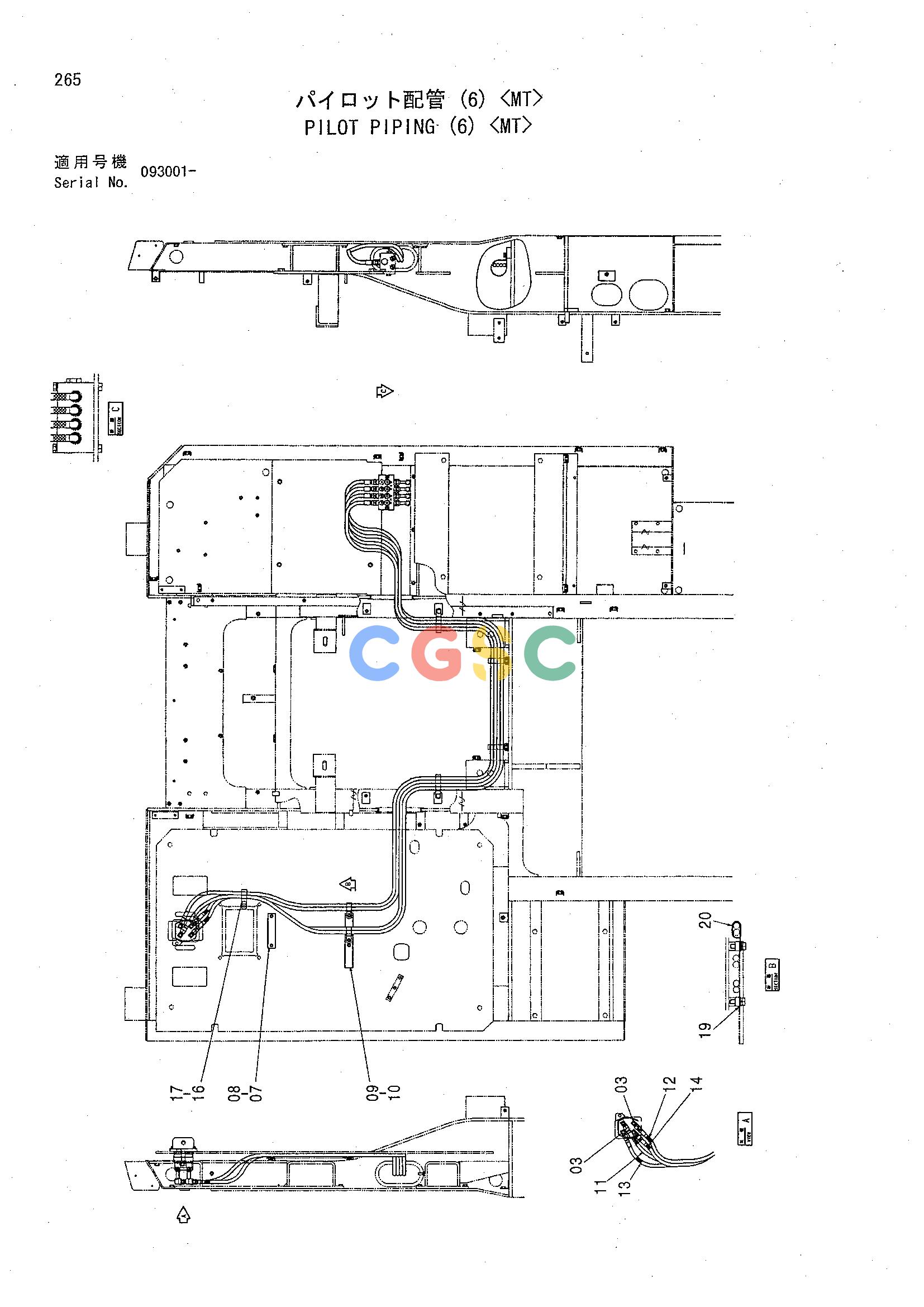

日立零件查询（CHR70）PILOT PIPING (6) <MT> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
241 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 03. | 4278442 | [4] | ELBOW;S | |
| 03A. | 957366 | [1] | O-RING | |
| 07. | 4342692 | [1] | CLAMP;HOSE | |
| 08. | J021020 | [2] | BOLT;SEMS | |
| 08. | J271020 | [2] | BOLT;SEMS | TJ901020 |
| 08. | J271020 | [2] | BOLT;SEMS | TJ222010 |
| 09. | 4436424 | [1] | CLAMP;HOSE | |
| 10. | J021030 | [2] | BOLT;SEMS | |
| 10. | J271030 | [2] | BOLT;SEMS | TJ901030 |
| 10. | J271030 | [2] | BOLT;SEMS | TJ222010 |
| 11. | 4428854 | [1] | HOSE (9) | |
| 12. | 4438392 | [1] | HOSE (10) | |
| 13. | 4428855 | [1] | HOSE (11) | |
| 14. | 4438393 | [1] | HOSE (12) | |
| 16. | 4190291 | [1] | CLIP | |
| 17. | J011016 | [1] | BOLT;SEMS | |
| 17. | J271016 | [1] | BOLT;SEMS | TJ901016 |
| 17. | J271016 | [1] | BOLT;SEMS | TJ222010 |
| 19. | 4383308 | [2] | SPACER | |
| 20. | 4190282 | [1] | CLIP | |
