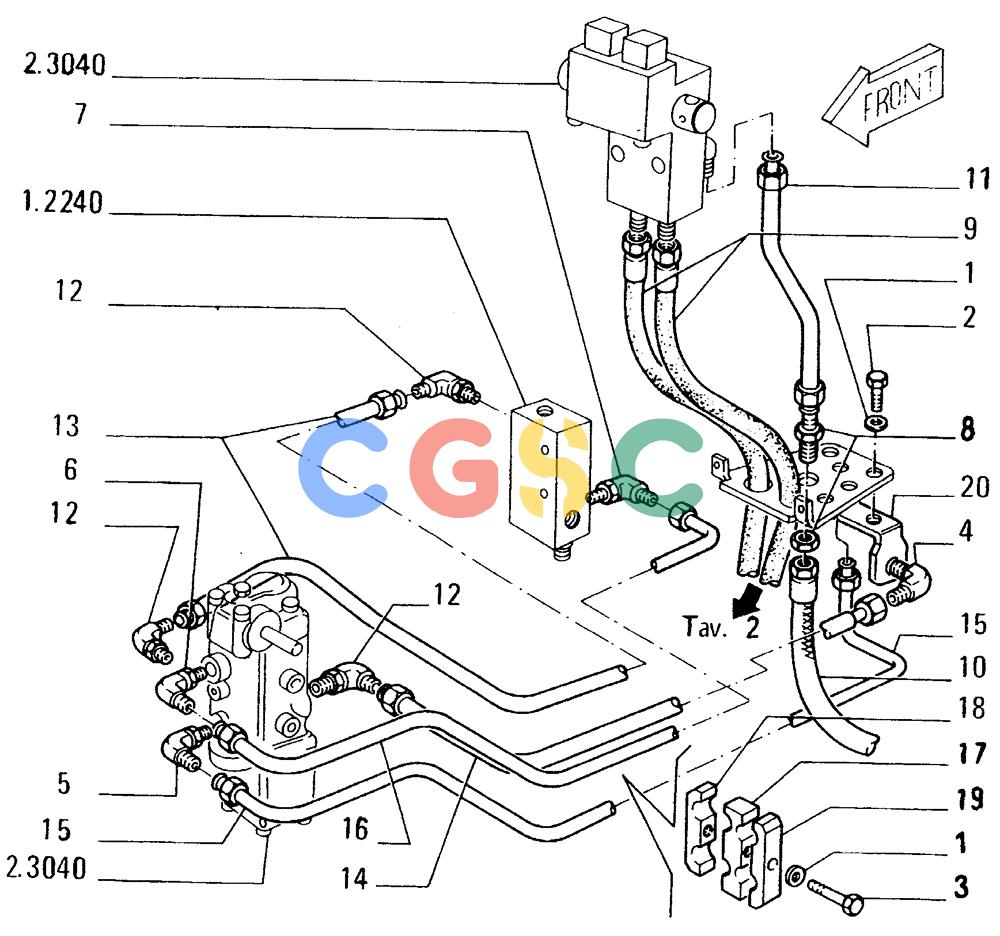

纽荷兰零件查询(FD14E) - CRAWLER DOZER (2.3190[001]) - STEERING CONNECTING PIPING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
632 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 14496531 | [5] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC8,15x17 Superseded by part number: 86624184 |
| 2. | 16043231 | [2] | SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd | LEC |
| 3. | 16044234 | [1] | BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9 | LEC Superseded by part number: 86625003 |
| 4. | 79054306 | [1] | HYD CONNECTOR | LECFITTING |
| 5. | 79054401 | [1] | HYD CONNECTOR | LECFITTING |
| 6. | 79054403 | [1] | HYD CONNECTOR | LECFITTING |
| 7. | 79054423 | [1] | HYD CONNECTOR | LECFITTING Superseded by part number: 79111894, 76344 |
| 8. | 79056750 | [1] | HYD CONNECTOR | LECFITTING |
| 9. | 79078905 | [2] | FLEXIBLE HOSE | LECHOSE ASSY |
| 10. | 79078906 | [1] | FLEXIBLE HOSE | LECHOSE ASSY |
| 11. | 79081525 | [1] | RIGID TUBE | LECTUBE C2707 Superseded by part number: 76017725 |
| 11. | 79096101 | [1] | RIGID TUBE | LECTUBE D2707 Superseded by part number: 76017725 |
| 12. | 79083598 | [3] | HYD CONNECTOR | LECFITTING |
| 13. | 79091804 | [1] | RIGID TUBE | LECTUBE C2707 Superseded by part number: 79096102 |
| 13. | 79096102 | [1] | RIGID TUBE | LECTUBE D2707 |
| 14. | 79091806 | [1] | RIGID TUBE | LECTUBE C2707 Superseded by part number: 79096109 |
| 14. | 79096109 | [1] | RIGID TUBE | LECTUBE D2707 |
| 15. | 79091808 | [1] | RIGID TUBE | LECTUBE C2707 Superseded by part number: 79096110 |
| 15. | 79096110 | [1] | RIGID TUBE | LECTUBE D2707 |
| 16. | 79091810 | [1] | RIGID TUBE | LECTUBE C2707 Superseded by part number: 79096111 |
| 16. | 79096111 | [1] | RIGID TUBE | LECTUBE D2707 |
| 17. | 79096238 | [1] | BRACKET | LECC2707 |
| 18. | 79092157 | [1] | BRACKET | LECC2707 Superseded by part number: 79096239 |
| 18. | 79096239 | [1] | BRACKET | LECD2707 |
| 19. | 79096240 | [1] | BRACKET | LECC2707 |
| 20. | 79092162 | [1] | BRACKET | LEC |
