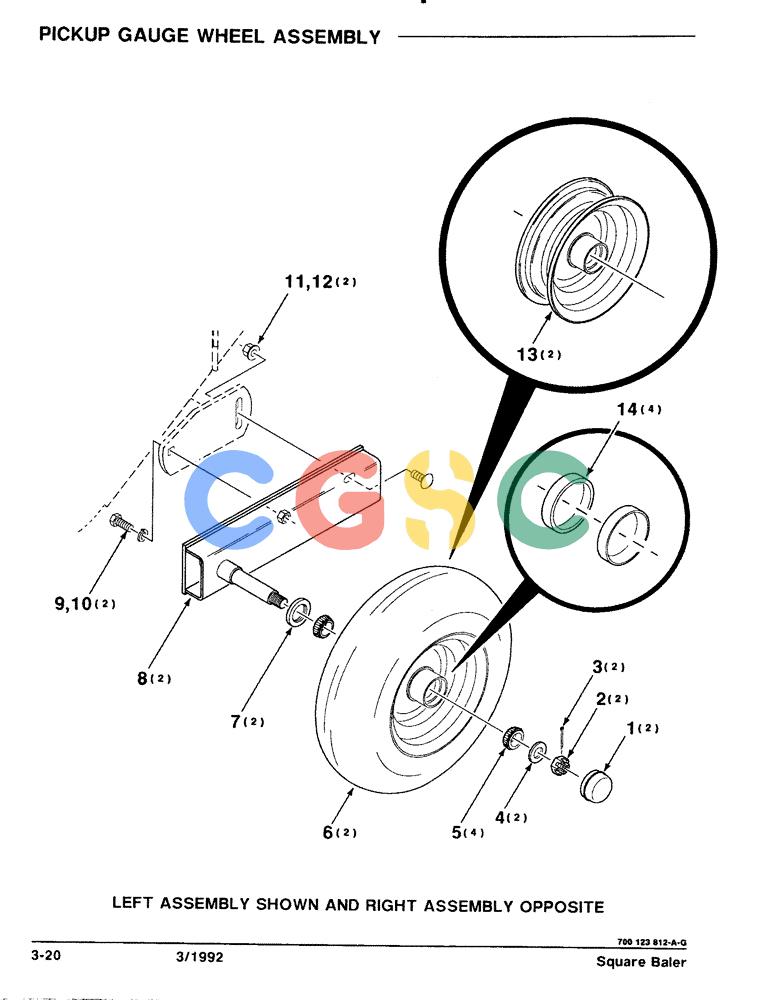

凯斯零件查询(8570) - CASE IH MID-SIZE RECTANGULAR BALER (1/91-12/96) (3-20) - PICKUP GAUGE WHEEL ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
732 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T27814
|
[2] |
CAP
|
CAS
- HUB Superseded by part number: 200734
|
| 2. |
7704208
|
[2] |
SLOTTED NUT
|
CAS
3/4-16 SLOTTED HEX NUT Superseded by part number: 88886
|
| 3. |
432-824
|
[2] |
COTTER PIN,1/8" x 1 1/2"
|
CAS
1/8 X 1-1/2 COTTER PIN Superseded by part number: 80708
|
| 4. |
705566
|
[2] |
WASHER
|
IH
3/4 HARDENED PLAIN WASHER
|
| 5. |
D29266
|
[4] |
ROLLER BEARING,1" ID x 0.58"
|
CAS
BEARING - CONE Superseded by part number: 132710
|
| 6. |
700708049
|
[2] |
WHEEL
|
CAS
AND TIRE ASSEMBLY Superseded by part number: 132709, 132709, 25447, 132709, 25447, 86616348
|
| 7. |
44248
|
[2] |
OIL SEAL
|
CAS
Superseded by part number: 474094R91
|
| 8. |
700123995
|
[2] |
STRUT
|
CAS
WA - WHEEL
|
| 9. |
7701188
|
[2] |
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
|
CAS
1/2-13 X 1-1/4 C Superseded by part number: 87670
|
| 10. |
80679
|
[2] |
LOCK WASHER,1/20.507 CST ZND
|
NH
WASHER, LOCK, 1/2"
|
| 11. |
7700156
|
[2] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5
|
CAS
1/2-13 X 1-1/2 RHSNB Superseded by part number: 280420
|
| 12. |
231-5348
|
[2] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2-13 HFTLN GR/G Superseded by part number: 86521610
|
| 13. |
700708048
|
[2] |
WHEEL ASSY
|
CAS
WHEEL ASSEMBLY (Includes item 14) Superseded by part number: 86616348
|
| 14. |
572564R1
|
[4] |
BEARING CUP
|
IH
CUP - BEARING Superseded by part number: 132709
|
