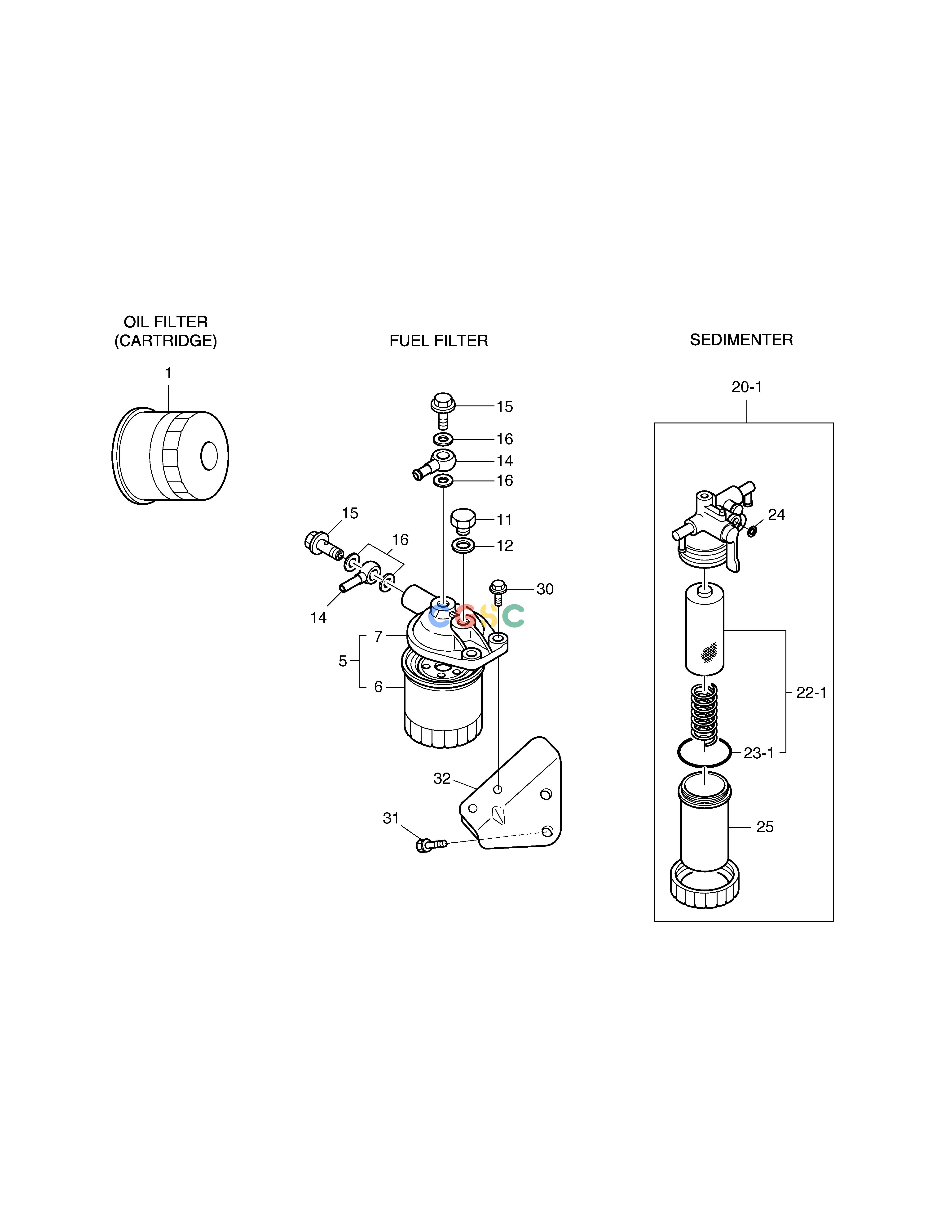

斗山零件查询FILTER SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
229 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
894456-7412
|
[1] |
FILTER;OIL CARTRIDGE
|
|
| 11. |
999202-3140
|
[1] |
PLUG;FUEL FILTER
|
|
| 12. |
909572-0140
|
[1] |
PACKING;PLUG
|
|
| 14. |
894148-3900
|
[2] |
JOINT ASS'Y;EYE
|
|
| 15. |
909906-3251
|
[2] |
BOLT;EYE
|
|
| 16. |
909572-0140
|
[4] |
PACKING;PLUG
|
|
| 20-1. |
897086-2453
|
[1] |
SEDIMENTER ASS'Y;FUEL
|
|
| 22-1. |
897213-3810
|
[1] |
ELEMENT;SEDIMENTER
|
|
| 23-1. |
894155-1830
|
[1] |
O-RING;SEDIMENTER
|
|
| 24. |
897308-9880
|
[2] |
GASKET
|
|
| 25. |
894360-2550
|
[1] |
CASE;SEDIMENTER
|
|
| 30. |
028081-0300
|
[2] |
BOLT
|
|
| 31. |
028181-0200
|
[2] |
BRACKET;EXH SILENCER
|
|
| 32. |
897111-5520
|
[1] |
BRACKET
|
|
| 5. |
897014-2040
|
[1] |
FILTER ASS'Y;FUEL
|
|
| 6. |
894132-9471
|
[1] |
CARTRIDGE;FUEL FILTER
|
|
| 7. |
894132-9480
|
[1] |
COVER
|
|
