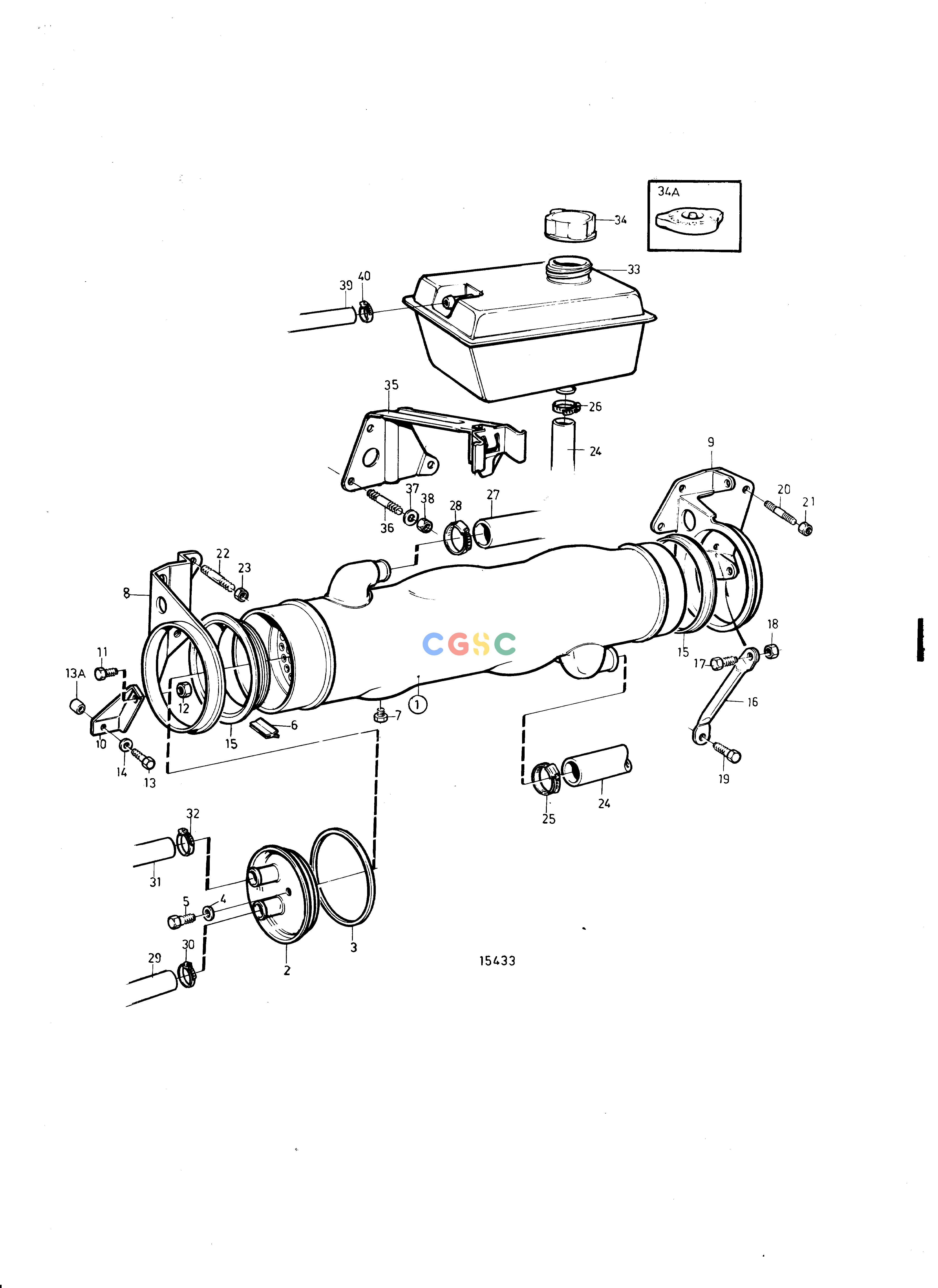

沃尔沃零件查询KAD42B; KAMD42B; TAMD42BCooling SystemHeat Exchanger: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
354 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
861082
|
[1] |
Heat exchanger
|
|
| 2. |
861308
|
[1] |
Cap
|
|
| 3. |
925027
|
[1] |
O-ring
|
|
| 4. |
964106
|
[1] |
Gasket
|
|
| 5. |
963567
|
[1] |
Hexagon screw
|
|
| 6. |
860127
|
[3] |
Sealing strip
|
|
| 7. |
861551
|
[1] |
Plug
|
(861116)
|
| 8. |
860391
|
[1] |
Bracket
|
|
| 9. |
860392
|
[1] |
Bracket
|
|
| 10. |
860451
|
[1] |
Stay
|
|
| 11. |
946440
|
[1] |
Flange screw
|
|
| 12. |
948645
|
[1] |
Flange lock nut
|
|
| 13. |
965226
|
[1] |
Flange screw
|
|
| 14. |
940143
|
[1] |
Toothed washer
|
|
| 15. |
838733
|
[2] |
Back-up ring
|
|
| 16. |
860450
|
[1] |
Stay
|
|
| 17. |
945444
|
[1] |
Flange screw
|
|
| 18. |
948645
|
[1] |
Flange lock nut
|
|
| 19. |
965193
|
[1] |
Flange screw
|
|
| 20. |
953002
|
[4] |
Stud
|
L=125mm
|
| 21. |
971095
|
[4] |
Flange nut
|
|
| 22. |
17378
|
[2] |
Stud
|
L=170mm
|
| 23. |
971095
|
[2] |
Flange nut
|
|
| 24. |
861112
|
[1] |
Hose
|
Heat exchanger-expansion tank-water pump.
|
| 25. |
994562
|
[1] |
Hose clamp
|
|
| 26. |
994559
|
[1] |
Hose clamp
|
|
| 27. |
861109
|
[1] |
Hose
|
Thermostat housing-heat exchanger.
|
| 28. |
994562
|
[1] |
Hose clamp
|
|
| 29. |
861277
|
[1] |
Hose
|
Heat exchanger-after cooler.
|
| 30. |
994560
|
[1] |
Hose clamp
|
|
| 31. |
861278
|
[1] |
Hose
|
Heat exchanger-exhaust pipe elbow.
|
| 32. |
994560
|
[1] |
Hose clamp
|
|
| 33. |
861105
|
[1] |
Expansion tank
|
|
| 34. |
1357775
|
[1] |
Pressure cap
|
|
| 34A. |
845587
|
[1] |
Filler cap
|
When separate expansion tank is being used.
|
| 35. |
861107
|
[1] |
Bracket
|
|
| 36. |
7746630_030
|
|
Stud
|
|
| 37. |
941908
|
[3] |
Spring washer
|
|
| 38. |
971095
|
[3] |
Flange nut
|
|
| 39. |
942700
|
[1] |
Hose
|
L=600mm
|
| 40. |
945652
|
[1] |
Hose clamp
|
|
