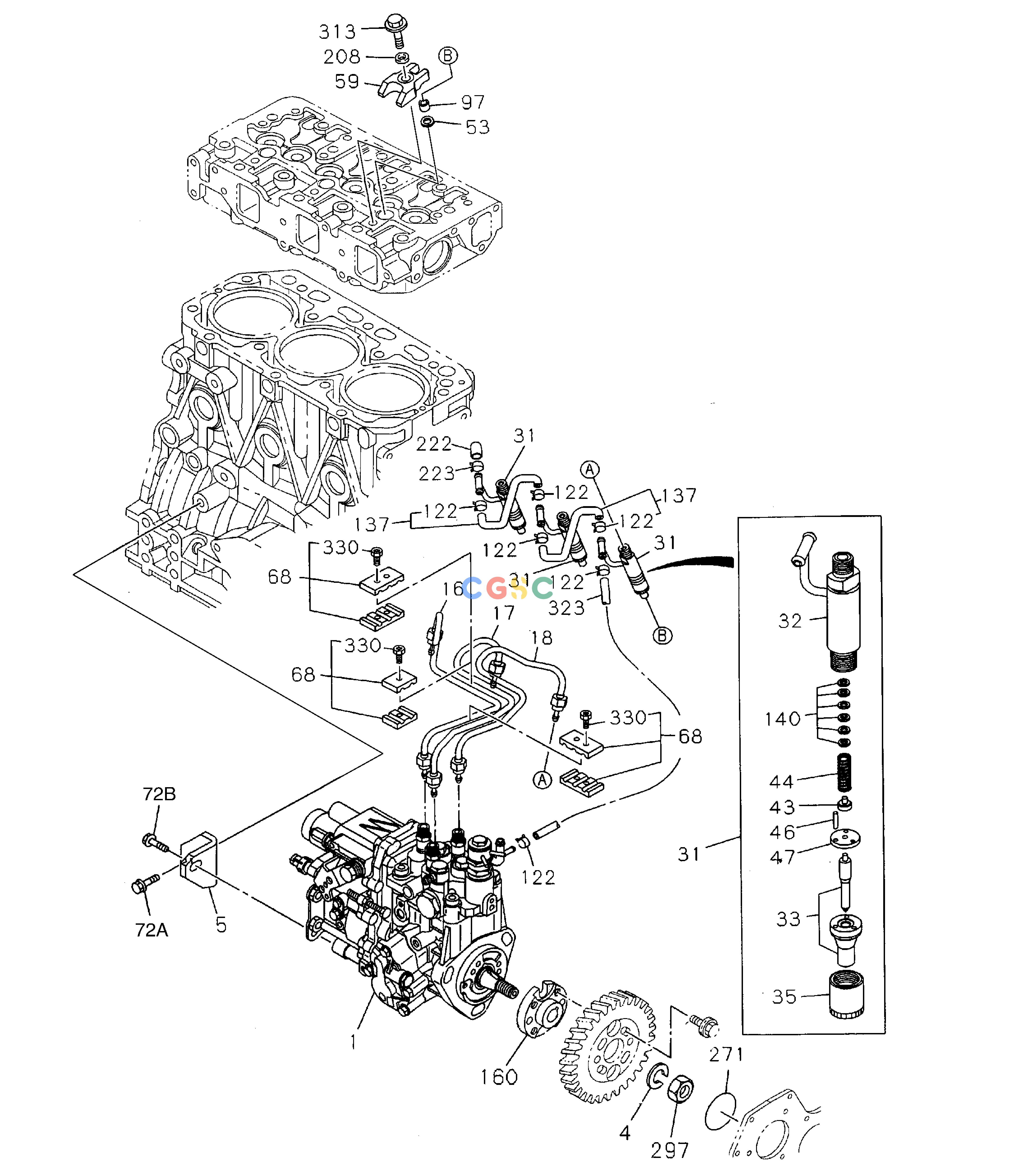

斗山零件查询FUEL INJECTION SYSTEM SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
121 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
586401-4220
|
[1] |
INJECTION PUMP
|
|
| 122. |
586400-1220
|
[6] |
CLIP
|
|
| 137. |
586400-2480
|
[2] |
PIPE
|
|
| 140. |
586400-0200
|
[3] |
SHIM
|
|
| 16. |
586401-3850
|
[1] |
PIPE;INJECTION NO.1
|
|
| 160. |
586400-4080
|
[1] |
SPACER
|
|
| 17. |
586401-3860
|
[1] |
PIPE;INJECTION NO.2
|
|
| 18. |
586401-3870
|
[1] |
PIPE;INJECTION NO.3
|
|
| 208. |
586400-0940
|
[3] |
WAHSER
|
|
| 222. |
586401-4230
|
[1] |
CAP
|
|
| 223. |
586400-1120
|
[1] |
CLIP
|
|
| 271. |
586400-1070
|
[1] |
GASKET
|
|
| 297. |
586400-4090
|
[1] |
NUT
|
|
| 31. |
586400-3490
|
[3] |
NOZZLE ASS'Y
|
|
| 313. |
586400-3240
|
[3] |
BOLT
|
|
| 32. |
586400-0820
|
[3] |
HOLDER
|
|
| 323. |
586400-0870
|
[1] |
PIPE
|
|
| 33. |
586400-2340
|
[3] |
NOZZLE;INJECTION
|
|
| 330. |
586400-2090
|
[3] |
SCREW;CLIP
|
|
| 35. |
586400-0150
|
[3] |
NUT
|
|
| 4. |
586400-4040
|
[1] |
WASHER
|
|
| 43. |
586400-0170
|
[3] |
SEAT
|
|
| 44. |
586400-0160
|
[3] |
SPRING
|
|
| 46. |
586400-0190
|
[6] |
PIN
|
|
| 47. |
586400-0180
|
[3] |
SPACER
|
|
| 5. |
586400-4050
|
[1] |
BRACKET;INJECTION PUMP
|
|
| 53. |
586400-0530
|
[3] |
WASHER
|
|
| 59. |
586400-1400
|
[3] |
CLAMP;NOZZLE
|
|
| 68. |
586400-2080
|
[2] |
CLIP
|
|
| 72A. |
586400-3190
|
[1] |
BOLT
|
|
| 72B. |
586400-3200
|
[1] |
BOLT M8X20
|
|
| 97. |
586400-0660
|
[3] |
NOZZLE;HEAT
|
|
