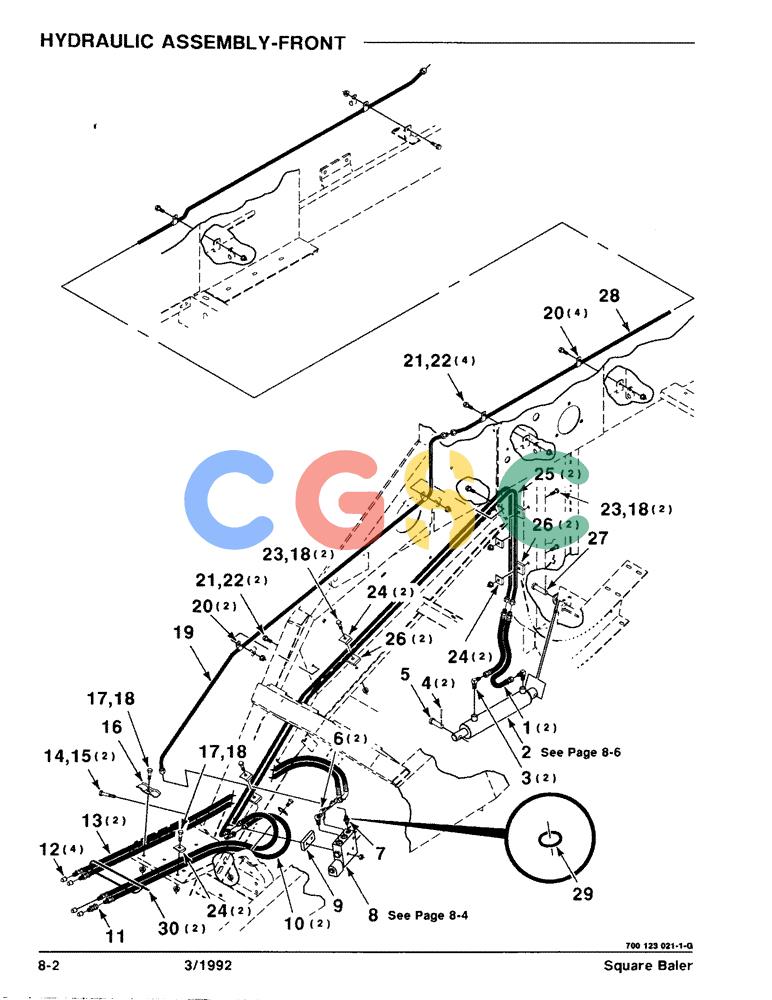

凯斯零件查询(8570) - CASE IH MID-SIZE RECTANGULAR BALER (1/91-12/96) (8-02) - HYDRAULIC ASSEMBLY, FRONT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
114 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7872740
|
[2] |
HOSE
|
CAS
- HYDRAULIC
|
| 2. |
700712122
|
[1] |
CYLINDER
|
CAS
- HYDRAULIC
|
| 3. |
7746555
|
[2] |
ELBOW
|
CAS
Superseded by part number: 76344
|
| 4. |
62182
|
[2] |
PIN
|
CAS
5/32 X 1-1/4 COTTER PIN Superseded by part number: 86523851
|
| 5. |
63693
|
[1] |
PIN
|
CAS
5/8 X 2 CLEVIS PIN
|
| 6. |
7792377
|
[2] |
ELBOW
|
HFI
7/8-14 X 45 DEGREE ELBOW Superseded by part number: 330345
|
| 7. |
700707841
|
[1] |
HYD CONNECTOR
|
CAS
CONNECTOR (Includes Item 29) Superseded by part number: 139398
|
| 8. |
700710638
|
[1] |
VALVE
|
CAS
- CONTROL
|
| 9. |
700123999
|
[1] |
PLATE
|
HFI
- SPACER
|
| 10. |
700710067
|
[2] |
HYDRAULIC HOSE,6.35 mm ID x 2000.00 mm, SAE 100R7
|
CAS
6.35 mm ID x 2000.00 mm, SAE 100R7
|
| 11. |
7846389
|
[1] |
RESTRICTOR
|
CAS
|
| 12. |
746677
|
[4] |
CAP
|
CAS
|
| 13. |
700710060
|
[2] |
HOSE
|
CAS
- HYDRAULIC
|
| 14. |
702928
|
[2] |
BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5
|
CAS
3/8-16 X 2-3/4 C
|
| 15. |
231-4116
|
[2] |
NUT,3/8"-16, GB
|
CAS
3/8-16 HTLN GR/B Superseded by part number: 88902, E64197
|
| 16. |
451641
|
[1] |
CLAMP
|
CAS
|
| 17. |
703603
|
[2] |
SCREW
|
CAS
3/8-16 X 1-1/2 C
|
| 18. |
704734
|
[6] |
FLANGE NUT,Flg, 3/8"-16
|
IH
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 19. |
700710064
|
[1] |
TUBE
|
CAS
LINE - HYDRAULIC
|
| 20. |
751628
|
[6] |
CLAMP
|
CAS
1/4 CLAMP Superseded by part number: 675162
|
| 21. |
7883333
|
[6] |
BOLT,Hex, 5/16" - 18 x 1", Gr 120M
|
CAS
5/16-18 X 1 HWHMS Superseded by part number: 121-108
|
| 22. |
704726
|
[6] |
LOCK NUT,Flg, 5/16"-18
|
CAS
5/16-18 HFTLN GR/G Superseded by part number: 232-5315
|
| 23. |
413-628
|
[4] |
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
|
CAS
3/8-16 X 1-3/4 C Superseded by part number: 72187210, 9706689
|
| 24. |
6280036
|
[6] |
CLAMP
|
CAS
|
| 25. |
700710063
|
[2] |
TUBE
|
CAS
LINE - HYDRAULIC
|
| 26. |
CAS727958
|
[4] |
PAD
|
CAS
|
| 27. |
63495
|
[1] |
CLIP
|
CAS
5/8 X 2-1/2 CLEVIS PIN
|
| 28. |
700710065
|
[1] |
TUBE
|
CAS
LINE - HYDRAULIC
|
| 29. |
738468
|
[1] |
O-RING
|
IH
|
| 30. |
529070
|
[2] |
CABLE TIE,368.3mm L
|
NH
TIE - NYLON
|
