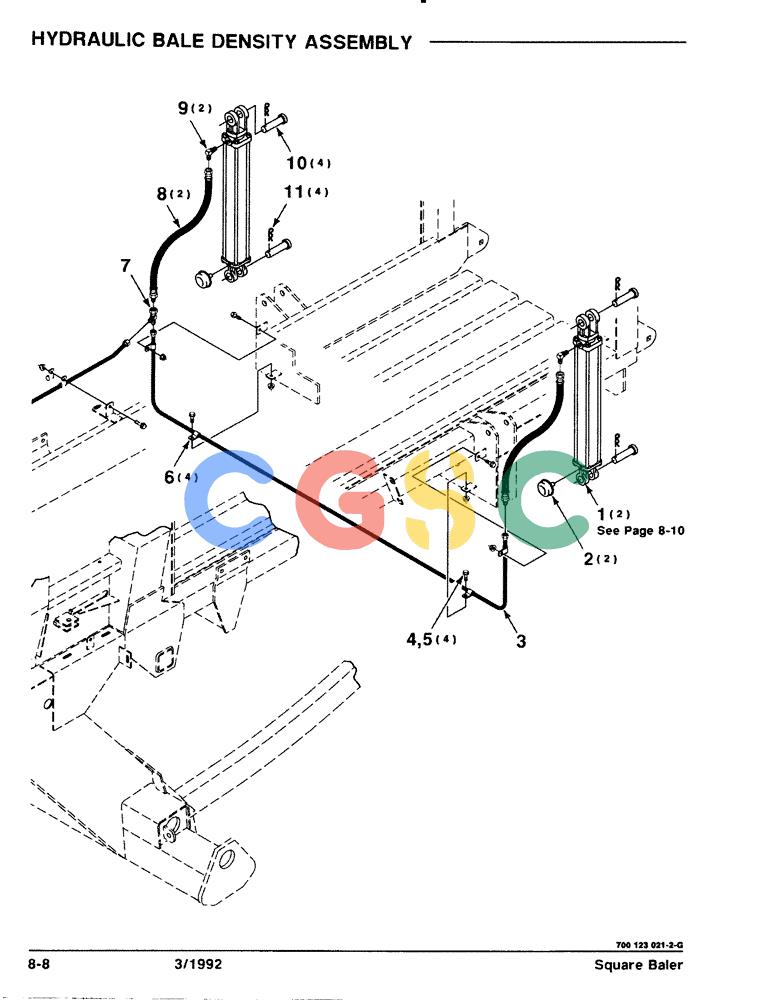

凯斯零件查询(8570) - CASE IH MID-SIZE RECTANGULAR BALER (1/91-12/96) (8-08) - HYDRAULIC BALE DENSITY ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
673 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700711512
|
[2] |
CYLINDER
|
CAS
- HYDRAULIC
|
| 2. |
8799280
|
[2] |
FILTER
|
CAS
|
| 3. |
700710066
|
[1] |
TUBE
|
CAS
LINE - HYDRAULIC
|
| 4. |
7883325
|
[4] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M
|
CAS
5/16-18 X 3/4 HWHMS Superseded by part number: 121-115
|
| 5. |
704726
|
[4] |
LOCK NUT,Flg, 5/16"-18
|
CAS
5/16-18 HFTLN GR/G Superseded by part number: 232-5315
|
| 6. |
751628
|
[4] |
CLAMP
|
CAS
1/4 CLAMP Superseded by part number: 675162
|
| 7. |
700701355
|
[1] |
3 WAY CONNECTION
|
CAS
TEE Superseded by part number: 86513653
|
| 8. |
700710059
|
[2] |
HYDRAULIC HOSE,6.35 mm ID x 530.00 mm, SAE 100R7
|
CAS
6.35 mm ID x 530.00 mm, SAE 100R7
|
| 9. |
7746381
|
[2] |
ELBOW
|
CAS
Superseded by part number: 218-1054
|
| 10. |
763201
|
[4] |
PIN
|
CAS
1 X 3-1/2 CLEVIS PIN Superseded by part number: 427-16350, 427-16350, NLS
|
| 11. |
S120261
|
[4] |
PIN
|
CAS
.148 WIRE HAIR PIN COTTER
|
