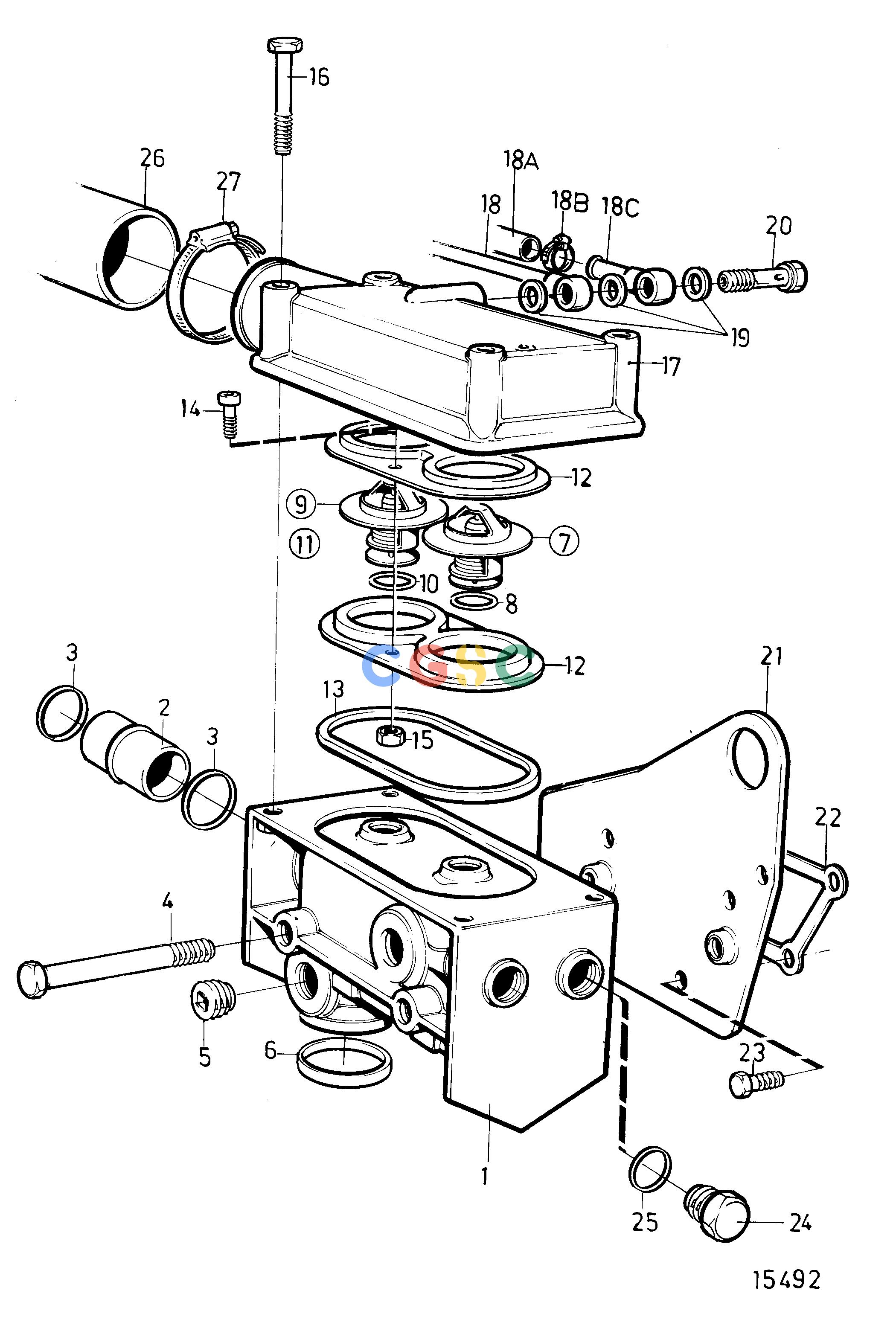

沃尔沃零件查询KAD42B; KAMD42B; TAMD42BCooling SystemThermostat Housing: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
142 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
838704
|
[1] |
Thermostat housing
|
|
| 2. |
838739
|
[1] |
Adapter
|
|
| 3. |
968927
|
[2] |
O-ring
|
|
| 4. |
965183
|
[2] |
Flange screw
|
|
| 5. |
952077
|
[2] |
Plug
|
|
| 6. |
1542198
|
[1] |
Sealing ring
|
|
| 7. |
876128
|
[1] |
Thermostat kit
|
81°C
|
| 8. |
416033
|
[1] |
Sealing ring
|
|
| 9. |
875849
|
[1] |
Thermostat kit
|
With air venting valve., 81°C
|
| 10. |
416033
|
[1] |
Sealing ring
|
|
| 11. |
876145
|
[1] |
Retainer kit
|
|
| 12. |
859229
|
[2] |
Retainer
|
|
| 13. |
838807
|
[1] |
Sealing ring
|
|
| 14. |
963554
|
[2] |
Hexagon screw
|
|
| 15. |
966170
|
[2] |
Lock nut
|
|
| 16. |
965217
|
[4] |
Flange screw
|
|
| 17. |
860449
|
[1] |
Cap
|
|
| 18. |
860215
|
[1] |
Air vent hose
|
Turbo-thermostat housing.
|
| 18A. |
942700
|
[1] |
Hose
|
Turbo-thermostat housing., L=300mm
|
| 18B. |
945652
|
[1] |
Hose clamp
|
|
| 18C. |
858750
|
[1] |
Banjo nipple
|
|
| 19. |
11994
|
[3] |
Gasket
|
|
| 20. |
947975
|
[1] |
Hollow screw
|
|
| 21. |
860518
|
[1] |
Adapter
|
|
| 22. |
1542187
|
[1] |
Gasket
|
|
| 23. |
955295
|
[4] |
Hexagon screw
|
|
| 24. |
960632
|
[1] |
Plug
|
Later prod
|
| 25. |
957181
|
[1] |
Gasket
|
Later prod
|
| 26. |
861110
|
[1] |
Hose
|
Thermostat housing-heat exchanger.
|
| 27. |
943478
|
[1] |
Hose clamp
|
|
