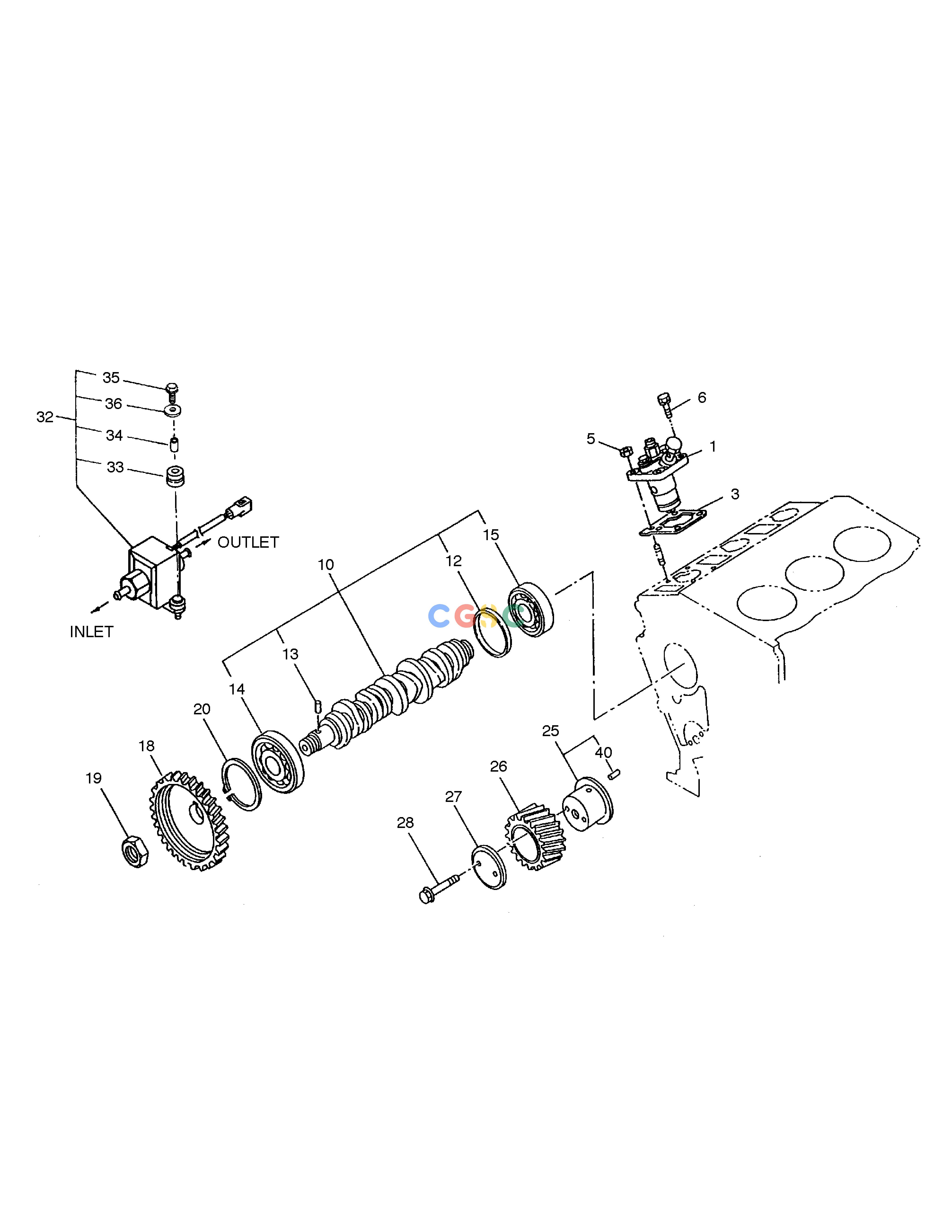

斗山零件查询INJECTION PUMP, CAM SHAFT, IDLE GEAR SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
777 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
897034-5916
|
[3] |
PUMP ASS'Y;INJ PFR
|
|
| 10. |
897062-1412
|
[1] |
SHAFT;CAM INJ PUMP VALVE
|
|
| 12. |
897062-0480
|
[1] |
RING;WEAR CAMSHAFT FIX
|
|
| 13. |
909878-6260
|
[1] |
PIN;CAMSHAFT
|
|
| 14. |
900090-6100
|
[1] |
BEARING;BALL FRONT
|
|
| 15. |
900090-6570
|
[1] |
BEARING;BALL REAR
|
|
| 18. |
897307-4044
|
[1] |
GEAR;INJ PUMP VALVE
|
|
| 19. |
509400-0530
|
[1] |
NUT;CAM GEAR FIX
|
|
| 20. |
909180-1620
|
[1] |
RING;SNAP CAMSHFT FAT
|
|
| 25. |
897129-7801
|
[1] |
SHAFT ASS'Y;IDLE GEAR
|
|
| 26. |
897129-7820
|
[1] |
GEAR;W/BUSH IDLE (A)Z=44
|
|
| 27. |
512535-0051
|
[1] |
COLLAR;THRUST IDLE GEAR
|
|
| 28. |
028090-8450
|
[2] |
BOLT;SHAFT FIX
|
|
| 3. |
897227-2821
|
[1] |
SHIM;INJ PUMP T=0.2
|
|
| 3. |
897227-2831
|
[1] |
SHIM;INJ PUMP T=0.3
|
|
| 3. |
897227-2841
|
[1] |
SHIM;INJ PUMP T=0.4
|
|
| 3. |
897227-2851
|
[1] |
SHIM;INJ PUMP T=0.5
|
|
| 3. |
897227-2861
|
[1] |
SHIM;INJ PUMP T=0.6
|
|
| 3. |
897227-2871
|
[1] |
SHIM;INJ PUMP T=0.7
|
|
| 3. |
897227-2881
|
[1] |
SHIM;INJ PUMP T=0.8
|
|
| 3. |
897227-2891
|
[1] |
SHIM;INJ PUMP T=1.0
|
|
| 3. |
897227-2901
|
[1] |
SHIM;INJ PUMP T=1.2
|
|
| 32. |
894241-1792
|
[1] |
PUMP ASS'Y FUEL ELECT
|
|
| 33. |
894233-6550
|
[2] |
GROMMET;FUEL PUMP
|
|
| 34. |
894238-9070
|
[2] |
COLLAR;FUEL PUMP
|
|
| 35. |
901910-6280
|
[2] |
SCREW;FUEL PUMP
|
|
| 36. |
894233-6570
|
[2] |
WASHER FUEL PUMP
|
|
| 40. |
908160-5100
|
[1] |
PIN;IDLE SHAFT
|
|
| 5. |
091150-2080
|
[6] |
NUT;EXH MANIFOLD
|
|
| 6. |
028080-8200
|
[6] |
BOLT INJ PUMP FIX
|
|
