神钢零件查询(F4HFE613D B007) - ENGINE 5801925172 47748448 CX5080 S T4B (1/13-) (10.001.AF) - ENGINE, PLUG Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
139 次

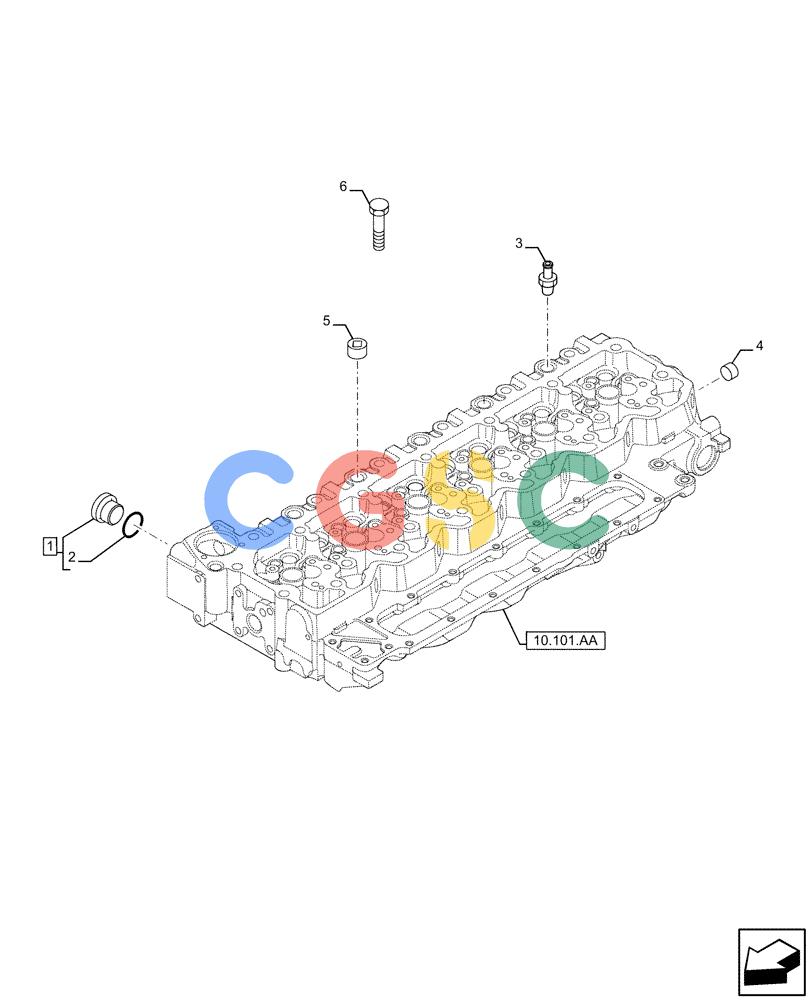

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4895623 | [1] | HEX SOCKET PLUG,M16 x 1.5 | TOR |
| 1. | 4895037 | [1] | EXPANSION PLUG,32.03mm | TOR |
| 2. | 4895625 | [1] | O-RING,13.3mm ID x 2.2mm Width | TOR Superseded by part number: 17281681 |
| 4. | 4893036 | [2] | PIPE PLUG,3/4"-14 NPTF | TOR Superseded by part number: 2854866 |
| 5. | 4895078 | [3] | PIPE PLUG,1/2"-14 | TOR |
| 6. | 4899143 | [1] | SCREW,Hex Flg, M10 x 1.5 x 140 | TOR |
