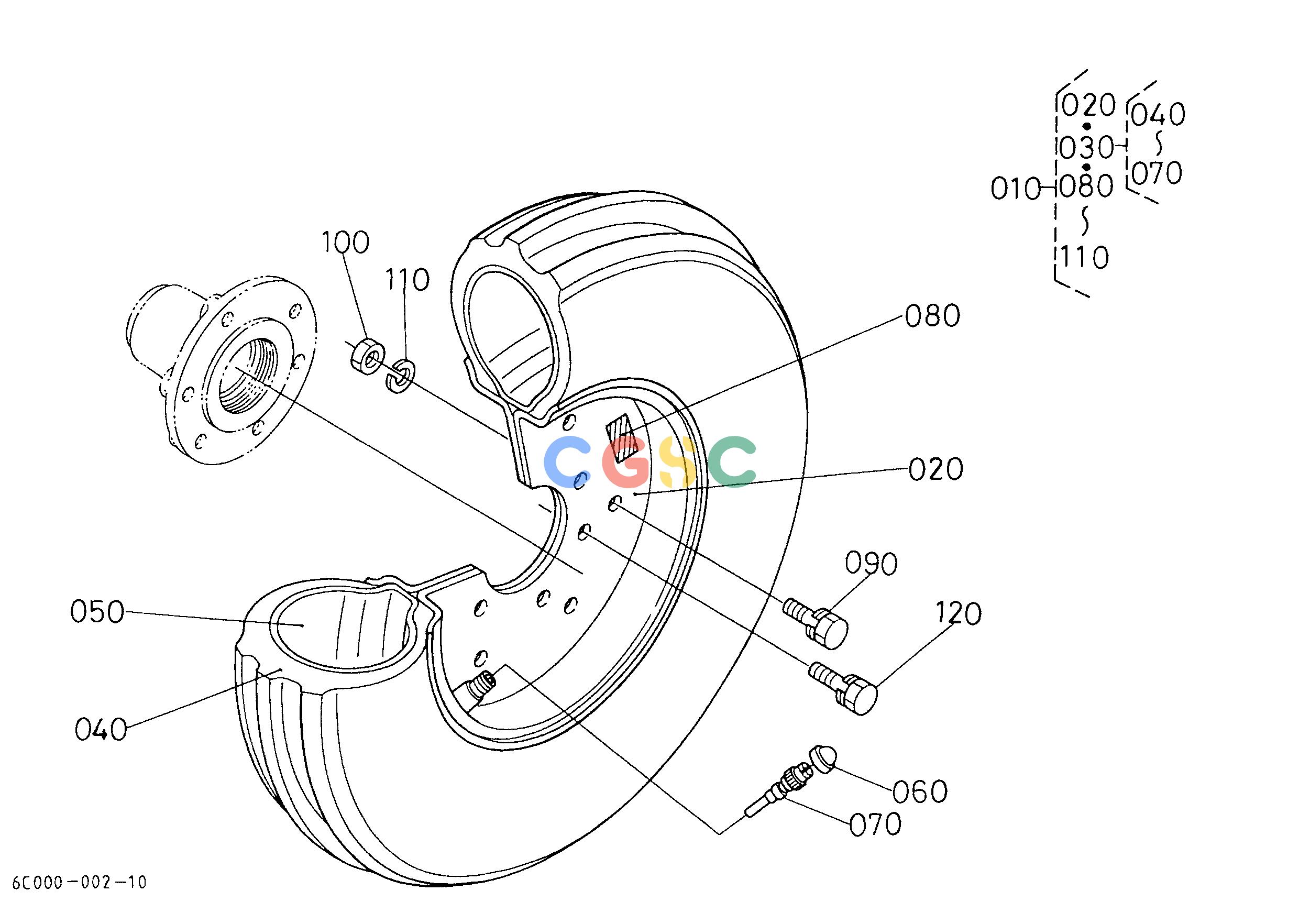

久保田零件查询R10102 FRONT WHEEL (6.50-10) FRONT WHEELEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
912 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04050910
|
[2] |
ASSY TIRE
|
0.0000(lbs); 0.000
|
| 020. |
6C04050920
|
[2] |
WHEEL
|
0.0000(lbs); 0.000
|
| 030. |
6780057350
|
[2] |
ASSY TIRE
|
17.6000(lbs); 8.000
|
| 040. |
6780057360
|
[2] |
TIRE
|
0.0000(lbs); 0.000
|
| 050. |
6780057370
|
[2] |
TUBE
|
2.3100(lbs); 1.050
|
| 060. |
3824011690
|
[2] |
CAP VALVE
|
0.0044(lbs); 0.002
|
| 070. |
3215027740
|
[2] |
CORE VALVE
|
0.0066(lbs); 0.003
|
| 080. |
6C04050930
|
[2] |
LABEL TIRE
|
0.0000(lbs); 0.000
|
| 090. |
0107351230
|
[2] |
BOLT
|
0.0902(lbs); 0.041
|
| 100. |
0207450120
|
[6] |
NUT
|
0.0330(lbs); 0.015
|
| 110. |
0451260120
|
[6] |
WASHER SPRING
|
0.0110(lbs); 0.005
|
| 120. |
0113351230
|
[6] |
BOLT
|
0.0880(lbs); 0.040
|
