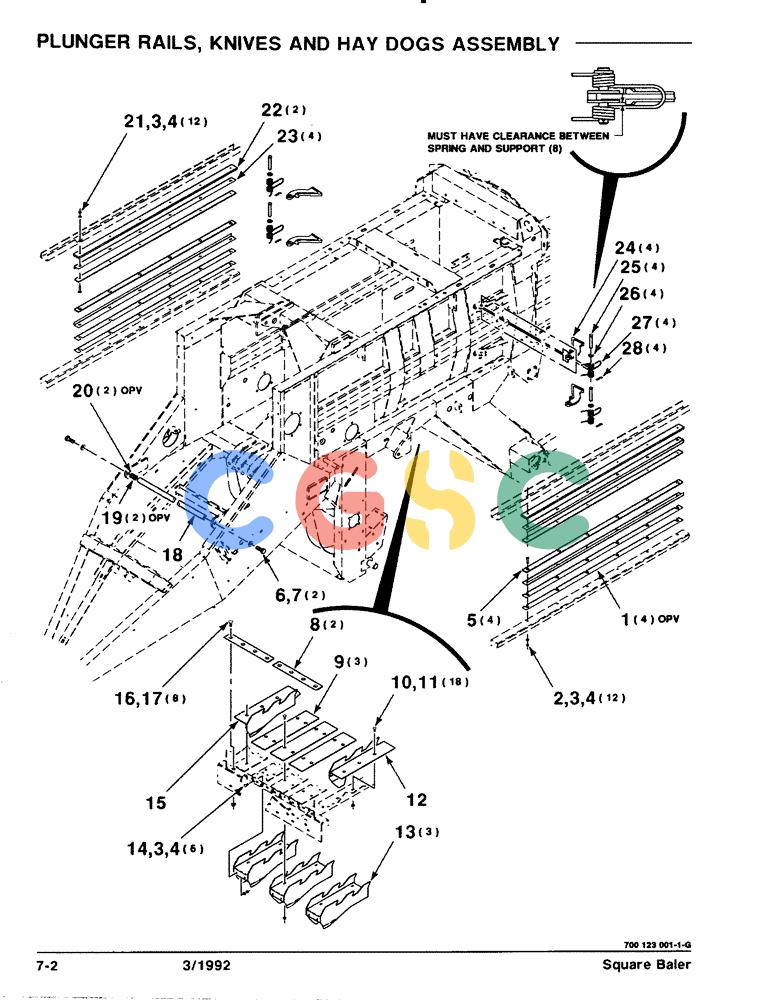

凯斯零件查询(8570) - CASE IH MID-SIZE RECTANGULAR BALER (1/91-12/96) (7-02) - PLUNGER RAILS, KNIVES AND HAY DOGS ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
246 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700123726
|
[4] |
SHIM
|
CAS
- 0.46 / .018
|
| 2. |
771808
|
[12] |
HEX SOC SCREW,Flat Hd, 3/8" - 16 x 1 1/4"
|
CAS
3/8-16 X 1-1/4 HSFCHCS SPL Superseded by part number: 61-43820
|
| 3. |
705038
|
[30] |
CONTROL VALVE
|
CAS
3/8" Superseded by part number: 492-11038
|
| 4. |
704023
|
[30] |
NUT,3/8"-16, G5
|
CAS
3/8-16 H Superseded by part number: 280136
|
| 5. |
700123724
|
[4] |
RAIL
|
CAS
- HARDENED
|
| 6. |
7702160
|
[2] |
BOLT,Hex 3/4" - 10 x 2", Gr 5
|
CAS
3/4-10 X 2 C Superseded by part number: 88557
|
| 7. |
705566
|
[2] |
WASHER
|
IH
3/4 HARDENED PLAIN WASHER
|
| 8. |
700710641
|
[2] |
KNIFE
|
CAS
|
| 9. |
700113616
|
[3] |
WEAR PLATE
|
CAS
PLATE - WEAR
|
| 10. |
707042
|
[18] |
BOLT,#3, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 X 1 PLOW BOLT Superseded by part number: 86516317
|
| 11. |
704734
|
[18] |
FLANGE NUT,Flg, 3/8"-16
|
IH
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 12. |
700123733
|
[1] |
DRIVE DOG
|
CAS
HAY DOG WA - LEFT
|
| 13. |
700123728
|
[3] |
DRIVE DOG
|
CAS
HAY DOG WA
|
| 14. |
700047
|
[6] |
BOLT
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
| 15. |
700123734
|
[1] |
DRIVE DOG
|
CAS
HAY DOG WA - RIGHT
|
| 16. |
707448
|
[8] |
BOLT
|
CAS
1/2-13 X 1-1/2 PLOW BOLT Superseded by part number: 419-3824
|
| 17. |
231-5348
|
[8] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2-13 HFTLN GR/G Superseded by part number: 86521610
|
| 18. |
700123494
|
[1] |
SUPPORT
|
CAS
|
| 19. |
52183
|
[2] |
BUSHING
|
CAS
3/4 X 18 GAUGE NRMB Superseded by part number: Z52183
|
| 20. |
852087
|
[2] |
BUSHING
|
HFI
3/4 X 10 GAUGE NRMB Superseded by part number: 95-81051
|
| 21. |
8701377
|
[12] |
HEX SOC SCREW,Flat Hd, CSK, 3/8" - 16 x 1 3/4"
|
CAS
3/8-16 X 1-3/4 HSFCHCS SPL Superseded by part number: 87846
|
| 22. |
700123725
|
[2] |
RAIL
|
CAS
|
| 23. |
700123727
|
[4] |
ANGLE
|
CAS
- SHIELD
|
| 24. |
6529473
|
[4] |
DRIVE DOG
|
CAS
HAY DOG Superseded by part number: 700137654
|
| 25. |
700706685
|
[4] |
PIN
|
CAS
5/8 X 3-3/4 CLEVIS PIN Superseded by part number: 439-11060
|
| 26. |
NLS
|
[4] |
NO LONGER SERVICED
|
BAS
5/8 HARDENED PLAIN WASHER
|
| 27. |
700706376
|
[4] |
SPRING
|
CAS
- TORSION Superseded by part number: 84806594
|
| 28. |
S120261
|
[4] |
PIN
|
CAS
.148 WIRE HAIRPIN COTTER
|
