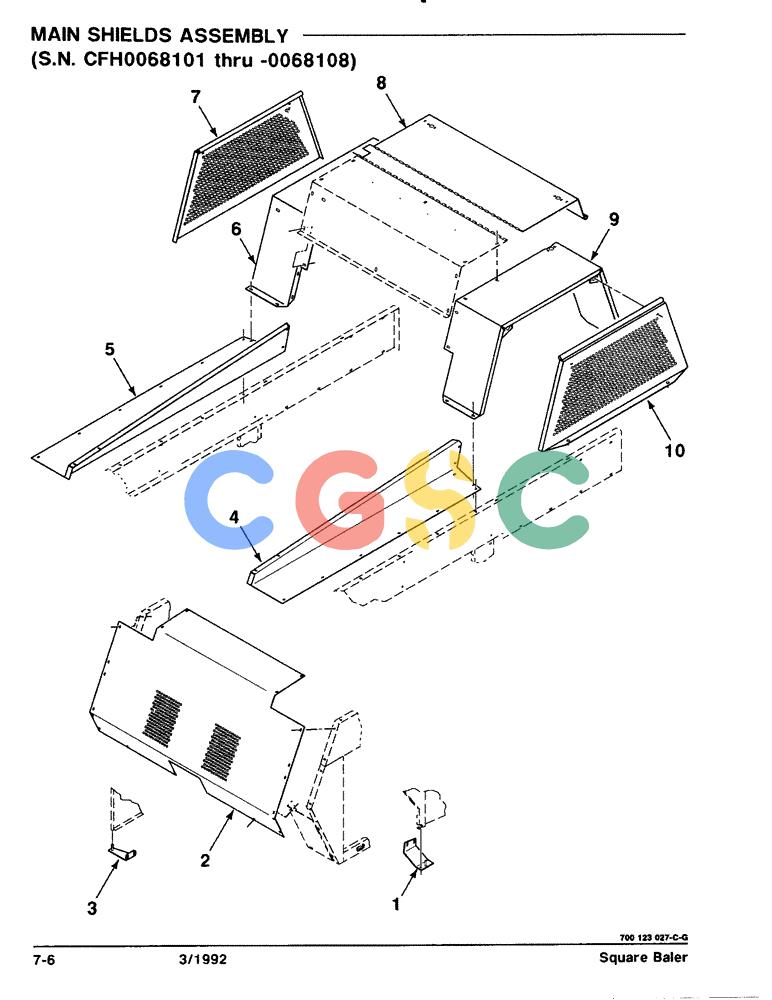

凯斯零件查询(8570) - CASE IH MID-SIZE RECTANGULAR BALER (1/91-12/96) (7-06) - MAIN SHIELDS ASSEMBLY, SERIAL NO. CFH0068101 THRU AND UP TO 0068108 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
781 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700123954
|
[1] |
SUPPORT
|
CAS
- LEFT
|
| 2. |
700123930
|
[1] |
SHIELD
|
CAS
- FRONT
|
| 3. |
700123955
|
[1] |
SUPPORT
|
CAS
- RIGHT
|
| 4. |
700123945
|
[1] |
SHIELD
|
CAS
- LEFT, TOP
|
| 5. |
700123946
|
[1] |
SHIELD
|
CAS
- RIGHT, TOP
|
| 6. |
700123905
|
[1] |
FUNNEL
|
CAS
FRAME - RIGHT
|
| 7. |
700123898
|
[1] |
SHIELD
|
CAS
CAP - END, RIGHT
|
| 8. |
700123903
|
[1] |
SUPPORT
|
CAS
SHIELD - KNOTTER, TOP
|
| 9. |
700123904
|
[1] |
FUNNEL
|
CAS
FRAME - LEFT
|
| 10. |
700123897
|
[1] |
SHIELD
|
HFI
- LEFT
|
