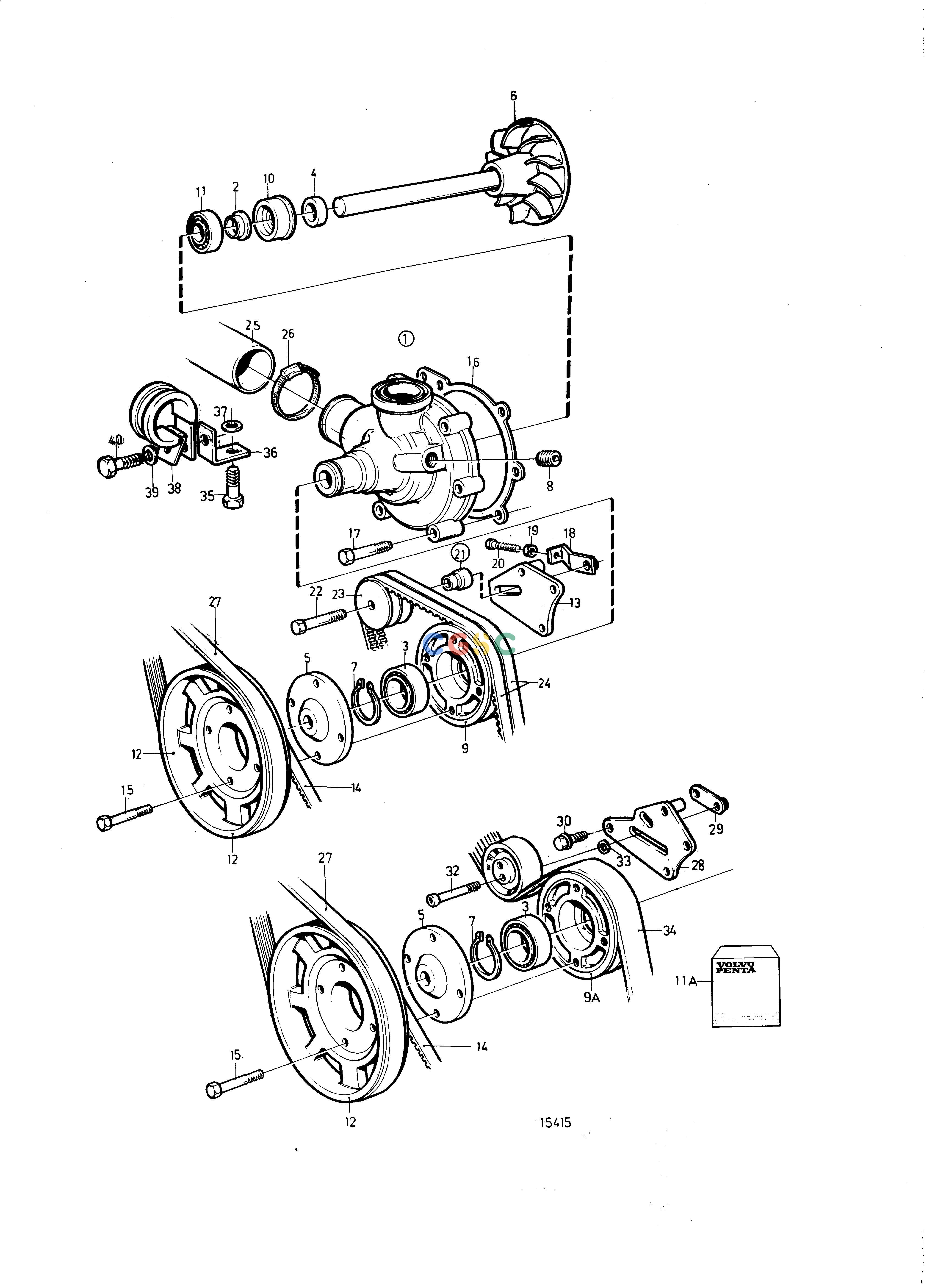

沃尔沃零件查询KAD42B; KAMD42B; TAMD42BCooling SystemWater Pump: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
272 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
860452
|
[1] |
Water pump
|
For V-belt., SN-2204208023
|
| 1. |
861549
|
[1] |
Water pump
|
For multi-V-belt., SN2204208024-
|
| 2. |
70913
|
[1] |
Deflector
|
Included in overhaul kit.
|
| 3. |
181538
|
[1] |
Ball bearing
|
Included in overhaul kit.
|
| 4. |
421306
|
[1] |
Wear ring
|
Included in overhaul kit.
|
| 5. |
860455
|
[1] |
Hub
|
|
| 6. |
|
|
|
Included in overhaul kit.
|
| 7. |
914462
|
[1] |
Snap ring
|
Included in overhaul kit.
|
| 8. |
479977
|
[1] |
Plug
|
(952077)
|
| 9. |
1542235
|
[1] |
Pulley
|
For V-belt., For 860452
|
| 9. |
|
|
|
SN2204208024-
|
| 9A. |
861541
|
[1] |
Pulley
|
For multi-V-belt., For 861549
|
| 10. |
1545283
|
[1] |
Sealing ring
|
Included in overhaul kit.
|
| 11. |
1660609
|
[1] |
Ball bearing
|
Included in overhaul kit.
|
| 11A. |
876544
|
[1] |
Repair kit
|
See group 99
|
| 12. |
860454
|
[1] |
Pulley
|
|
| 13. |
860610
|
[1] |
Bracket
|
|
| 14. |
977542
|
[1] |
V-belt
|
|
| 15. |
947760
|
[4] |
Flange screw
|
|
| 16. |
859027
|
[1] |
Gasket
|
Included in overhaul kit.
|
| 17. |
947760
|
[6] |
Flange screw
|
|
| 18. |
860658
|
[1] |
Tensioner
|
M6, SN-2204207319
|
| 18. |
|
|
|
Repl by 861672
|
| 18. |
861672
|
[1] |
Tensioner
|
M8, SN2204207320-
|
| 19. |
945407
|
[1] |
Flange nut
|
M6, SN-2204207319
|
| 19. |
968862
|
[1] |
Nut
|
M8, SN2204207320-
|
| 20. |
1328811
|
[1] |
Screw
|
M6, SN-2204207319
|
| 20. |
860928
|
[1] |
Tensioning screw
|
M8, SN2204207320-
|
| 21. |
876562
|
[1] |
Mounting kit
|
|
| 22. |
965187
|
[1] |
Flange screw
|
|
| 23. |
861557
|
[1] |
Tension pulley
|
For V-belt., (860714)
|
| 24. |
976483
|
[1] |
V-belt, v-belt
|
|
| 25. |
861113
|
[1] |
Hose
|
Heat exchanger-expansion tank-water pump.
|
| 26. |
994562
|
[1] |
Hose clamp
|
|
| 28. |
861560
|
[1] |
Bracket
|
|
| 29. |
861652
|
[1] |
Lock washer
|
|
| 30. |
946441
|
[1] |
Flange screw
|
|
| 31. |
861563
|
[1] |
Tension pulley
|
For multi-V-belt.
|
| 32. |
959245
|
[1] |
Hex. socket screw
|
|
| 33. |
960144
|
[1] |
Washer
|
|
| 34. |
861564
|
[1] |
Drive belt, multi-V
|
|
| 35. |
|
|
|
See group 22
|
| 36. |
846780
|
[1] |
Bracket
|
|
| 37. |
955894
|
[1] |
Washer
|
|
| 38. |
952635
|
[1] |
Clamp
|
|
| 39. |
955893
|
[1] |
Washer
|
|
| 40. |
968855
|
[1] |
Flange screw
|
|
