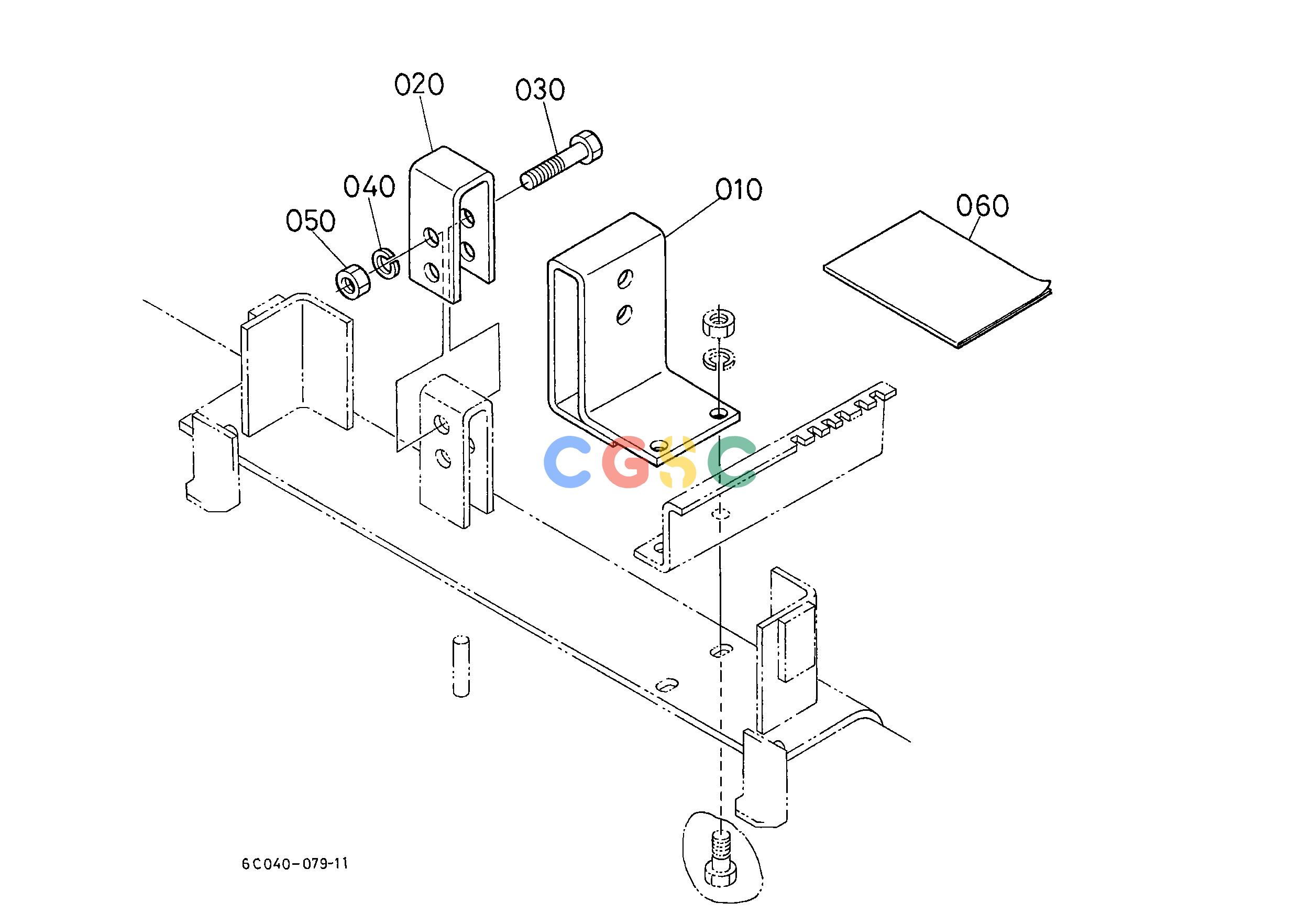

久保田零件查询T10200 EXTENSION STOPPER ## MOUNTING THE MOWER(RC60-24B)TO THE TRACTOR WITH FARM TIRES(REAR 11.2-16) ACCESSORIESEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
870 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04077210
|
[1] |
STAY MOWER LH
|
2.3980(lbs); 1.090
|
| 020. |
6C04077220
|
[1] |
STAY MOWER RH
|
0.6160(lbs); 0.280
|
| 030. |
0117351255
|
[2] |
BOLT
|
0.1210(lbs); 0.055
|
| 040. |
0451260120
|
[2] |
WASHER SPRING
|
0.0110(lbs); 0.005
|
| 050. |
0217450120
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
| 060. |
6C04077230
|
[1] |
MANUAL ASSEMBLY
|
0.0066(lbs); 0.003
|
