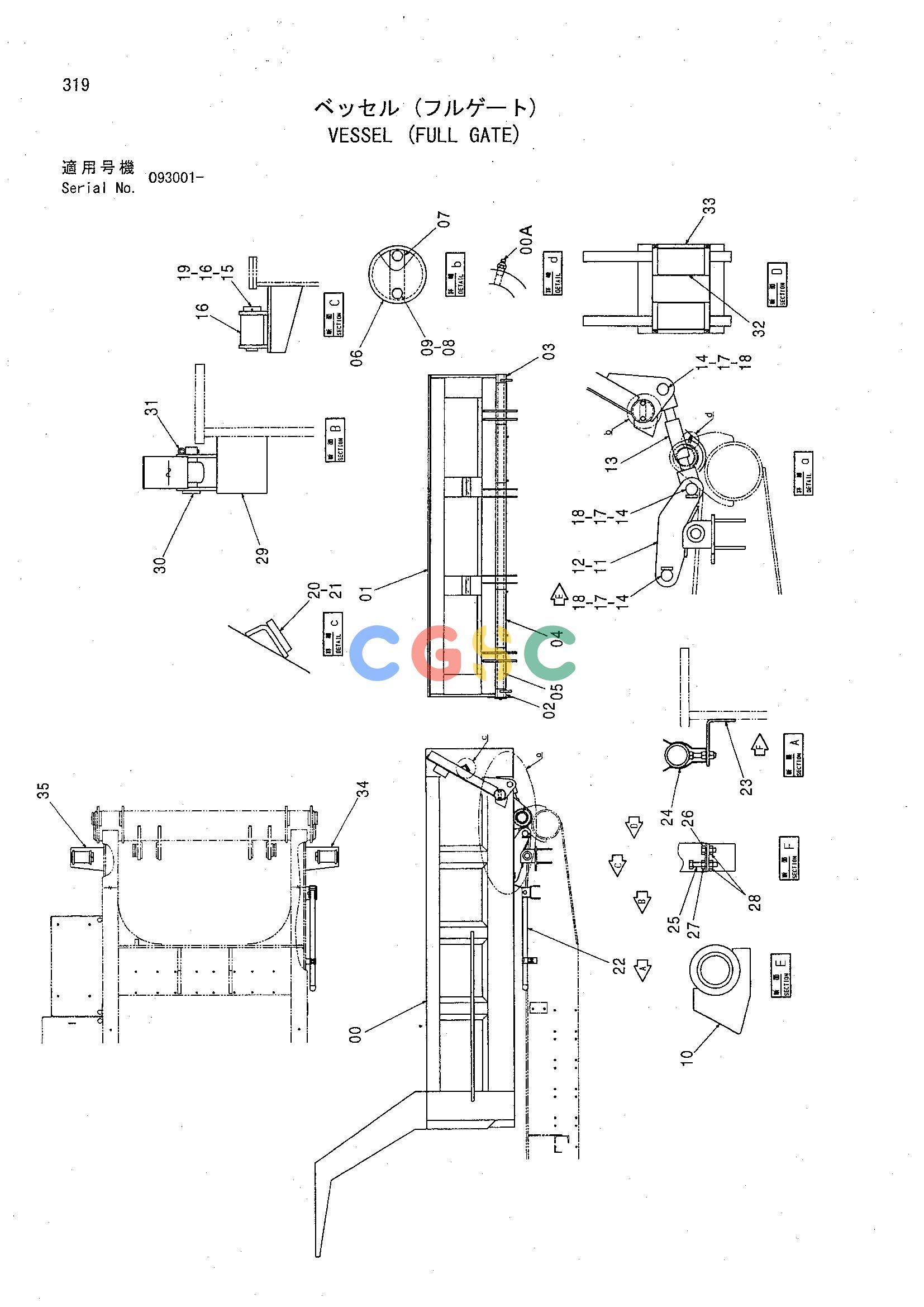

日立零件查询（CHR70）VESSEL (FULL GATE) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
852 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00-33. | 4437520 | [1] | BOX | |
| 00. | 4481454 | [1] | BODY | |
| 00A. | J75481 | [2] | FITTING;GREASE | |
| 01. | 4481455 | [1] | GATE | |
| 02. | 4481456 | [1] | BRACKET;(L) | |
| 03. | 4481457 | [1] | BRACKET;(R) | |
| 04. | 4481458 | [2] | HINGE | |
| 05. | 4481459 | [1] | SHAFT | |
| 06. | 4481460 | [2] | COVER | |
| 07. | 4481461 | [2] | STOPPER | |
| 08. | J900830 | [4] | BOLT | |
| 09. | A590908 | [4] | WASHER;SPRING | |
| 10. | 4481464 | [4] | BRACKET | |
| 11. | 4481465 | [1] | RINK (R) | |
| 12. | 4481466 | [1] | RINK (L) | |
| 13. | 4481467 | [2] | ROD | |
| 14. | 4481468 | [6] | PIN | |
| 15. | 4481469 | [2] | PIN | |
| 16. | 4481470 | [2] | BOSS | |
| 17. | 4146061 | [8] | FITTING;GREASE | |
| 18. | A766063 | [6] | PIN;SPLIT | |
| 19. | A766080 | [2] | PIN;SPLIT | |
| 20. | 4481474 | [2] | RUBBER;CUSHION | |
| 21. | M470825 | [4] | SCREW | |
| 22. | 4481497 | [1] | BAR | |
| 23. | 4481498 | [1] | HOLDER | |
| 24. | 4481499 | [1] | STAY | |
| 25. | 4282875 | [1] | BOLT | |
| 26. | J900616 | [1] | BOLT | |
| 27. | M500605 | [1] | NUT | |
| 28. | M500605 | [2] | NUT | |
| 29. | 4481504 | [1] | BRACKET | |
| 30. | 4481505 | [1] | PIN | |
| 31. | A764025 | [1] | PIN;SPLIT | |
| 32. | 4362025 | [4] | BUSHING | |
| 33. | 4065687 | [4] | SEAL;DUST | |
| 34. | 7038741 | [1] | BRACKET;(L) | |
| 35. | 7038742 | [1] | BRACKET;(R) | |
