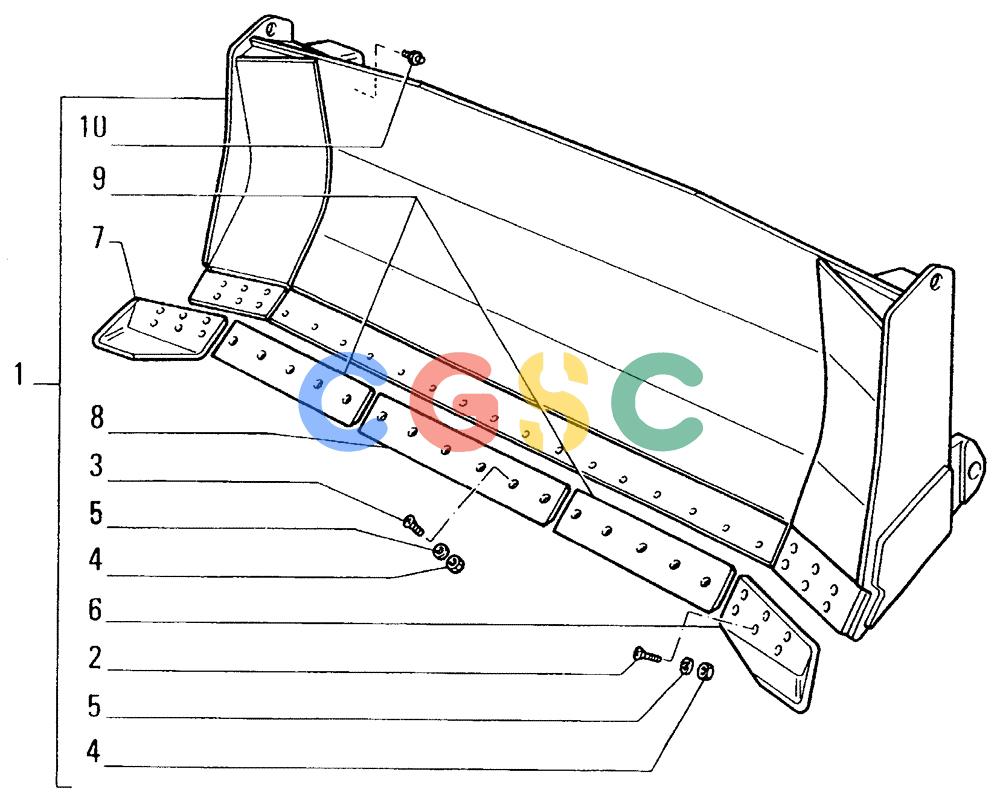

纽荷兰零件查询(FD14E) - CRAWLER DOZER (93.4680[001]) - SEMI-U MOLDBOARD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
818 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79076649 | [1] | MOLDBOARD | LECSEMI-U MOLDBOARO (HSU) Superseded by part number: 79108080 |
| 2. | 8273530 | [12] | SCREW,Sq Hd, M20 x 1.5 x 72mm | LEC Superseded by part number: 8289500 |
| 3. | 8282270 | [16] | PLOW BOLT,Plow, M20 x 1.5 x 67mm, Cl 10.9 | LEC |
| 4. | 86015195 | [28] | NUT,M20 x 1.5, Cl 10 | RAC20x1.5x16 |
| 5. | 14497131 | [28] | WASHER,21mm ID x 37mm OD x 3mm Thk | LEC Superseded by part number: 140021 |
| 6. | 79094512 | [1] | CUTTING EDGE | LECEND BIT - LEFT |
| 7. | 79094511 | [1] | CUTTING EDGE | LECEND BIT - RIGHT |
| 8. | 8294271 | [1] | CUTTING EDGE | LEC Superseded by part number: 73117701 |
| 9. | 8294668 | [2] | CUTTING EDGE | LEC |
| 10. | 13407211 | [2] | LUBE NIPPLE,M10 x 1 | TTFNIPPLE, LUBE, M10 x 1 Superseded by part number: 84351730 |
