纽荷兰零件查询(FD14E) - CRAWLER DOZER (93.4700[001]) - TILT CYLINDER-FRONT IMPLEMENT (Jun 1 2009 11:04AM) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
181 次

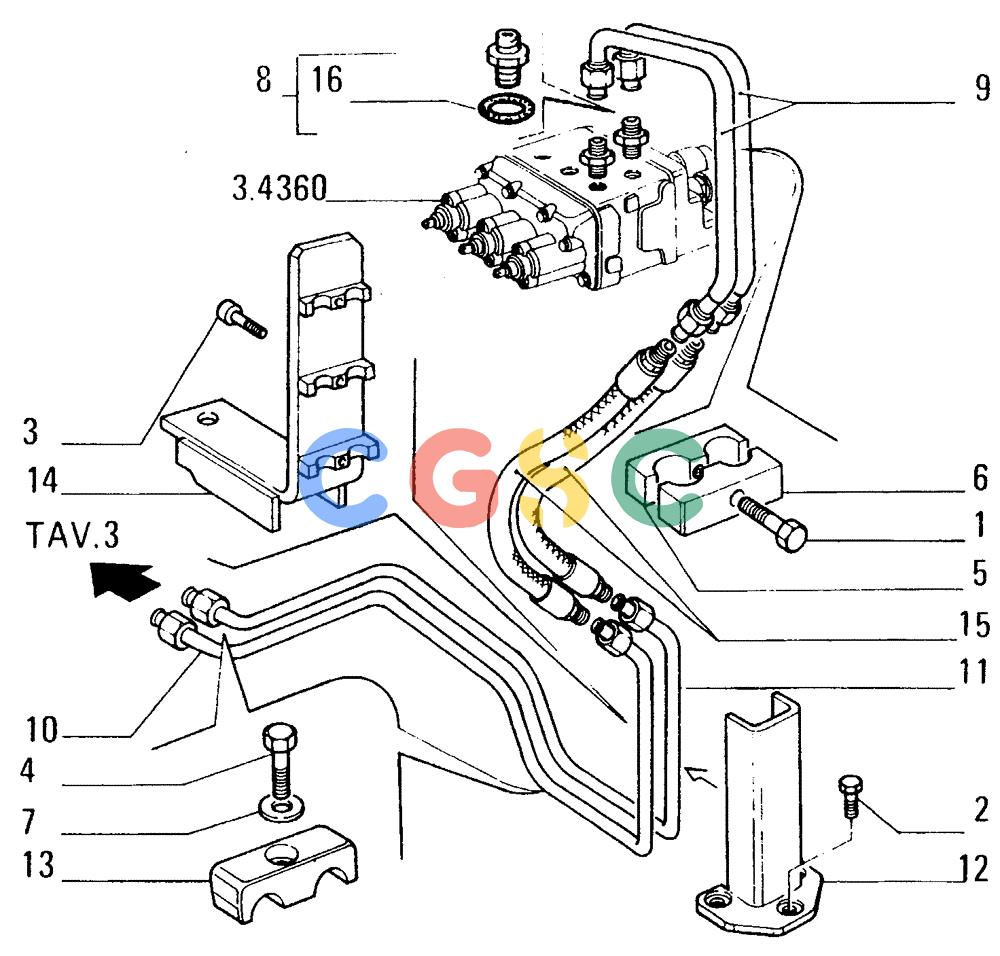

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 11106431 | [1] | SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd | LECSCREW 10x1.5x30 Superseded by part number: 9515003 |
| 2. | 11112231 | [3] | SCREW,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd | LECSCREW 12x1.75x22 Superseded by part number: 398792 |
| 3. | 14302831 | [3] | HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 10.9, Full Thd | LEC8x1,25x18 Superseded by part number: 14302837 |
| 4. | 16044031 | [2] | BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9 | LEC Superseded by part number: 9780069 |
| 5. | 45024498 | [1] | BRACKET | TORBLOCK |
| 6. | 45024537 | [1] | BRACKET | TORBLOCK |
| 7. | 79011527 | [2] | WASHER,8.6mm ID x 22mm OD x 5mm Thk | LEC |
| 8. | 79066945 | [2] | HYD CONNECTOR | LECFITTING - ASSEMBLY |
| 9. | 79080453 | [2] | RIGID TUBE | LECTUBE |
| 10. | 79081871 | [1] | RIGID TUBE | LECTUBE - FRONT |
| 11. | 79081873 | [1] | RIGID TUBE | LECTUBE - REAR |
| 12. | 79081875 | [1] | SUPPORT | LEC |
| 13. | 79082876 | [2] | BLOCK | LEC |
| 14. | 79081879 | [1] | GUARD | LEC |
| 15. | 79081883 | [2] | FLEXIBLE HOSE | LECHOSE |
| 16. | 14438185 | [1] | O-RING,24mm ID x 3mm | JES24MM ID x 3.0 Thk |
