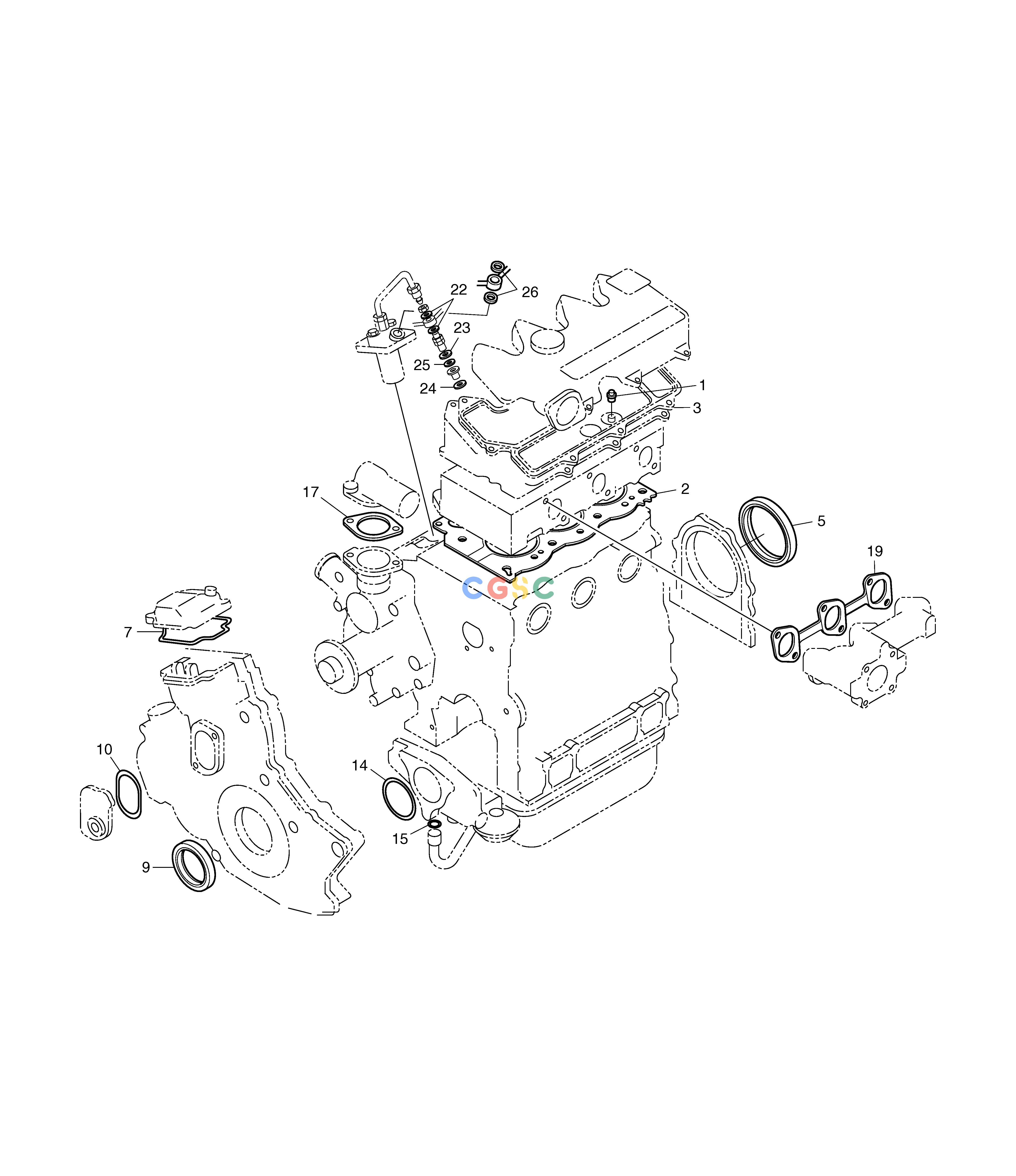

斗山零件查询REPAIR KIT SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
940 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
587814-0710
|
[1] |
REPAIR KIT
|
|
| 1. |
894110-5591
|
[6] |
SEAL;VALVE
|
|
| 10. |
897226-8421
|
[1] |
O-RING;COVER
|
|
| 14. |
897109-6790
|
[1] |
O-RING;OIL PUMP
|
|
| 15. |
109623-4960
|
[1] |
O-RING;OIL STRAINER
|
|
| 17. |
897264-6901
|
[1] |
PACKING;OUTLET PIPE
|
|
| 19. |
897047-0541
|
[1] |
GASKET;EXH MANIFOLD
|
|
| 2. |
897045-3932
|
[1] |
GASKET;CYL HEAD
|
|
| 22. |
894104-9930
|
[6] |
GASKET
|
|
| 23. |
894257-5920
|
[3] |
GASKET;NOZZLE HOLDER
|
|
| 24. |
894257-5930
|
[3] |
GASKET;HEAT SHIELD
|
|
| 25. |
894106-0403
|
[3] |
WASHER;CORRUGATED
|
|
| 26. |
894144-5880
|
[6] |
GASKET
|
|
| 3. |
897071-6991
|
[1] |
PACKING;CYL HEAD COVER
|
|
| 5. |
509625-0940
|
[1] |
SEAL;OIL CRANK REAR
|
|
| 7. |
897064-6881
|
[1] |
PACKING;COVER
|
|
| 9. |
509625-0790
|
[1] |
SEAL;OIL CRANK FRONT
|
|
