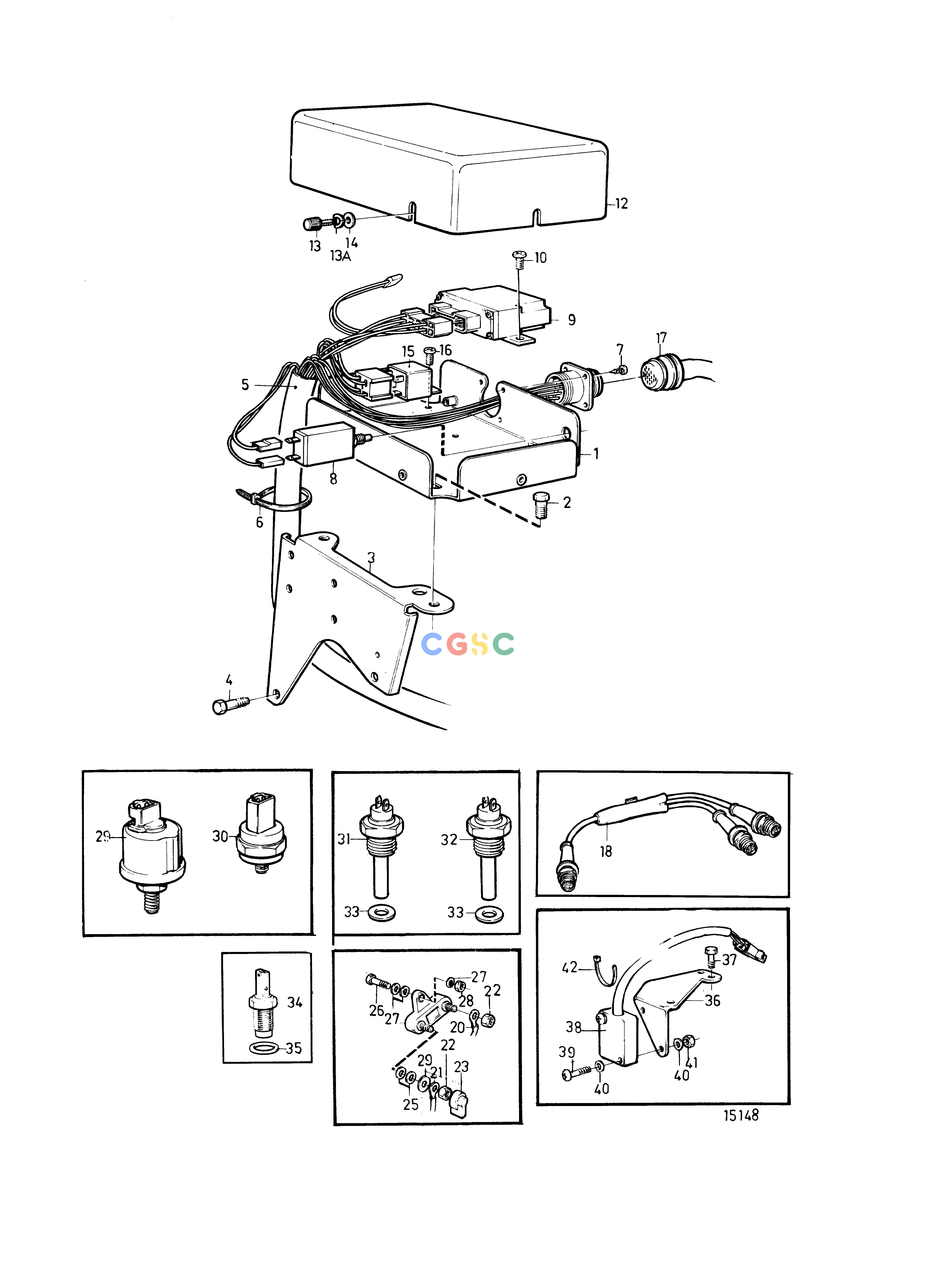

沃尔沃零件查询KAD42B; KAMD42B; TAMD42BElectrical SystemElectrical System: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
1010 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
860417
|
[1] |
Bracket
|
|
| 2. |
965175
|
[2] |
Flange screw
|
|
| 3. |
860611
|
[1] |
Bracket
|
|
| 4. |
947760
|
[1] |
Flange screw
|
L=40mm
|
| 4. |
948217
|
[1] |
Flange screw
|
L=45mm
|
| 5. |
873551
|
[1] |
Wiring harness
|
(873055)
|
| 6. |
948210
|
[1] |
Cable tie
|
|
| 7. |
955119
|
[4] |
Cross recessed screw
|
|
| 8. |
966689
|
[1] |
Fuse
|
|
| 9. |
872616
|
[1] |
Rotation speed relay
|
|
| 10. |
955138
|
[2] |
Cross recessed screw
|
|
| 11. |
955893
|
[1] |
Washer
|
|
| 12. |
860779
|
[1] |
Cover
|
|
| 13. |
846736
|
[3] |
Lock screw
|
|
| 13A. |
941904
|
[3] |
Spring washer
|
|
| 14. |
960137
|
[3] |
Washer
|
|
| 15. |
860339
|
[2] |
Relay
|
12V 50A
|
| 16. |
955138
|
[2] |
Cross recessed screw
|
|
| 17. |
846648
|
[1] |
Extension cable
|
L=3.0m
|
| 17. |
846649
|
[1] |
Extension cable
|
L=5.0m
|
| 17. |
846650
|
[1] |
Extension cable
|
L=7,0m
|
| 18. |
1140598
|
[1] |
Distributing contact
|
For double steering positions.
|
| 19. |
856355
|
[1] |
Fuse
|
|
| 20. |
|
|
|
Power trim
|
| 21. |
|
|
|
Power trim see group 44
|
| 22. |
955781
|
[2] |
Hexagon nut
|
|
| 23. |
1234326
|
[1] |
Protecting casing
|
|
| 24. |
960140
|
[1] |
Washer
|
|
| 25. |
955893
|
[2] |
Washer
|
|
| 26. |
947542
|
[1] |
Flange screw
|
|
| 27. |
955893
|
[3] |
Washer
|
|
| 28. |
945407
|
[1] |
Flange nut
|
|
| 29. |
866835
|
[1] |
Sensor, oil-engine
|
0-10BAR
|
| 29. |
866836
|
[1] |
Sensor, oil-engine
|
For double steering positions., Alt
|
| 30. |
863169
|
[1] |
Pressure monitor, oil-pressure
|
0,7bar
|
| 31. |
873066
|
[1] |
Thermo monitor, coolant temp.
|
97°C
|
| 32. |
827151
|
[1] |
Temperature sensor, coolant temp.
|
40-120°C
|
| 32. |
840074
|
[1] |
Temperature sensor
|
For double instruments., Alt
|
| 33. |
957181
|
[2] |
Gasket
|
|
| 34. |
862251
|
[1] |
Tachometer sensor
|
For revolution relay.
|
| 35. |
957181
|
[1] |
Gasket
|
|
| 36. |
860970
|
[1] |
Bracket
|
|
| 37. |
965175
|
[1] |
Flange screw
|
|
| 38. |
872597
|
[1] |
Position sensor
|
|
| 39. |
956050
|
[2] |
Cross recessed screw
|
|
| 40. |
955890
|
[4] |
Washer
|
|
| 41. |
966650
|
[2] |
Lock nut
|
|
| 42. |
948210
|
[1] |
Cable tie
|
|
