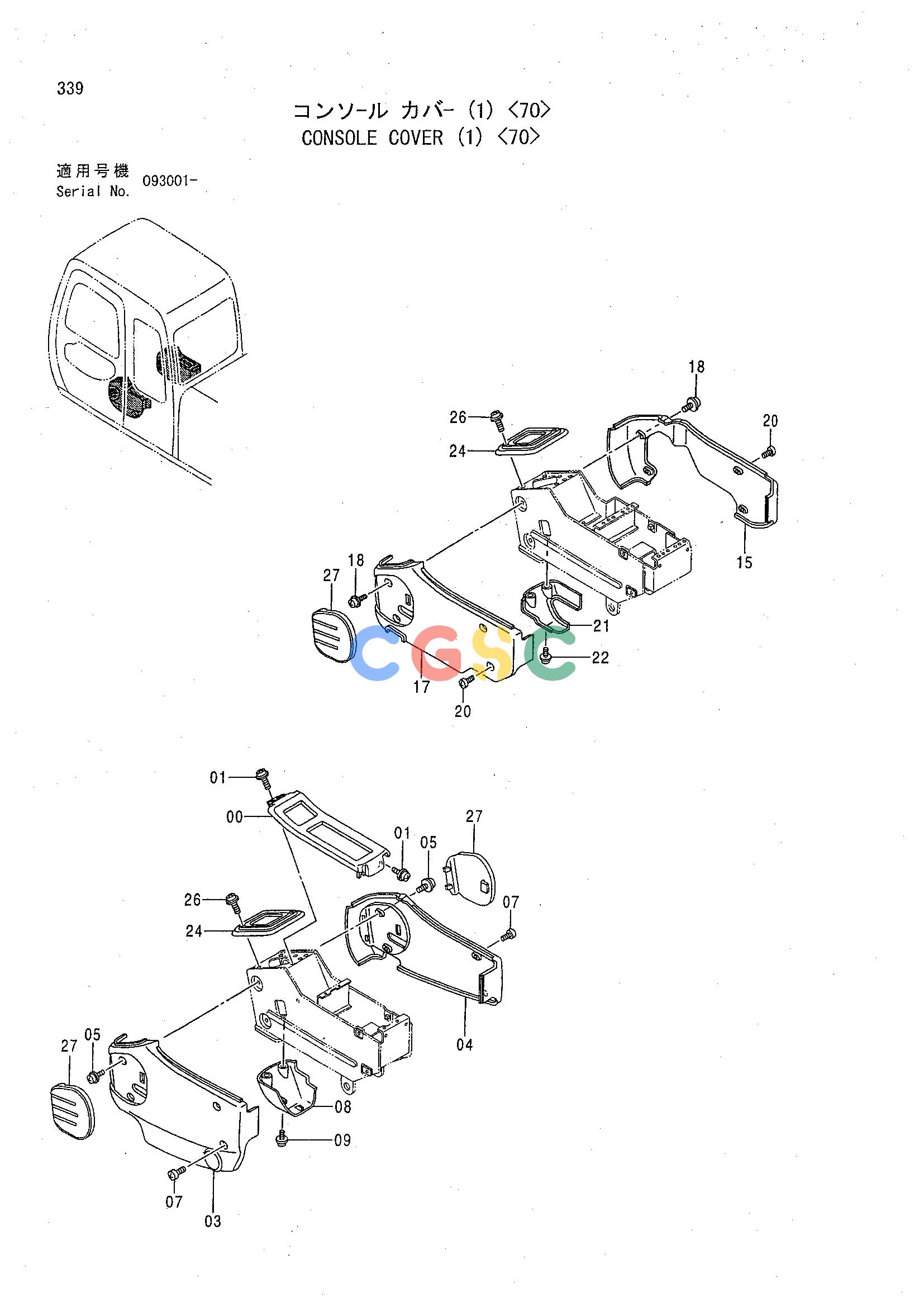

日立零件查询（CHR70）CONSOLE COVER (1) <70> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
211 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 1021354 | [1] | FRAME | |
| 01. | J680616 | [4] | SCREW;SEMS | |
| 03. | 1021345 | [1] | COVER | |
| 04. | 1021346 | [1] | COVER | |
| 05. | J680616 | [4] | SCREW;SEMS | |
| 07. | 4361802 | [4] | SCREW;TAPPING | |
| 08. | 3072629 | [1] | COVER | |
| 09. | J680616 | [2] | SCREW;SEMS | |
| 15. | 3077983 | [1] | COVER | |
| 17. | 1021349 | [1] | COVER | |
| 18. | J680616 | [4] | SCREW;SEMS | |
| 20. | 4361802 | [4] | SCREW;TAPPING | |
| 21. | 3077679 | [1] | COVER | |
| 22. | J680616 | [2] | SCREW;SEMS | |
| 24. | 2037689 | [2] | COVER | |
| 26. | J460635 | [8] | SCREW;SEMS | |
| 27. | 4351277 | [3] | PAD | |
