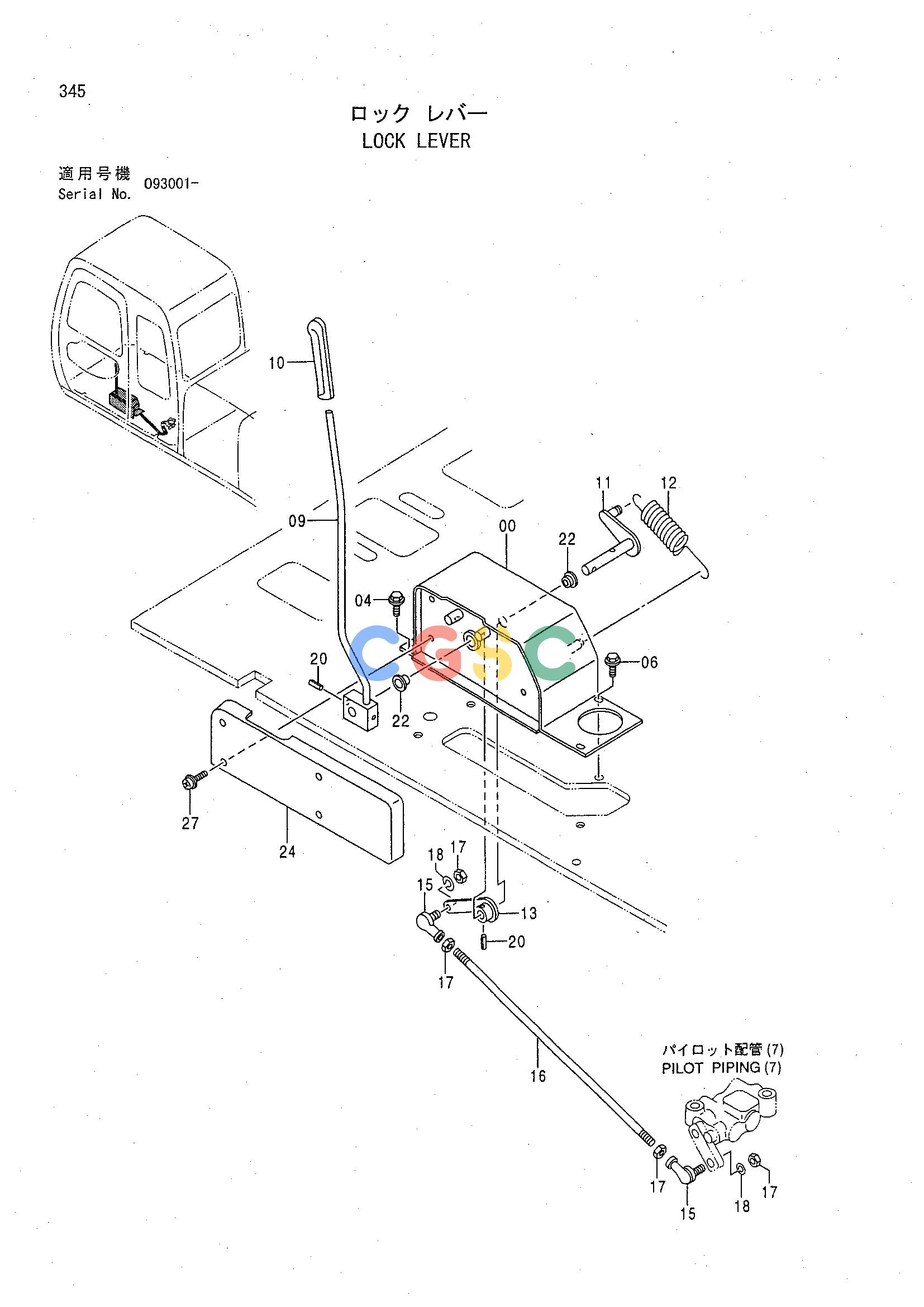

日立零件查询（CHR70）LOCK LEVER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
440 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 7029259 | [1] | BOX (L) | |
| 04. | J011025 | [2] | BOLT;SEMS | |
| 04. | J271025 | [2] | BOLT;SEMS | TJ901025 |
| 04. | J271025 | [2] | BOLT;SEMS | TJ222010 |
| 06. | J021025 | [2] | BOLT;SEMS | |
| 06. | J271025 | [2] | BOLT;SEMS | TJ901025 |
| 06. | J271025 | [2] | BOLT;SEMS | TJ222010 |
| 09. | 8061138 | [1] | LEVER;LOCK | |
| 10. | 3051611 | [1] | GRIP | |
| 11. | 8060886 | [1] | LINK | |
| 12. | 4189184 | [1] | SPRING;TENSION | |
| 13. | 9743595 | [1] | RINK | |
| 15. | 4056018 | [2] | JOINT;BALL | |
| 16. | 4259591 | [1] | ROD | |
| 17. | M500807 | [4] | NUT | |
| 18. | A590908 | [2] | WASHER;SPRING | |
| 20. | 4027427 | [2] | PIN;SPRING | |
| 22. | 4341810 | [2] | BUSHING | |
| 24. | 2037246 | [1] | COVER | |
| 27. | J680640 | [4] | SCREW;SEMS | |
