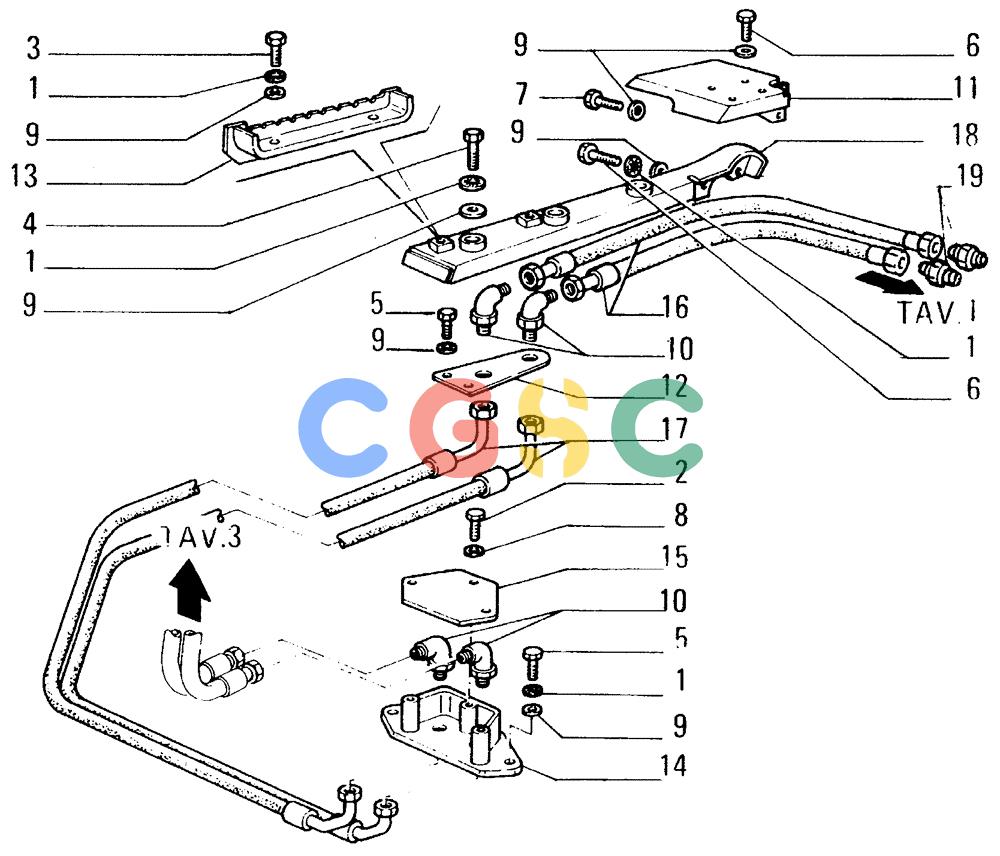

纽荷兰零件查询(FD14E) - CRAWLER DOZER (93.4810[002]) - HYDRAULIC TILT (HA)-PIPING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
347 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 10615879 | [9] | LOCK WASHER,Serr, M12 | LECWASHER, LOCK, Serr, M12 Superseded by part number: 10615870 |
| 2. | 11106034 | [3] | BOLT,Hex, M10 x 20, 10.9, Full Thd | BUR Superseded by part number: 11106031 |
| 3. | 11106234 | [2] | BOLT,Hex, M10 x 1.5 x 25 mm, Cl 10.9, Full Thd | BURSCREW Superseded by part number: 11106231 |
| 4. | 11113331 | [3] | SCREW,Hex, M12 x 55mm, Cl 10.9 | LEC Superseded by part number: 9503185 |
| 5. | 11112234 | [4] | BOLT,Hex, M12 x 25mm, Cl 10.9, Full Thd | LEC Superseded by part number: 11112231 |
| 6. | 11112434 | [10] | BOLT,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 11112431 |
| 7. | 12626231 | [2] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
| 8. | 14496631 | [3] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 9. | 14496731 | [17] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 10. | 79056754 | [4] | HYD CONNECTOR | LECFITTING |
| 11. | 79081434 | [1] | GUARD | LEC |
| 12. | 79084131 | [1] | PLATE | LEC |
| 13. | 79089245 | [2] | FOOTREST | LEC Superseded by part number: 76089488 |
| 14. | 79089753 | [1] | GUARD | LEC |
| 15. | 79089841 | [1] | COVER | LEC |
| 16. | 79097650 | [2] | FLEXIBLE HOSE | LECHOSE ASSY |
| 17. | 79089846 | [2] | FLEXIBLE HOSE | LECHOSE ASSY |
| 18. | 79089958 | [1] | GUARD | LEC |
| 19. | 79097654 | [2] | HYD CONNECTOR | LECFITTING |
