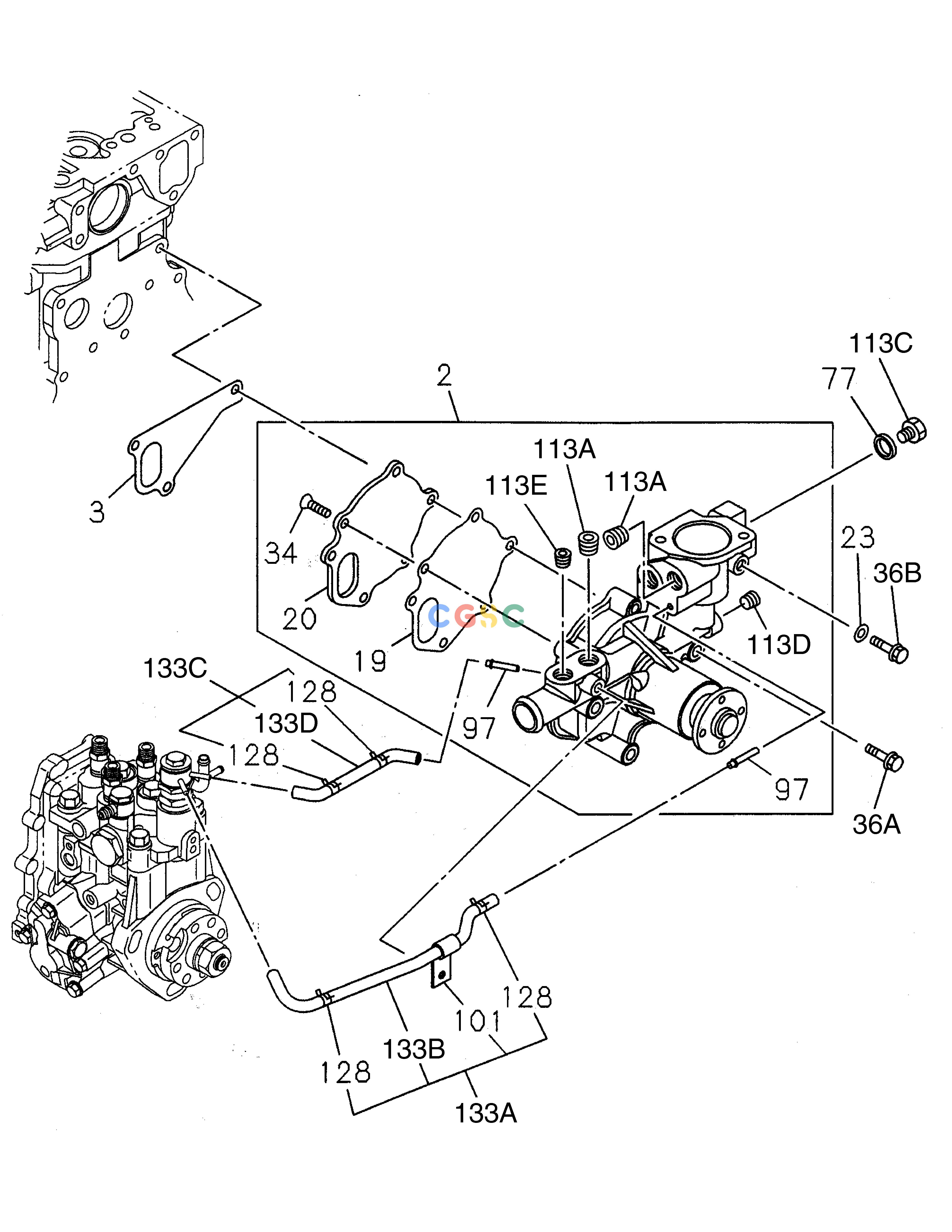

斗山零件查询WATER PUMP SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
583 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 101. |
586400-0810
|
[1] |
CLIP
|
|
| 113A. |
586400-3930
|
[2] |
PLUG
|
|
| 113C. |
586400-1020
|
[1] |
PLUG
|
|
| 113D. |
586400-2990
|
[1] |
PLUG PT=1/8
|
|
| 113E. |
586400-3000
|
[1] |
PLUG PT=1/4
|
|
| 128. |
586400-1220
|
[4] |
CLIP
|
|
| 133A. |
586400-1530
|
[1] |
HOSE ASS'Y
|
|
| 133B. |
586400-1550
|
[1] |
HOSE
|
|
| 133C. |
586400-1540
|
[1] |
HOSE ASS'Y
|
|
| 133D. |
586400-1560
|
[1] |
HOSE
|
|
| 19. |
586400-1780
|
[1] |
GASKET;COVER
|
|
| 2. |
586400-3910
|
[1] |
WATER PUMP
|
|
| 20. |
586400-1790
|
[1] |
COVER;WATER PUMP
|
|
| 23. |
586400-2970
|
[1] |
WASHER
|
|
| 3. |
586400-2460
|
[1] |
GASKET;PUMP
|
|
| 34. |
586400-1060
|
[3] |
SCREW;COVER
|
|
| 36A. |
586400-3290
|
[3] |
BOLT M8X60
|
|
| 36B. |
586400-3170
|
[1] |
BOLT M8X12
|
|
| 77. |
586400-1210
|
[1] |
GASKET
|
|
| 97. |
586400-3920
|
[2] |
PIPE
|
|
