纽荷兰零件查询(FD14E) - CRAWLER DOZER (93.4810[004]) - HYDRAULIC TILT (HA)-STRUTS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
760 次

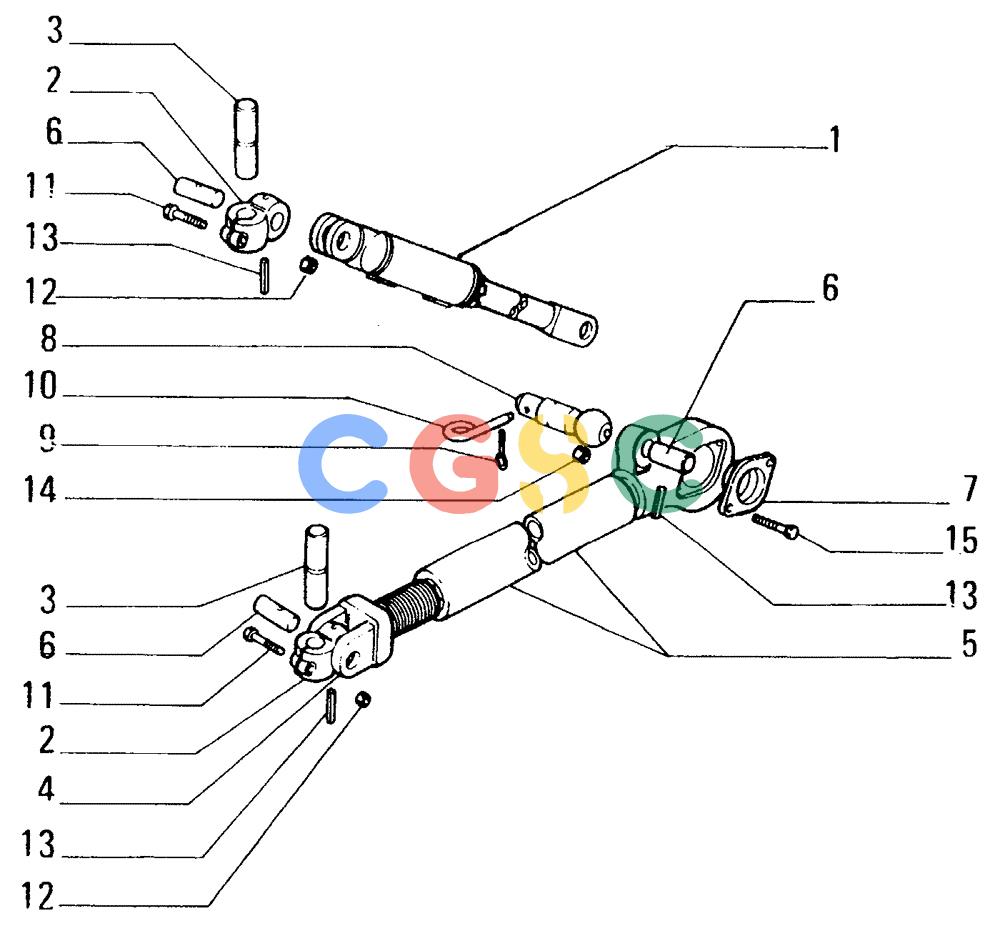

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76016714 | [1] | CYLINDER | LECTILT CYLINDER - ASSEMBLY SEE TAV-6 |
| 2. | 8298171 | [2] | HYD CONNECTOR | LECQUICK COUPLING |
| 3. | 8294275 | [2] | PIN | LEC Superseded by part number: 76033002 |
| 4. | 8293413 | [1] | TIE-ROD | LECEND - IN ALTERNATIVE |
| 4. | 76001889 | [1] | TRACK ROD END ASSY | LECEND - IN ALTERNATIVE Superseded by part number: 8293413 |
| 5. | 8298162 | [1] | STRUT | LEC |
| 6. | 8298172 | [3] | PIN,40mm OD x 108mm L | LEC |
| 7. | 8273262 | [2] | FLANGE | LEC |
| 8. | 8293416 | [1] | PIN,68mm OD x 265mm L | LEC |
| 9. | 5112606 | [1] | COTTER PIN | TTF |
| 10. | 8293417 | [1] | ROLL PIN | LECPIN Superseded by part number: 75269053 |
| 11. | 11117034 | [2] | BOLT,Hex, M14 x 90mm, Cl 10.9 | LEC14x2x90 Superseded by part number: 11117031 |
| 12. | 12577321 | [2] | LOCK NUT,M14 x 2, Cl 10 | LECNUT, LOCK, M14 x 2, Cl 10 |
| 13. | 13920770 | [3] | ROLL PIN,M12 x 80, Coiled | LECSPRING PIN 12,5x80 |
| 14. | 11702921 | [2] | NUT,M12, Cl 10 | LEC Superseded by part number: 17038425 |
| 15. | 11113834 | [2] | BOLT,Hex, M12 x 80, 10.9, Full Thd | BURSCREW 12x1,75x80 Superseded by part number: 11113831 |
