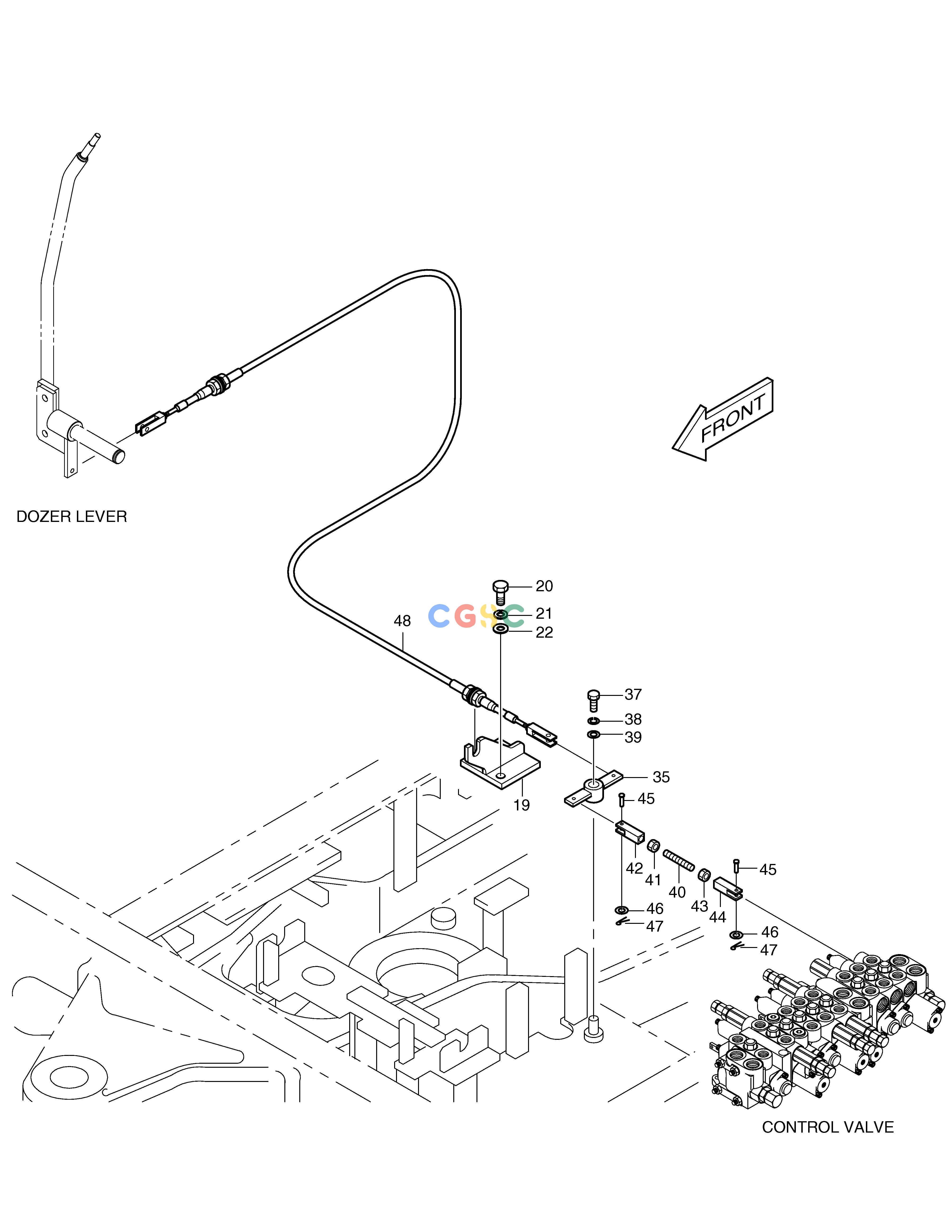

斗山零件查询CONTROL LEVER - DOZER SOLAR 030PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
914 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2133-2119
|
[-] |
DOZER LEVER ASS'Y
|
|
| 19. |
2197-1215B
|
[1] |
BRACKET;LINK
|
|
| 20. |
S0512053
|
[2] |
BOLT
|
|
| 21. |
S5102603
|
[2] |
. WASHER
|
|
| 22. |
S5010613
|
[2] |
WASHER
|
|
| 35. |
2137-1187B
|
[1] |
LINK
|
|
| 37. |
S0509053
|
[1] |
. BOLT
|
|
| 38. |
S5102503
|
[1] |
. WASHER
|
|
| 39. |
2114-1058D59
|
[1] |
WASHER
|
|
| 40. |
2136-1449
|
[1] |
ROD
|
|
| 41. |
2121-1298
|
[1] |
NUT(L.H)
|
|
| 42. |
2138-1032
|
[1] |
END;ROD(L.H)
|
|
| 43. |
S4012633
|
[1] |
NUT
|
|
| 44. |
2138-1033
|
[1] |
END;ROD(L.H)
|
|
| 45. |
2123-2093
|
[3] |
PIN
|
|
| 46. |
S5000213
|
[3] |
. WASHER
|
|
| 47. |
S5735051
|
[3] |
PIN;SPLIT
|
|
| 48. |
139-00042
|
[1] |
CABLE;CONTROL
|
|
