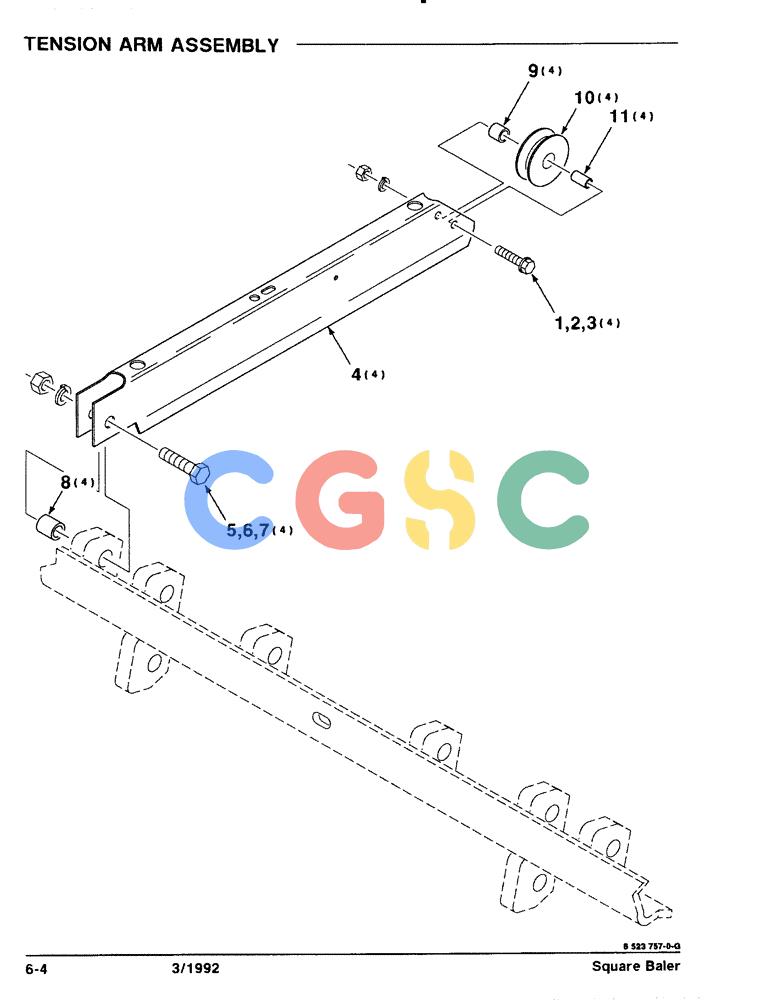

凯斯零件查询(8570) - CASE IH MID-SIZE RECTANGULAR BALER (1/91-12/96) (6-04) - TENSION ARM ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
352 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
771345
|
[4] |
SCREW,Hex, #10 - 24 x 1"
|
CAS
#10 - 24 X 1 HWHMS Superseded by part number: 363-31016
|
| 2. |
705004
|
[4] |
LOCK WASHER
|
CAS
#10 L Superseded by part number: 80684
|
| 3. |
704072
|
[4] |
NUT
|
CAS
10-24 H GR2 Superseded by part number: 225-14110, 225-14110, NLS
|
| 4. |
6523765
|
[4] |
ARM
|
CAS
- TENSION Superseded by part number: 700150609
|
| 5. |
7706768
|
[4] |
5/16-18 X 1-1/4 C
|
DRIVE BUSHING,38.25mm ID x 47.74mm OD x 36.1mm L
|
| 6. |
705020
|
[4] |
LOCK WASHER
|
CAS
5/16" Superseded by part number: 492-11031, 492-11031, NLS
|
| 7. |
704015
|
[4] |
NUT,5/16"-18, G5
|
CAS
5/16-18 H Superseded by part number: 425-105, 425-105, 9635082
|
| 8. |
6523799
|
[4] |
BUSHING
|
CAS
- TENSIONER
|
| 9. |
7849656
|
[4] |
SLEEVE
|
CAS
- ROLLER
|
| 10. |
6529945
|
[4] |
ROLLER
|
CAS
|
| 11. |
7849110
|
[4] |
BUSHING,5.23mm ID x 6.99mm OD x 13.49mm L
|
CAS
BUSHING - ROLLER
|
